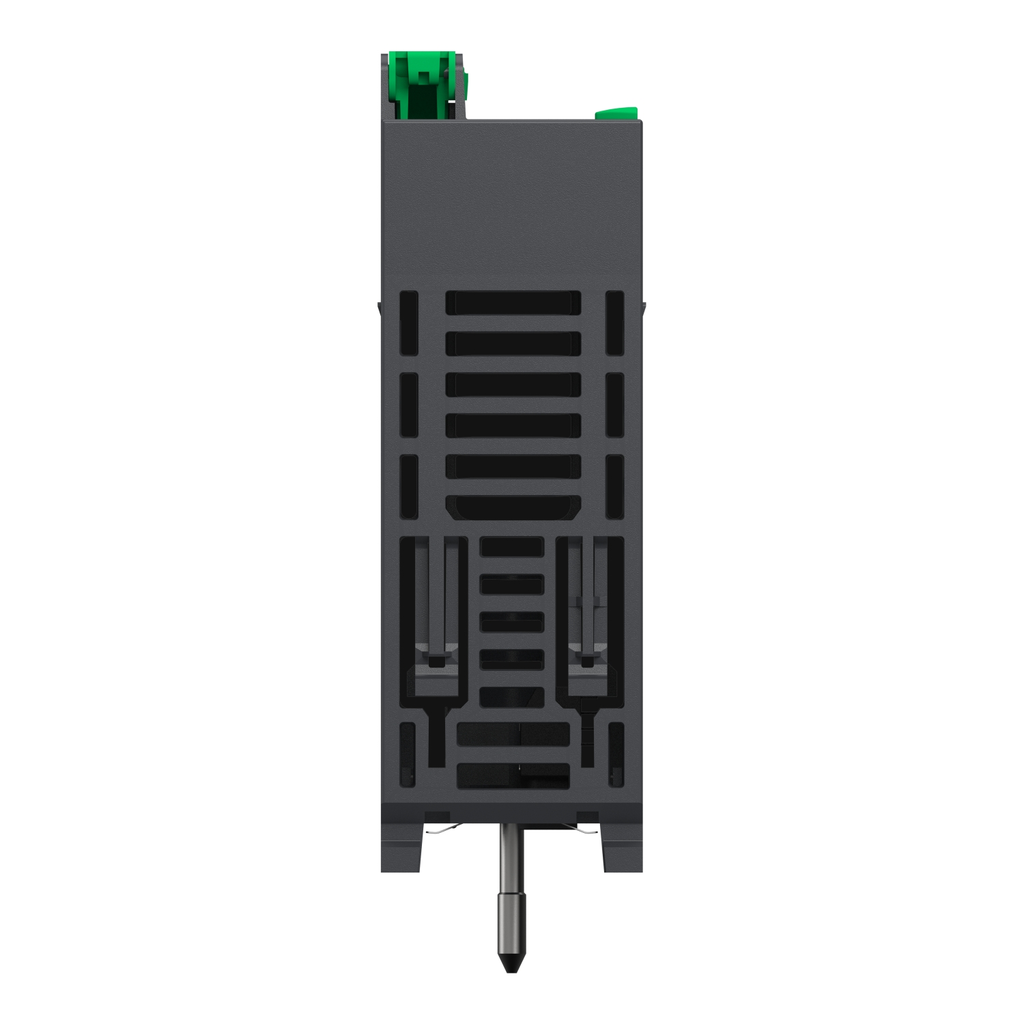

Ethernet TCP/IP network module, Modicon M580, dedicated for Global Data service

Ethernet TCP/IP network module, Modicon M580, dedicated for Global Data service

SQDBMXNGD0100 BMXNGD0100 360648091166
0.00 / EA
  • Current: 90 mA
  • Net Weight: 0.2 kg
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet TCP/IP network module is dedicated for global data service. It is a network module with a current consumption of 90mA at 24V DC. It has reset push-button cold control. This product is robust, high quality and based on the latest innovative technology. Communication services are global data, Modbus TCP messaging and security. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. It is supplied with flash memory card (BMXRWSC016M). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Specifications
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet TCP/IP network module is dedicated for global data service. It is a network module with a current consumption of 90mA at 24V DC. It has reset push-button cold control. This product is robust, high quality and based on the latest innovative technology. Communication services are global data, Modbus TCP messaging and security. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. It is supplied with flash memory card (BMXRWSC016M). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Specifications
    • Integrated Connection Type : Ethernet RJ45 10/100 Mbit/s 1 twisted pair
    • Range Of Product : Modicon M580
    • Product Or Component Type : Ethernet TCP/IP network module
    • Protective Treatment : TC
  • Complementary
    • Communication Service : Global Data || Modbus TCP messaging || security
    • Local Signalling : for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for data rate (ETH 100) 1 LED (red) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red)
    • Supply : internal power supply via rack
    • Current Consumption : 90 mA 24 V DC
    • Module Format : standard
    • Port Ethernet : 10BASE-T/100BASE-TX
    • Marking : CE
    • Net Weight : 0.2 kg
    • Memory Description : supplied Flash memory card (BMXRWSC016M)
    • Control Type : RESET push-button cold restart
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Relative Humidity : 10-95 % without condensation
    • Ip Degree Of Protection : IP20
