EMC radio interference input filter - for variable speed drive

EMC radio interference input filter - for variable speed drive

SQDVW3A4416 VW3A4416 3606480075773
220.94 / EA
http://schema.org/OutOfStock

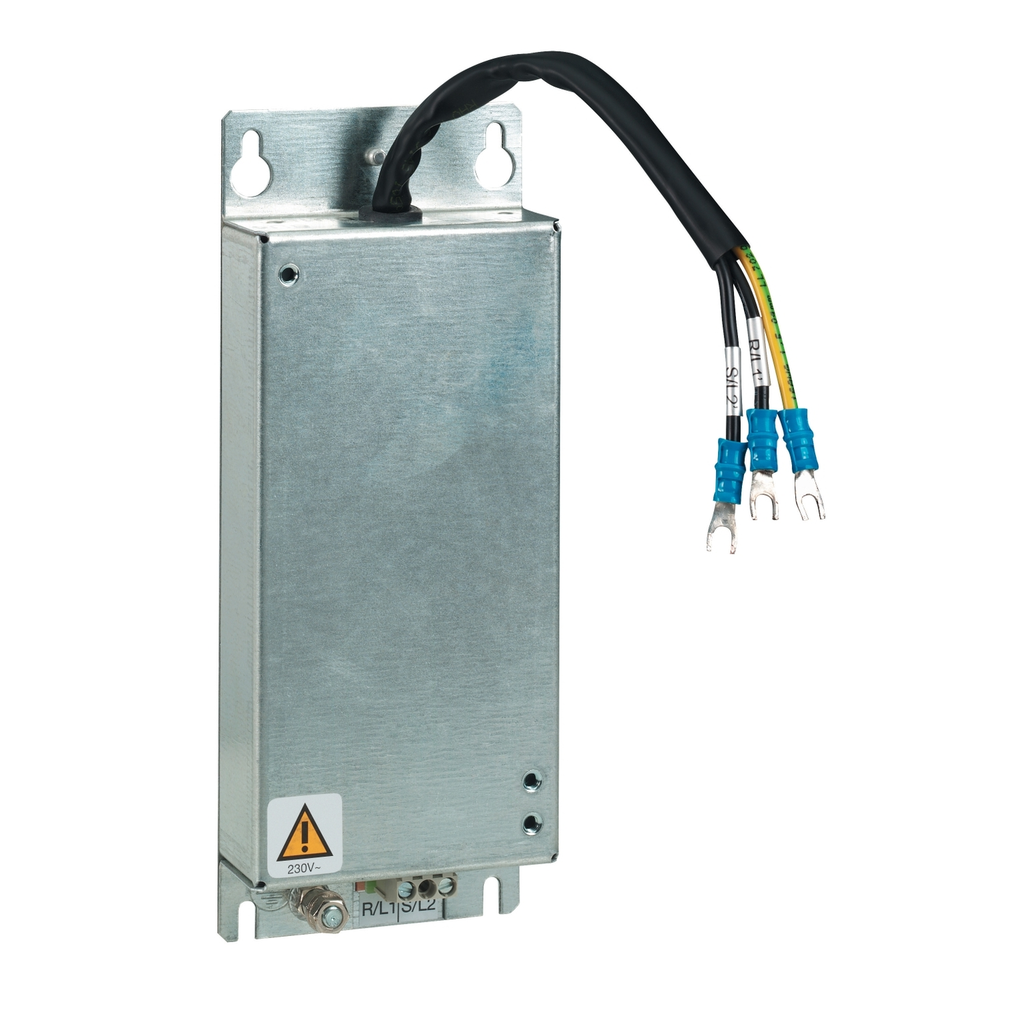

Mayer-DDS-EMC radio interference input filter - for variable speed drive-1
  • Warranty Length: 18 mth
This EMC input filter is an option for variable speed drives of Altivar 12 range. This EMC filter enables your drive to be in compliance with electromagnetic compatibility requirements. Its dimensions are 75mm wide, 194mm high, and 30mm deep. It provides extra protection against electromagnetic emissions. The choice of the filter depends on the drive rating. It weighs 1.120kg. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). Choosing the proper EMC filter on the drive rating. The product is delivered in one package. The drive is fixed onto the filter with 2 screws. The ATV12 range meets basic machine requirements united with simplicity.
QTY
  • Product Description
  • Features
  • Specifications
This EMC input filter is an option for variable speed drives of Altivar 12 range. This EMC filter enables your drive to be in compliance with electromagnetic compatibility requirements. Its dimensions are 75mm wide, 194mm high, and 30mm deep. It provides extra protection against electromagnetic emissions. The choice of the filter depends on the drive rating. It weighs 1.120kg. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). Choosing the proper EMC filter on the drive rating. The product is delivered in one package. The drive is fixed onto the filter with 2 screws. The ATV12 range meets basic machine requirements united with simplicity.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Standards : environment 1 category C2 IEC 61800-3, environment 1 category C3 IEC 61800-3, environment 2 category C3 IEC 61800-3
  • Important Information Attributes
    • Medium Desc : EMC radio interference input filter - for variable speed drive
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : EMC input filter
    • Product Specific Application : radio interference input filter
    • Range Of Product : Altivar
    • Returnability : Yes
    • Sustainable Packaging : No
  • Environment Attributes Main
    • Product Compatibility : ATV12H018F1, ATV12H018M2, ATV12H037F1, ATV12H037M2, ATV12H055M2, ATV12H075M2, ATV12P037F1, ATV12P037M2, ATV12P055M2, ATV12P075M2
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : EMC input filter
    • Range Of Product : Altivar
  • ETIM
    • ETIM 8 : EC002025
    • ETIM 9 : EC002025
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
