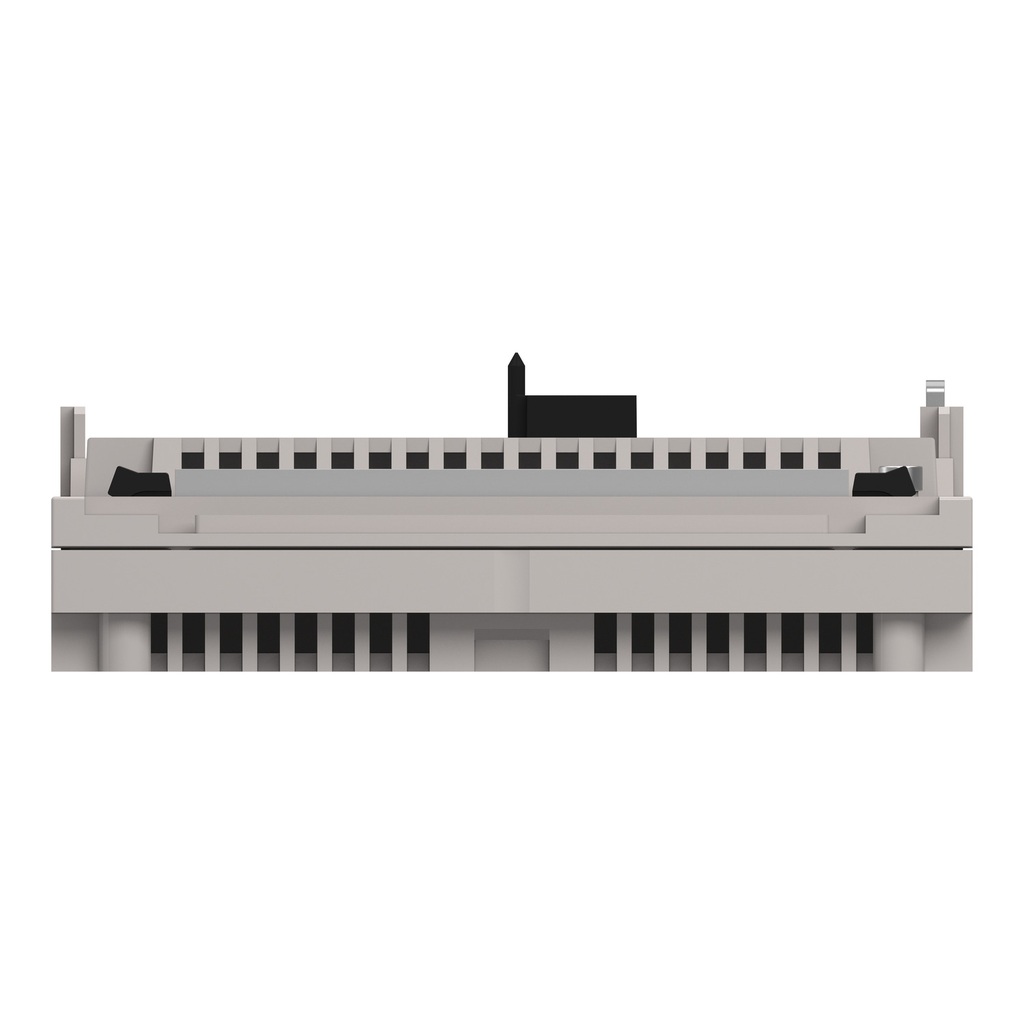

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

• Features
• 12ms conversion time
• Internal reverse polarity protection
• 2 removable terminal blocks of electrical connection
• CE approved
• CSA, UL and FM Class 1 Division 2 certified
• Complies with EN 50081-2 and IEC 1131 standards
• Wide range of operating temperature from 0°C to 60°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Common Mode Rejection : > 80 dB between channels to ground, > 80 dB between channels to ground, > 80 dB, > 80 dB, > 80 dB between channels to ground, > 80 dB between channels to ground
• Electrical Connection : 2 connectors for removable terminal blocks, 2 removable connectors
• External Power Requirement : < 382 mA DC, < 382 mA DC< 382 mA DC, < 382 mA DC, 20.4...28.8 V DC, 24 V DC
• Isolation Between Channels : +/- 200 V, +/- 200 V
• Certificate Agency : FM Class 1 Division 2, CSA, UL
• Carbon Footprint Of The Distribution Phase A4 : 0.1194636265917277, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.49481732134226175, 0.5 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.2196800274767913
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 129 kg CO2 eq., 129.1558322294498
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 141 kg CO2 eq., 141.10219037035654
• Local Data Status : Publishable
• Local Publishable Date : 2026-07-27
• Return Indicator : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1403005EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 4
• Tier : 4
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Bearing Track Assembly Possible : true
• Conversion Time : 12 ms 8
• Data Format : full 16 bits signed
• Front Installation Possible : true
• Isolation Between Channels And Bus : 500 V AC
• Isolation Between Channels And Ground : 500 V AC
• Local Signalling : 1 LED green ready8 LEDs channel status
• Marking : CE
• Network Type : DC
• Permissible Common Mode Voltage : 100 V 47...63 Hz DC between channels to ground250 V 47...63 Hz AC between channels to ground
• Power Consumption In W : 1.1 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : analogue input base
• Protective Treatment : TC
• Radio Standard Bluetooth : false
• Radio Standard Gprs : false
• Radio Standard Gsm : false
• Radio Standard Umts : false
• Range Of Product : Modicon Momentum automation platform
• Returnability : Yes
• Reverse Polarity Protection : internal
• Software Version : v6.2.5-6
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 271 kg CO2 eq.
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Dc Supply Voltage : 24-24 V
• Fieldbus Connection Over Separate Bus Coupler Possible : true
• System Accessory : true
• Database Version : 2024-01
• Data Source : extrapolated product
• Height Nominal : 125 mm
• Width Nominal : 141.5 mm
• Supporting Protocol For Ethernet/Ip : false
• Supporting Protocol For Tcp/Ip : false
• Wall Mounting/Direct Mounting Possible : true
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8538908180
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Io Link Master Present : false
• Performance Level According To En Iso 13849 1 : none
• Rack Assembly Possible : true
• Radio Standard Wi Fi 802.11 : false
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Interbus Safety : false
• Warranty In Months : 18
• Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 4
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 271.09198357521717
• Ambient Air Temperature For Operation : 0-60 °C
• Ambient Air Temperature For Storage : -40-85 °C-40-85 °C
• Circularity Profile : ENVEOLI1403005EN
• Environmental Disclosure : ENVPEP1403005EN
• Eu Rohs Directive : Compliant By Exemption
• Operating Altitude : <= 16404.2 ft (5000 m)<= 16404.2 ft (5000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 % without condensation
• Pep Code : ENVPEP1403005EN
• Pep Verification Date : 2026-07-28
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : analogue input base
• Range Of Product : Modicon Momentum automation platform
• ETIM
• ETIM 8 : EC001596
• ETIM 9 : EC001596
• ETIM 10 : EC001596
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Resolution : 14 bits + sign +/- 20 mA15 bits + sign 4...20 mA, 14 bits + sign +/- 10 V, 14 bits + sign +/- 5 V, 15 bits + sign 1...5 V, 12 bits
• Analogue Input Type : differential +/-20 mA, differential 4...20 mA, differential +/- 10 V, differential +/- 5 V, differential 1...5 V, differential +/- 20 mA
• Input Impedance : > 0.1 kOhm250 kOhm, > 0.1 kOhm
• Analogue Input Number : 8
• Specifications
• Country of Origin : Indonesia
• Weight : 400 g
• Depth : 47.5 mm
