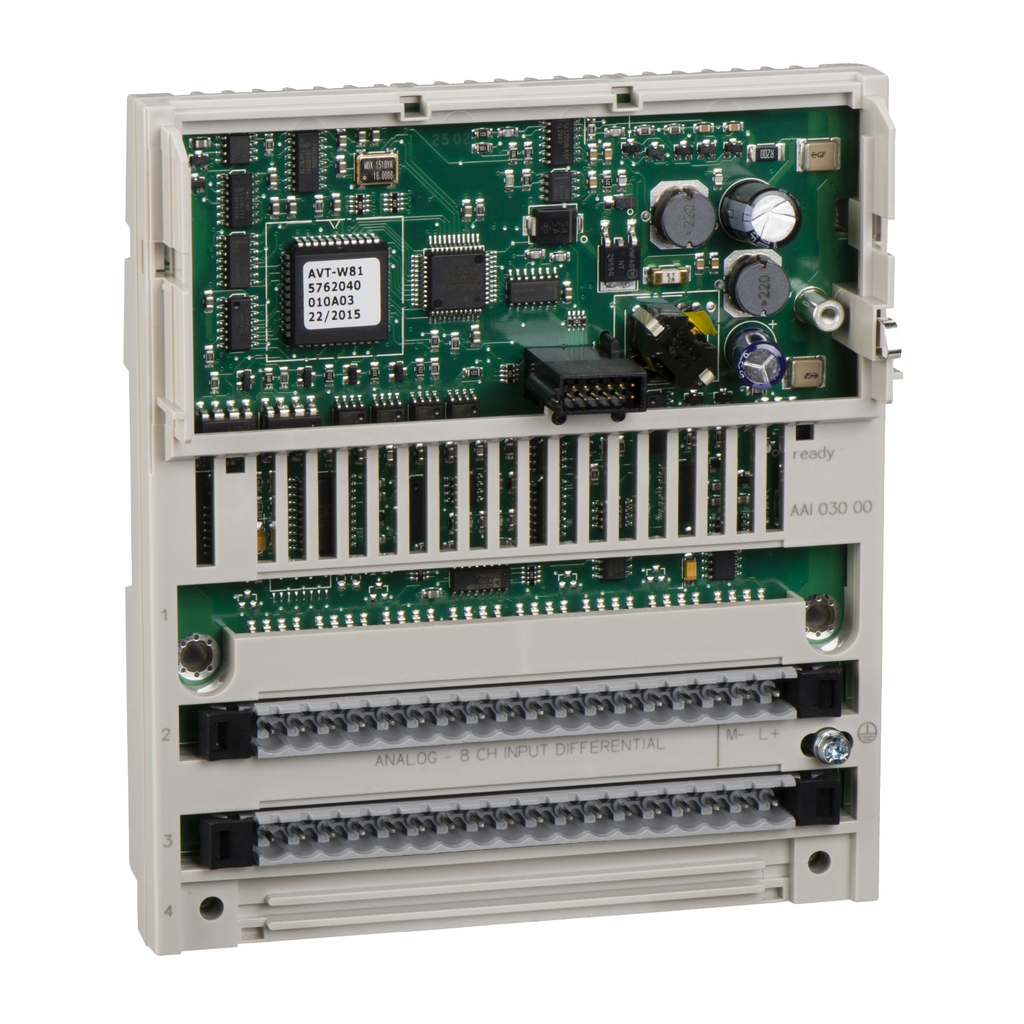

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 4 inputs with a full 16bit signed resolution. It offers differential analog input ra

• Current Consumption
• 305 mA 24 V DC
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=AAI5204W&p_File_name=AAI5204W.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=AAI5204W&p_File_name=AAI5204W.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ADI3400R&p_File_
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Electrical Connection
• 2 connectors for removable terminal blocks
• Thermocouple Type
• thermocouple E
• thermocouple S
• thermocouple K
• thermocouple N
• thermocouple B
• thermocouple R
• thermocouple J
• thermocouple T
• Protection Type
• internal 2 A slow-blow
• Accessories
• 170XTS00100
• 170XTS00200
• Common Mode Rejection
• 120 dB DC between channels
• 130 dB 50 Hz AC between channels
• 135 dB DC between channels to ground
• 135
• Isolation Between Channels And Ground
• 500 V AC for 1 minute
• Persona Type Names
• End User
• OEM - Control Panelbuilder
• System Integrator
• Relative Humidity
• 95-95 % without condensation
• Persona Type Ids
• EU
• OM8
• SI
• Permissible Common Mode Voltage
• 100 V DC between channels to ground
• 115 V AC single or three phases between channels
• Resistance To Electrostatic Discharge
• 4 kV contact IEC 801-2
• 8 kV on air IEC 801-2
• Isolation Between Supply And Ground
• 500 V for 1 minute
• External Power Requirement
• +/- 30 V DC
• Temperature Probe Type
• Ni 100 0.125 mA +/- 25 mV
• Ni 1000 0.125 mA +/- 100 mV
• Pt 100 0.125 mA +/- 25 mV
• Pt 1000 0.125
• Analogue Input Range
• +/- 100 mV 15 bits + sign > 10000 kOhm
• +/- 25 mV 15 bits + sign > 10000 kOhm
• Resistance To Electromagnetic Fields
• 10 V/m 80...1000 MHz IEC 801-3
• Serial Mode Rejection
• 35 dB 50 Hz AC
• 45 dB 60 Hz AC
• Associated Fuse Rating
• 500 mA, fast blow
• Local Signalling
• 4 LEDs for channel status

• Complementary Attributes
• Maximum Power Dissipation In W : 5.5 W
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/10/2025
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1403005EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2438
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 4
• Tier : 4
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Isolation Between Channels : 400 V DC
• Package Weight Lbs : 380.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : analogue input base
• Range Of Product : Modicon Momentum automation platform
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1403005EN
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : analogue input base
• Range Of Product : Modicon Momentum automation platform
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=696896&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI1403005EN
• Environmental Disclosure : ENVPEP1403005EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1403005EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
