distributed analog/discrete I/O Modicon Momentum

4 AI/2 AO 4 DI/2 DO

SQD170AMM09000 170AMM09000 3595861000292
1734.25 / EA
http://schema.org/OutOfStock

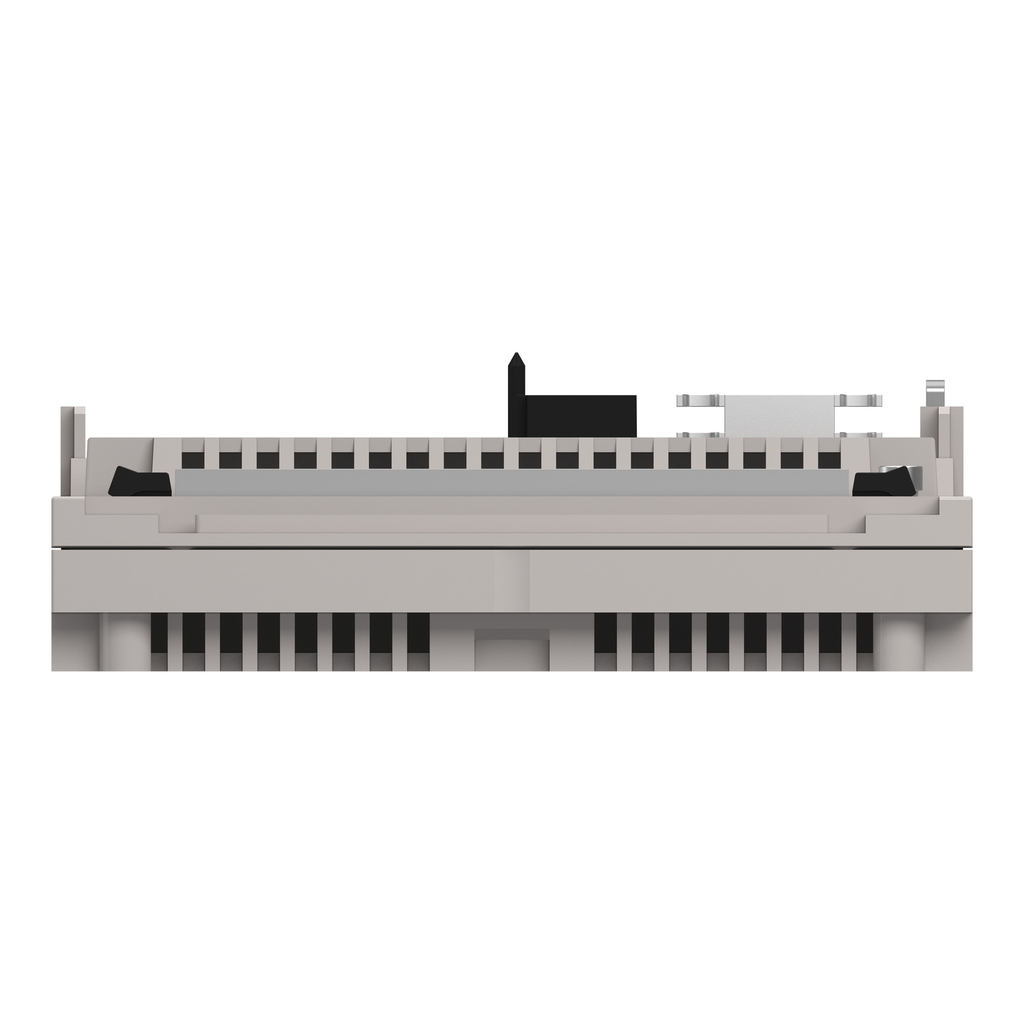

Mayer-DDS-distributed analog/discrete I/O Modicon Momentum-2
  • Warranty Length: 18 mth
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL, CSA, FM Class 1 Division 2
  • Complementary Attributes
    • Maximum Voltage Drop : <0.5 V 1 A at state on discrete output, <0.5 V 1 A at state on discrete output, <0.5 V 1 A at state on discrete output, <0.5 V 1 A at state on discrete output
    • Maximum Leakage Current : 1 mAdiscrete output
    • Maximum Power Dissipation In W : 6 W
    • US Rated Supply Voltage : 24 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Common Mode Rejection : > 54 dB analogue input circuit, > 54 dB analogue input circuit
    • Conversion Consistency : +/- 0.02 % +/- 10 V analogue input circuit, +/- 0.02 % +/- 10 V analogue input circuit, +/- 0.02 % +/- 10 V analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % 1...5 V analogue input circuit, +/- 0.04 % 1...5 V analogue input circuit, +/- 0.04 % 1...5 V analogue input circuit, +/- 0.04 % 4...20 mA analogue input circuit, +/- 0.04 % 4...20 mA analogue input circuit, +/- 0.04 % 4...20 mA analogue input circuit
    • Conversion Error : +/- 0.35 % +/- 10 V 25 °C analogue output, +/- 0.35 % +/- 10 V 25 °C analogue output, +/- 0.35 % +/- 10 V 25 °C analogue output, +/- 0.35 % +/- 10 V 25 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.70 % 0...20 mA 60 °C analogue output, +/- 0.70 % 0...20 mA 60 °C analogue output, +/- 0.70 % 0...20 mA 60 °C analogue output, +/- 0.70 % 0...20 mA 60 °C analogue output, 0,0008 +/- 10 V 25 °C analogue input circuit, 0,0015 +/- 10 V 60 °C analogue input circuit, 0,0016 +/- 20 mA 25 °C analogue input circuit, 0,0016 +/- 5 V 25 °C analogue input circuit, 0,0016 1...5 V 25 °C analogue input circuit, 0,0016 4...20 mA 25 °C analogue input circuit, 0,003 +/- 20 mA 60 °C analogue input circuit, 0,003 +/- 5 V 60 °C analogue input circuit, 0,003 1...5 V 60 °C analogue input circuit, 0,003 4...20 mA 60 °C analogue input circuit
    • Conversion Time : <= 1 ms analog output, <= 1 ms analog output, 10 ms analogue input circuit
    • Current Consumption : <= 350 mA 24 V DC, <= 350 mA 24 V DC, <= 350 mA 24 V DC, 200 mA 24 V DC
    • Current State 0 Guaranteed : <= 1.2 mA discrete input), <= 1.2 mA discrete input)
    • Current State 1 Guaranteed : >= 2.5 mA discrete input), >= 2.5 mA discrete input)
    • Fail State : analogue input circuit hold, analogue input circuit reset to zero
    • Isolation Voltage : 500 V 1 min) between analogue I/O and operating voltage, 500 V 1 min) between operating voltage and I/O from ground
    • Operating Rate : 100 cyc/s resistive 1 A discrete output, 1000 cyc/h inductive 1 A discrete output, 8 cyc/s tungsten <2.4 W discrete output
    • Response Time : < 0.1 ms from state 0 to state 1 discrete output, < 0.1 ms from state 0 to state 1 discrete output, < 0.1 ms from state 0 to state 1 discrete output, < 0.1 ms from state 1 to state 0 discrete output, < 0.1 ms from state 1 to state 0 discrete output, < 0.1 ms from state 1 to state 0 discrete output, 2.2 ms from state 0 to state 1 discrete input, 3.3 ms from state 1 to state 0 discrete input
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403005EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Bearing Track Assembly Possible : false
    • Front Installation Possible : false
    • IO Link Master Present : false
    • Local Signalling : 8 LEDs for channel status
    • Network Type : DC
    • Package Weight Lbs : 412.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : analogue,discrete I/O base
    • Rack Assembly Possible : false
    • Radio Standard Bluetooth : false
    • Radio Standard GPRS : false
    • Radio Standard GSM : false
    • Radio Standard UMTS : false
    • Range Of Product : Modicon Momentum automation platform
    • Returnability : Yes
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : false
    • Sustainable Packaging : No
    • Wall Mounting Direct Mounting Possible : false
    • Relationship Type : Compatible relationship
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • DC Supply Voltage : 24-24 V
    • Digital Outputs Configurable : false
    • Fieldbus Connection Over Separate Bus Coupler Possible : false
    • Radio Standard Wi Fi 802 11 : false
    • Supporting Protocol For Interbus Safety : false
    • Pep Code : ENVPEP1403005EN
    • Performance Level According To En Iso 13849 1 : none
    • System Accessory : false
    • Digital Inputs Configurable : false
    • Time Delay At Signal Change : 10-10 ms
    • Product Kit Identifier : N
    • Product Manager : LEI DONG
    • Analogue Input Signal Configurable : false
    • Analogue Input Resistance Thermometer : false
    • Analogue Input Resistor : false
    • Analogue Input Thermocouple : false
    • Analogue Input Voltage : true
    • Analogue Inputs Configurable : false
    • Analogue Output Signal Configurable : false
    • Analogue Output Current2 : true
    • Analogue Output Voltage2 : true
    • Analogue Outputs Configurable : false
    • Short Circuit Protection Digital Outputs Available : true
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 0-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI1403005EN
    • Environmental Disclosure : ENVPEP1403005EN
    • Operating Altitude : <= 16404.2 ft (5000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 % without condensation
    • Pep Code : ENVPEP1403005EN
  • General Attributes
    • Product Or Component Type : analogue,discrete I/O base
    • Range Of Product : Modicon Momentum automation platform
  • Output Attributes
    • Analogue Output Range : +/- 10 V 12 bits, +/- 10 V 12 bits, 0...20 mA 12 bits
    • Analogue Output Resolution : 12 bits, +/- 10 V, 12 bits, 0...20 mA
    • Discrete Output Current : 1 A per point, 2 A per group, 2 A per module
    • Output Load : <= 600 Ohm 0...20 mA analogue output, <= 600 Ohm 0...20 mA analogue output, <= 600 Ohm 0...20 mA analogue output, >= 3 kOhm +/- 10 V analogue output, >= 3 kOhm +/- 10 V analogue output, >= 3 kOhm +/- 10 V analogue output
    • Output Overload Protection : with discrete output
    • Output Short Circuit Protection : with discrete output
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Analogue Input Resolution : 12 bits, 13 bits, 14 bits
    • Analogue Input Type : differential +/- 10 V, differential +/- 20 mA, differential +/- 5 V, differential 1...5 V, differential 4...20 mA
    • Input Overvoltage Protection : -50-50 V <= 100 s analogue input circuit, -50-50 V <= 100 s analogue input circuit, -50-50 V <= 100 s analogue input circuit, -30-30 V 24 V analogue input circuit, -30-30 V 24 V analogue input circuit, -30-30 V 24 V analogue input circuit
    • Input Resistance : 1 MOhm analogue input circuit, 4 kOhm discrete input
    • Discrete Input Voltage : 24 V DC
    • Discrete Input Voltage Type : DC
