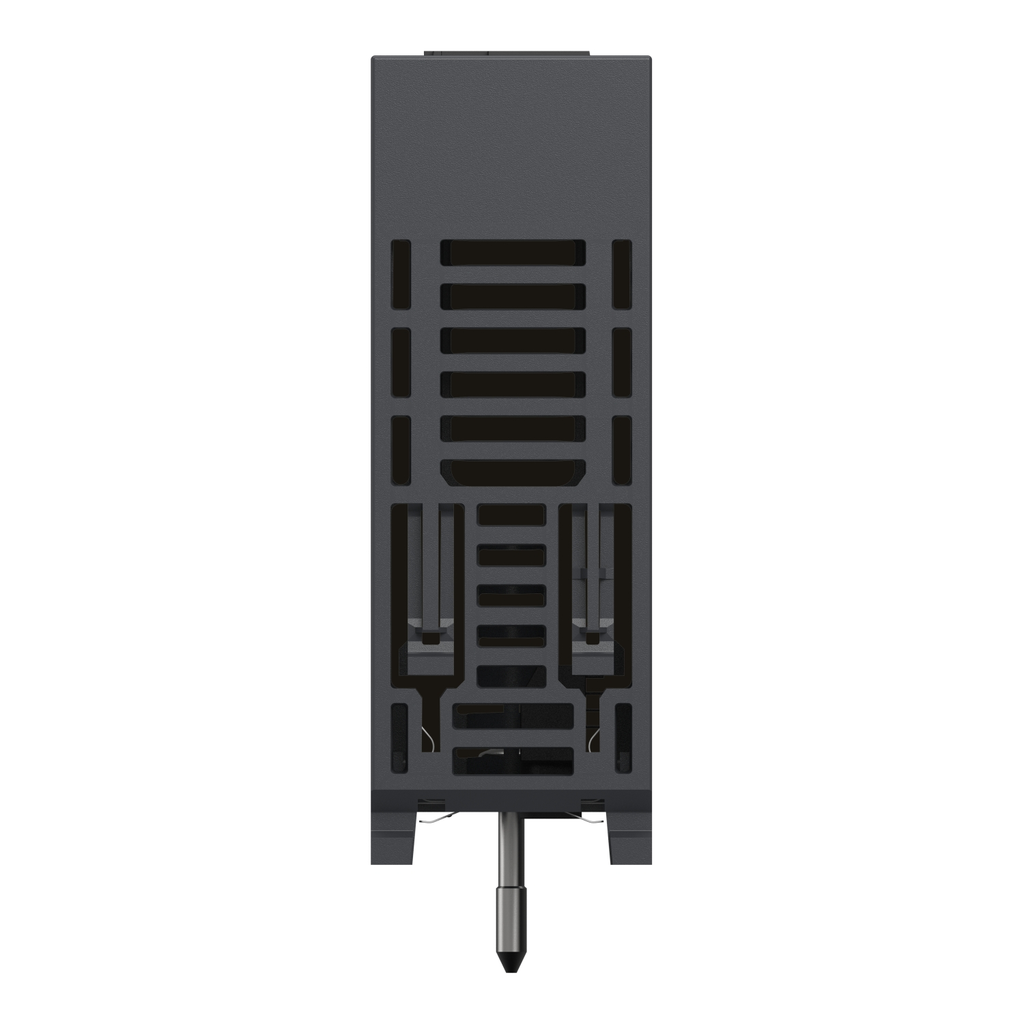

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 2.26W, a typical current consumption 79mA at 3.3V DC and 0.6A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Voltage Drop : <1.2 V at state 1, <1.2 V at state 1
• Maximum Current Per Module : 10 A
• Maximum Leakage Current : 0.5 mA at state 0
• Maximum Tungsten Load : 6 W
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic
• Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
• Protection Type : reverse polarity protection, external short-circuit protection, overload protection, overvoltage protection
• Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
• Voltage Detection Threshold : < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0
• Carbon Footprint Of The Distribution Phase A4 : 0.0189607273, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2572915152
• Carbon Footprint Of The Installation Phase A5 : 0.0386104242, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.5266060606
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 13.4007088643
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311046EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Current Per Channel : 0.625 A
• Package Weight Lbs : 145.000 g
• Power Dissipation In W : 2.26 W
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : discrete output module
• Range Of Product : Modicon X80
• Returnability : No
• Shock Resistance : 30 gn
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 32 kg CO2 eq.
• Typical Current Consumption : 79 mA 3.3 V DC
• Vibration Resistance : 3 gn
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : CHAO CHEN
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 32.2421775916
• Circularity Profile : ENVEOLI2311046EN
• Environmental Disclosure : ENVPEP2311046EN
• Packaging Made With Recycled Cardboard : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : discrete output module
• Range Of Product : Modicon X80
• Output Attributes
• Discrete Output Number : 16
• Discrete Output Voltage : 24 V 19...30 V DC
• Output Overvoltage Protection : with transil diode
• Paralleling Of Outputs : yes : 3 maximum
• Response Time On Output : 1.2 ms
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
