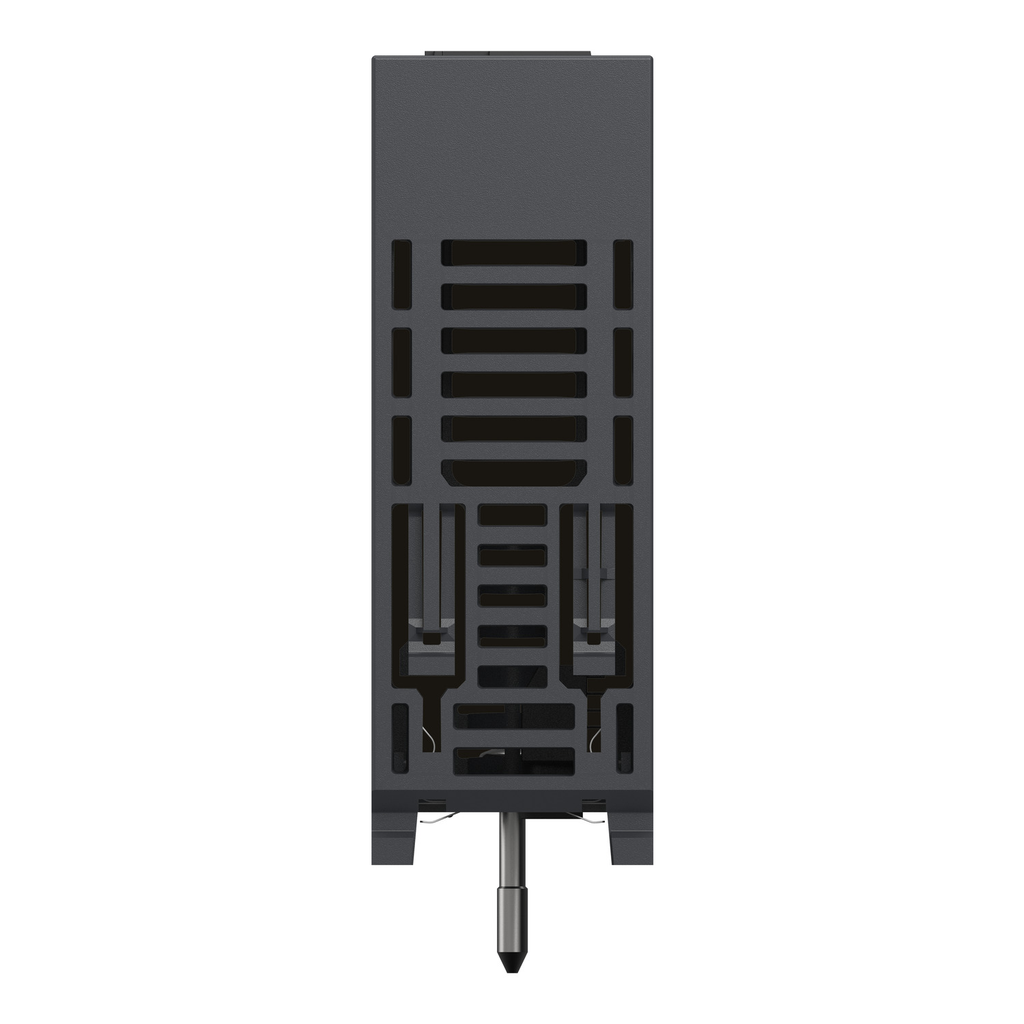

discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC

16 NON-PROTECTED RELAY OUTPUTS

SQDBMXDRA1605 BMXDRA1605 3595863909234
522.95 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC-1
  • Dielectric Strength: 2000 V, 50/60 Hz
  • Warranty Length: 18 mth
This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
QTY
  • Product Description
  • Features
  • Specifications
This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA1605_3D-simpl&p_File_name=BMXDRA1605(H)_terminal_block_lable.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000262_3D-CAD
  • Complementary Attributes
    • Minimum Switching Current : 1 mA 5 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Electrical Durability : AC-15 100000 cycles 120 VA 100 V, AC-15 100000 cycles 120 VA 24 V, AC-15 100000 cycles 120 VA 48 V, DC-13 100000 cycles 10 W 48 V, AC-12 300000 cycles 200 VA 200 V, AC-12 300000 cycles 80 VA 100 V, AC-12 300000 cycles 50 VA 48 V, AC-15 300000 cycles 36 VA 100 V, AC-15 300000 cycles 72 VA 100 V, AC-15 300000 cycles 36 VA 48 V, AC-15 300000 cycles 72 VA 48 V, AC-15 300000 cycles 36 VA 24 V, AC-15 300000 cycles 72 VA 24 V, DC-13 300000 cycles 3 W 48 V, DC-13 7000 cycles 24 W 48 V, AC-15 100000 cycles 240 VA 200 V 0.7 ), AC-15 100000 cycles 120 VA 200 V 0.35 ), AC-12 100000 cycles 200 VA 100 V, AC-12 100000 cycles 80 VA 48 V, AC-12 100000 cycles 50 VA 24 V, DC-12 100000 cycles 24 W 24 V, DC-13 100000 cycles 10 W 24 V, AC-15 300000 cycles 72 VA 200 V 0.7 ), AC-15 300000 cycles 36 VA 200 V 0.35 ), DC-13 300000 cycles 3 W 24 V, DC-13 7000 cycles 24 W 24 V, DC-12 50000 cycles 24 W 48 V
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Status Led : 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
    • Typical Current Consumption : 100 mA 3.3 V DC, 95 mA 24 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 0.0234066909, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.3176219394
    • Carbon Footprint Of The Installation Phase A5 : 0.047663903, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 23 kg CO2 eq., 22.8707757576
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 123 kg CO2 eq., 123.1970759967
    • Discrete Output Voltage 16 : 24...48 V 19...60 V DC, 24...240 V 19…264 V AC
    • Medium Desc : discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Global Commercial Status : Commercialised
    • Html Descr : Discrete output module X80, 16 outputs, relay, 24 V DC or 24...240 V AC
    • Return Indicator : Y
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Dielectric Strength : 2000 V AC 50/60 Hz 1 min
    • Mtbf Reliability : 2100000 H
    • Power Dissipation In W : 3 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : discrete output module
    • Protective Treatment : standard version
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Shock Resistance : 30 gn
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 146 kg CO2 eq.
    • Vibration Resistance : 3 gn
    • Ith Conventional Free Air Thermal Current : 2 A
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 146.4565442876
    • Ambient Air Temperature For Operation : 0-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete output module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Output Attributes
    • Discrete Output Voltage : 24...48 V 19...60 V DC, 24...240 V 19…264 V AC
    • Output Overvoltage Protection : use discharge diode on each output DC, use RC circuit on each output AC, use ZNO surge limiter on each output AC
    • Response Time On Output : < 8 ms activation, < 8 ms activation, < 10 ms deactivation, < 10 ms deactivation, < 8 ms activation, < 8 ms activation, < 10 ms deactivation, < 10 ms deactivation
    • Discrete Output Logic : positive
    • Discrete Output Number : 16 IEC 61131-2
    • Discrete Output Type : relay
    • Output Overload Protection : use 1 fast blow fuse per channel or group of channel
    • Output Short Circuit Protection : use 1 fast blow fuse per channel or group of channel
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
