discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC, for severe environments

H DIG 16 OUT TRIACS

SQDBMXDAO1605H BMXDAO1605H 3595864027821
842.89 / EA
http://schema.org/OutOfStock

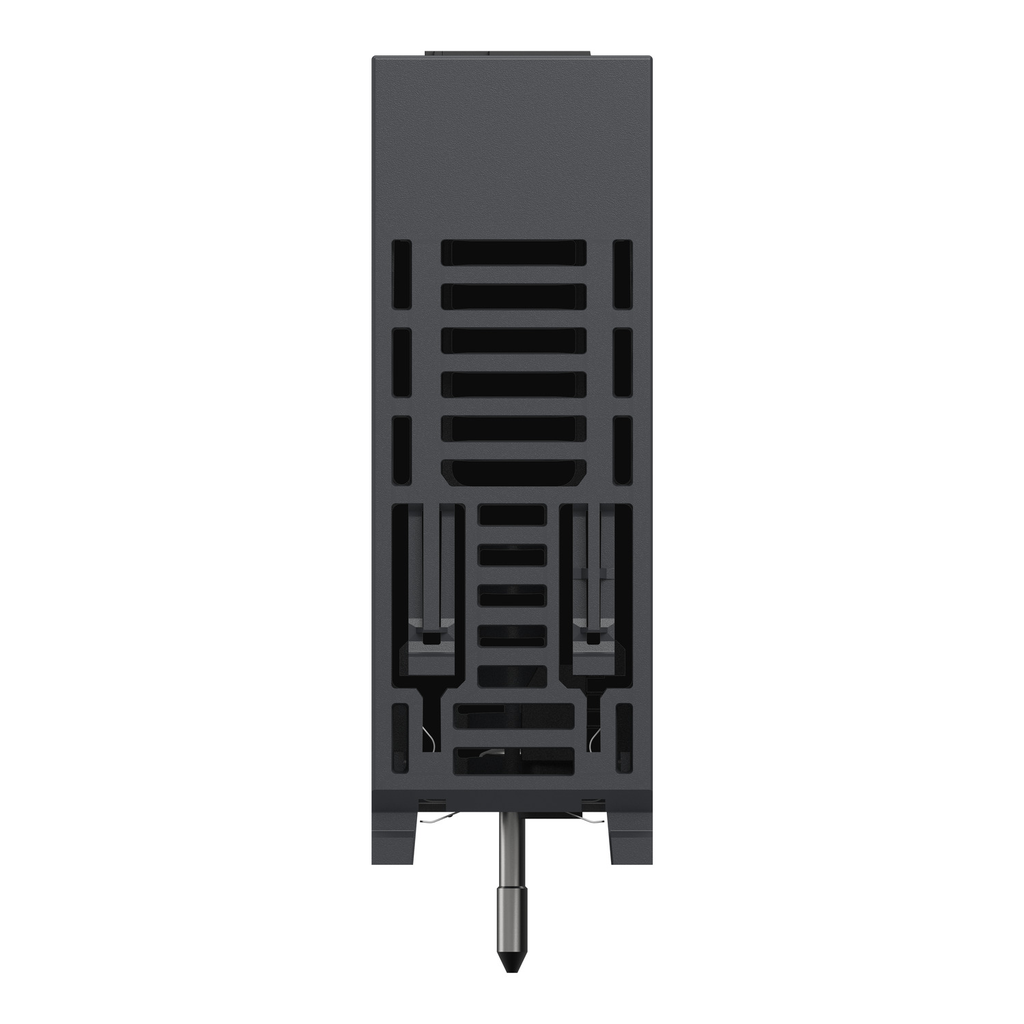

Mayer-DDS-discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC, for severe environments-2
  • Country of Origin: France
  • Warranty Length: 18 mth
This discrete triac output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 output channels and it is supplied with 100 to 240V AC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1798140 hours of MTBF. This discrete module has a weight of 0.140kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Features
  • Specifications
This discrete triac output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 output channels and it is supplied with 100 to 240V AC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1798140 hours of MTBF. This discrete module has a weight of 0.140kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
  • Insulation Resistance
    • > 10 MOhm 500 V DC
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_3D-Simpl.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-isom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-isom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-rear.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-rear.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605H_2d-top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAO1605H_3D-simpl&p_File_name=BMXDAO1605(H)_terminal_block_lable.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Typical Current Consumption
    • 79 mA 3.3 V DC
  • Maximum Leakage Current
    • 1.5 mA at state 0 120 V AC 60 Hz
    • 3 mA at state 0 240 V AC 60 Hz
  • Status Led
    • 1 LED (Green) module operating (RUN)
    • 1 LED per channel (Green) channel diagnostic
    • 1 LED (Red) module error (ERR)
    • 1 LED (Red) module I/O
  • Response Time On Output
    • <= 1.011 ms resistive activation
    • <= 1.011 ms resistive deactivation
  • Protection Type
    • 1 external fuse fast blow
  • Accessories
    • BMXFTB2000
    • BMXFTB2010
    • BMXFTB2020
    • BMXFTW301
    • BMXFTW501
    • BMXFTW1001
  • Persona Type Names
    • End User
    • OEM - Control Panelbuilder
    • System Integrator
  • Environmental Characteristic
    • gas resistant class Gx
    • gas resistant class 3C4
    • dust resistant class 3S4
    • sand resistant class 3S4
    • salt resistant level 2
    • mold growth resistant class 3B2
    • fungal spore resistant class 3B2
  • Maximum Current Per Output Common
    • 0.96 A 70 °C
    • 2.4 A 60 °C
  • Relative Humidity
    • 5-95 % 55-55 °C without condensation
  • Directives
    • 2014/35/EU - low voltage directive
    • 2014/30/EU - electromagnetic compatibility
  • Persona Type Ids
    • EU
    • OM8
    • SI
  • Dielectric Strength
    • 2830 V AC 50/60 Hz 1 min
  • Current Per Channel
    • 0.24 A 70 °C
    • 0.6 A 60 °C
  • Operating Altitude
    • 0...6561.68 ft (0...2000 m)
    • 2000...5000 m with derating factor
  • Maximum Current Per Module
    • 1.92 A 70 °C
    • 4.8 A 60 °C
  • Maximum Voltage Drop
    • <1.5 V at state 1
  • Discrete Output Voltage
    • 100...240 V AC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2438
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 209.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : discrete output module
    • Product Specific Application : for severe environments
    • Range Of Product : Modicon X80
    • Returnability : No
    • Shock Resistance : 30 gn
    • Sustainable Packaging : Yes
    • Vibration Resistance : 3 gn
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2311046EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : discrete output module
    • Range Of Product : Modicon X80
  • Output Attributes
    • Discrete Output Number : 16
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=42858228&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2311046EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
