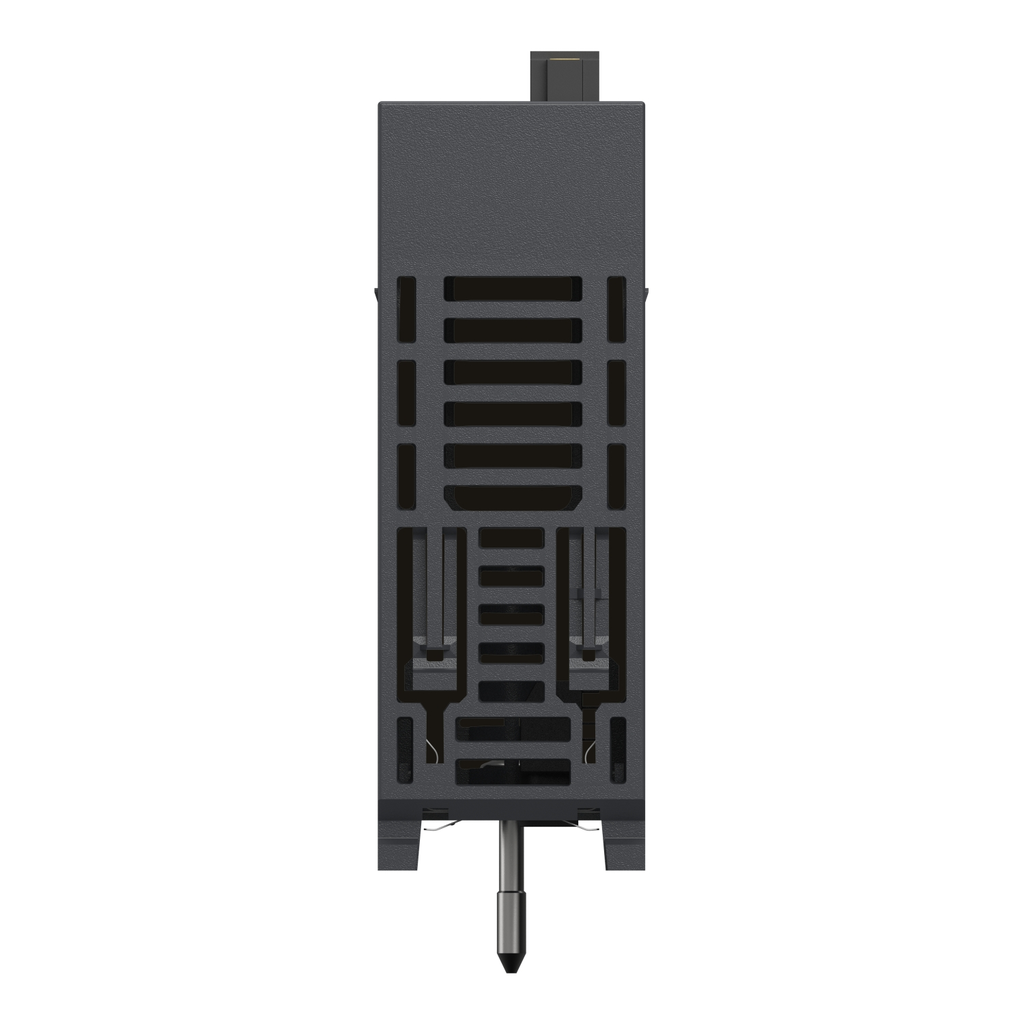

This discrete input module is part of the Modicon X80 modules. It has 32 isolated inputs and it is supplied with 24V DC. this input module with 40-way connectors is designed, for use in conjunction with the TeSys Quickfit mounting system. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• DC Maximum Filtering Time : 7 ms
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels
• Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
• Protection Type : 1 external fuse per group of channel 0.5 A fast blow, reverse polarity protection
• Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
• Voltage Detection Threshold : < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK
• Carbon Footprint Of The Distribution Phase A4 : 0.0201899055, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.273971103
• Carbon Footprint Of The Installation Phase A5 : 0.0411134448, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 20 kg CO2 eq., 19.7276412121
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 21 kg CO2 eq., 20.5097145251
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• HTML Description : Discrete input module X80, 32 inputs, 24 V DC positive
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311046EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Current State 0 Guaranteed : <= 0.5 mA
• Current State 1 Guaranteed : >= 2 mA
• DC Maximum Filtering Time : 7 ms
• DC Typical Filtering Time : 4 ms
• Package Weight Lbs : 143.000 g
• Power Dissipation In W : 3.9 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : discrete input module
• Range Of Product : Modicon X80
• Returnability : Yes
• Shock Resistance : 30 gn
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 41 kg CO2 eq.
• Typical Current Consumption : 121 mA 3.3 V DC
• Vibration Resistance : 3 gn
• Voltage Range : 19...30 V
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : CHAO CHEN
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 40.5726301906
• Circularity Profile : ENVEOLI2311046EN
• Environmental Disclosure : ENVPEP2311046EN
• Packaging Made With Recycled Cardboard : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : discrete input module
• Range Of Product : Modicon X80
• Surge Protection And Filtering Attributes
• DC Typical Filtering Time : 4 ms
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Compatibility : with 2-wire/3-wire proximity sensors IEC 60947-5-2, with 2-wire/3-wire proximity sensors IEC 61131-2 Type 1
• Discrete Input Current : 2.5 mA
• Discrete Input Type : isolated
• Discrete Input Voltage : 24 V DC positive
• Paralleling Of Inputs : no
