Discrete input module, Modicon X80, 16 inputs, 24V AC/DC positive or negative, for severe environments

H DIG 16 IN 24VAC/24VDC SOURCE

SQDBMXDAI1602H BMXDAI1602H 3595864006413
467.55 / EA
http://schema.org/OutOfStock

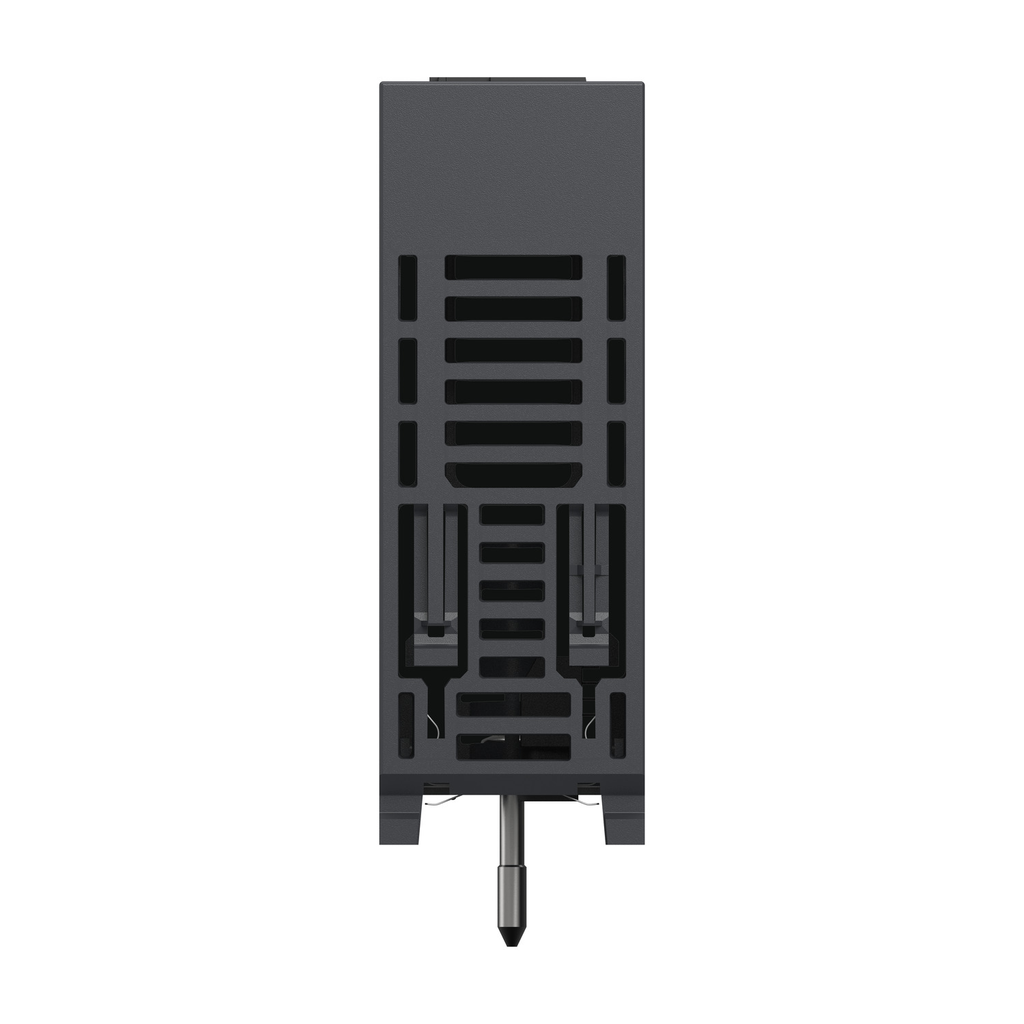

Mayer-DDS-Discrete input module, Modicon X80, 16 inputs, 24V AC/DC positive or negative, for severe environments-1
  • Country of Origin: Brazil
  • Depth: 86 mm
  • Dielectric Strength: 1500 V, 50/60 Hz
  • Warranty Length: 18 mth
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 discrete input channels and it is supplied with 24V AC/DC (positive or negative). This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1124252 hours of MTBF. This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
    • Current State 0 Guaranteed : <= 1 mA AC, <= 1 mA AC, <= 0.5 mA DC, <= 0.5 mA DC, <= 1 mA AC, <= 1 mA AC, <= 0.5 mA DC, <= 0.5 mA DC
    • Current State 1 Guaranteed : >= 2 mA AC, >= 2 mA AC, >= 2 mA DC, >= 2 mA DC, >= 2 mA AC, >= 2 mA AC, >= 2 mA DC
    • Environmental Characteristic : gas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Local Signalling : 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
    • Marking : CE, UKCA, cULus, EAC, RCM
    • Sensor Power Supply : 20-26 V 60 °C, 19-30 V
    • Voltage Detection Threshold : < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK
    • Voltage State 0 Guaranteed : <= 5 V, <= 5 V
    • Voltage State 1 Guaranteed : >= 15 V, >= 15 V
    • Carbon Footprint Of The Distribution Phase A4 : 0.0188299636, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2555170909
    • Carbon Footprint Of The Installation Phase A5 : 0.0383441455, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 18 kg CO2 eq., 18.3988363636
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 12.8918199067
    • Certificate Agency : ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-13
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2438
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Ac Activation Filtering Time : 15 ms
    • Ac Deactivation Filtering Time : 20 ms
    • Device Application : industrial application in severe environment
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, primary/secondary
    • Isolation Between Channels And Bus : 1500 V for 1 minute
    • Mtbf Reliability : 1125000 H
    • Power Dissipation In W : 3 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : discrete input module
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Shock Resistance : 30 gn
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 32 kg CO2 eq.
    • Typical Current Consumption : 76 mA DC
    • Vibration Resistance : 3 gn
    • Warranty In Months : 18
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y2 : 10
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Recyclability Potential In 2 : 3
    • Offer Owner Code : 190786
    • Pn : 1
    • Height Nominal : 103.7 mm
    • Width Nominal : 32 mm
    • Water Use M3 Eq Manufacturing A1 A3 2 : 51014.4
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 31.6033474703
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete input module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Current : 3 mA at 24 V AC, 3.9 mA at 24 V DC
    • Discrete Input Frequency : 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
    • Discrete Input Number : 16 isolated conforming to IEC 60947-5-2 at 24 V AC, 16 isolated conforming to IEC 61131-2 Type 1 at 24 V DC, 16
    • Discrete Input Voltage : 24 V ACisolated, 24 V DC
    • Discrete Input Logic : positive logic (sink)
    • Input Impedance : 6 kOhm
    • Input Wiring Mode : 2 or 3 wires
    • Paralleling Of Inputs : no
  • Specifications
    • Country of Origin : Brazil
    • Depth : 86 mm
