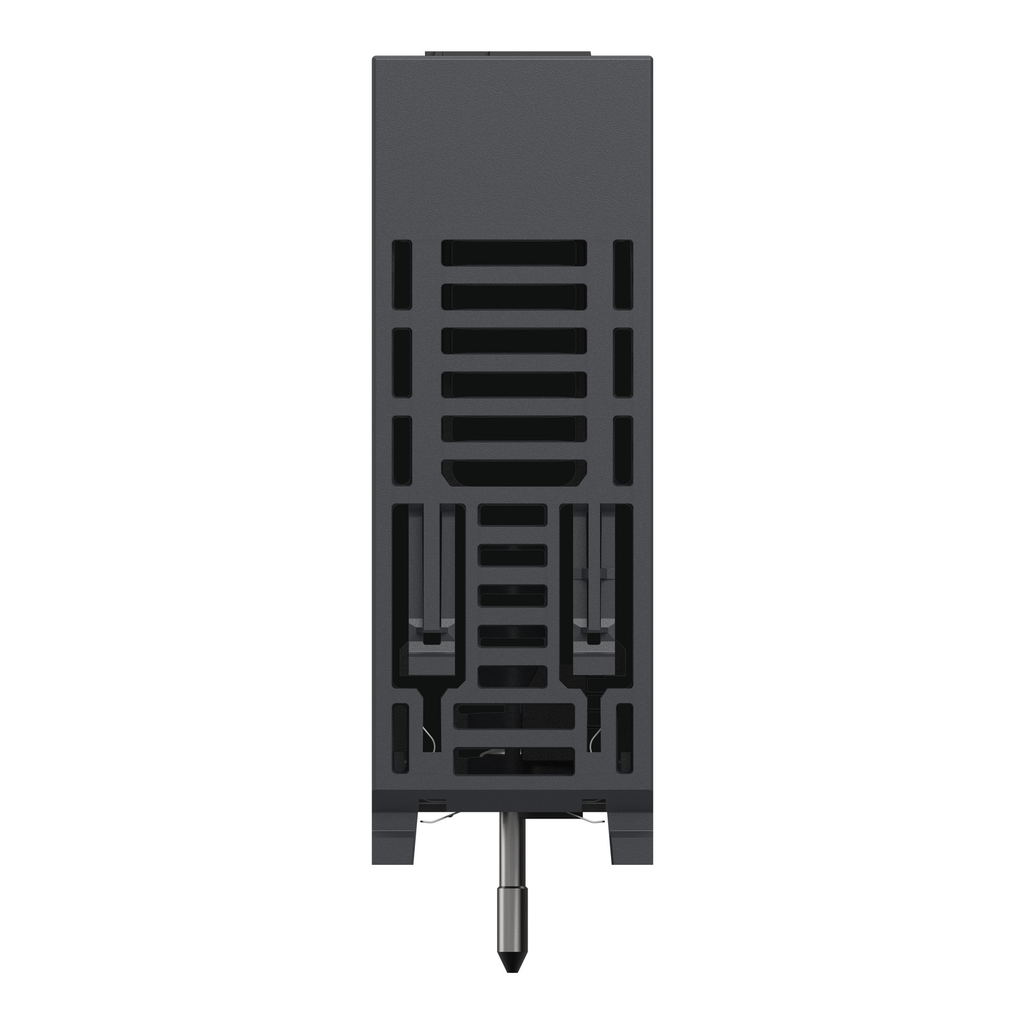

discrete input module, Modicon X80, 16 inputs, 100 to 120V AC

DIG 16I 100 TO 120 VAC

SQDBMXDAI1604 BMXDAI1604 3595863909999
803.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete input module, Modicon X80, 16 inputs, 100 to 120V AC-1
  • Country of Origin: USA
  • Depth: 86 mm
  • Dielectric Strength: 1500 V, 50/60 Hz
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.8W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It offers 1504958 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.8W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It offers 1504958 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 min
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Local Signalling : 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
    • Marking : CE, UKCA, cULus, EAC, RCM
    • Power Dissipation In W : 3.8 W
    • Sensor Power Supply : 85-132 V
    • Shock Resistance : 30 gn
    • Vibration Resistance : 3 gn
    • Voltage Detection Threshold : < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, > 82 V AC sensor OK, > 82 V AC sensor OK, > 82 V AC sensor OK, > 82 V AC sensor OK< 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, > 82 V AC sensor OK, > 82 V AC sensor OK
    • Carbon Footprint Of The Distribution Phase A4 : 0.0193530182, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2626147879
    • Carbon Footprint Of The Installation Phase A5 : 0.0394092606, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.9099151515
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 12.8918199067
    • Certificate Agency : IEC 61131-2
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2438
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Ac Activation Filtering Time : 10 ms
    • Ac Deactivation Filtering Time : 20 ms
    • Current State 0 Guaranteed : <= 1 mA<= 1 mA
    • Current State 1 Guaranteed : >= 2.5 mA>= 2.5 mA
    • Device Application : Industrial Application
    • Isolation Between Channels And Bus : 1500 V for 1 minute
    • Mtbf Reliability : 1120000 H
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : discrete input module
    • Protective Treatment : standard version
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 32 kg CO2 eq.
    • Typical Current Consumption : 76 mA DC
    • Voltage State 0 Guaranteed : <= 20 V<= 20 V
    • Voltage State 1 Guaranteed : >= 74 V>= 74 V
    • Warranty In Months : 18
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional-unit Quantity : 1
    • Functional-unit Unit : Unit
    • Reference Lifetime, In Y : 10
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Recyclability Potential, In % : 3
    • Offer Owner Code : 190786
    • Pn : 1
    • Height Nominal : 103.7 mm
    • Width Nominal : 32 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-60 °C
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 32.1231121249
    • Ambient Air Temperature For Storage : -40-85 °C-40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete input module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Current : 5 mA at 100...120 V AC
    • Discrete Input Frequency : 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
    • Discrete Input Number : 16 isolated conforming to IEC 60947-5-2 at 100...120 V AC, 16 isolated conforming to IEC 61131-2 type 3 at 100...120 V AC, 16
    • Discrete Input Voltage : 100...120 V ACisolated
    • Discrete Input Logic : positive logic (sink)
    • Input Impedance : 13000 Ohm
    • Input Wiring Mode : 2 or 3 wires
  • Specifications
    • Country of Origin : United States
    • Depth : 86 mm
