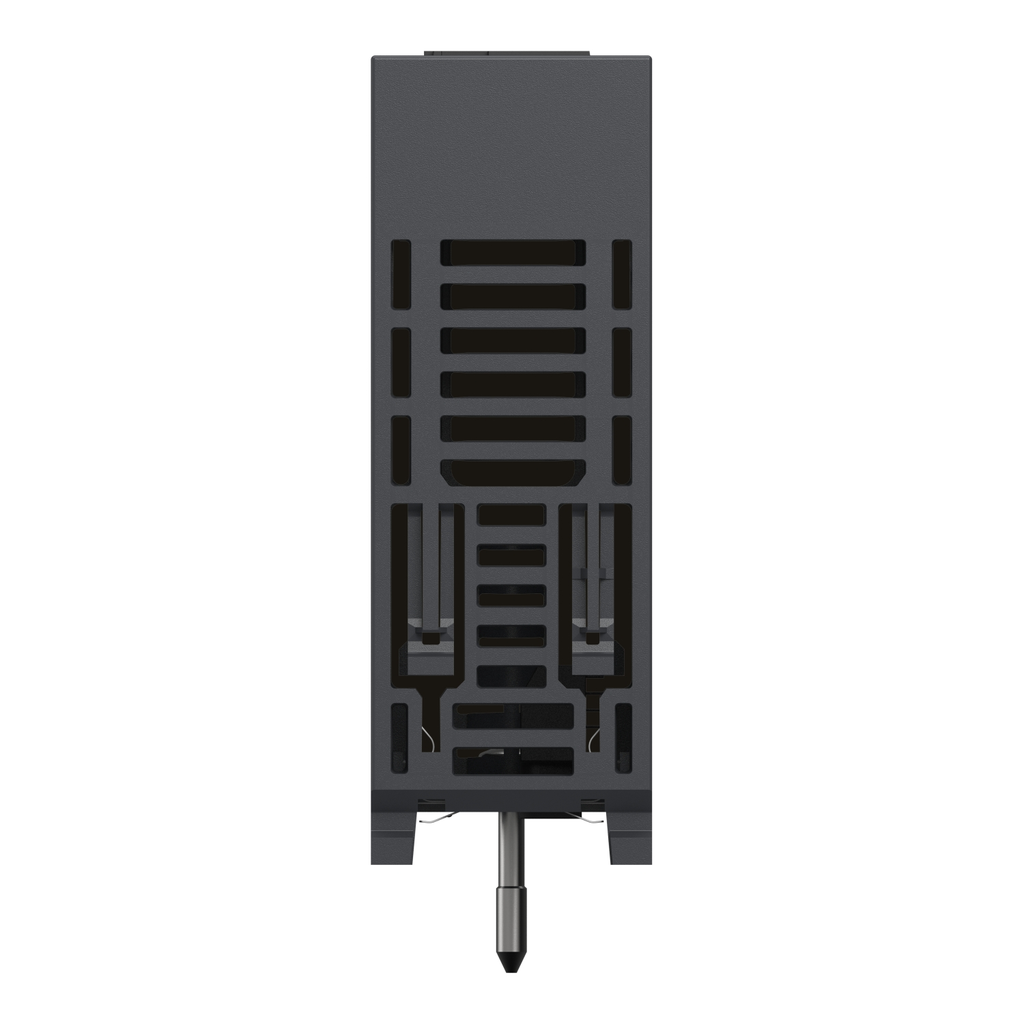

Discrete input module, M340, 16 Inputs, 24 VDC sink

Discrete input module, M340, 16 Inputs, 24 VDC sink

SQDBMXDDI1602 BMXDDI1602 785901786924
231.64 / EACH
  • Country of Origin: Indonesia
  • Impedance: 6800 ohm
  • Warranty Length: 18 mth
  • Weight: 0.115 kg, 0.25 lb
The M340 processor module has a maximum of 1024 discrete and 256 analog I/O (Modbus or Ethernet). 36 application specific channels, product or component type. The processor module can do monitoring, diagnostic counters Modbus, event counters Modbus, is transparent ready, has 4 CANopen racks and 11 slots. It also has 1024 I/O multirack configuration, 704 I/O single rack configuration, analog I/O processor capacity, 256 I/O multirack configuration and 66 I/O single rack configuration. The Modicon M340 offers in a small form factor flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Modicon M340 Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production. M340 PACs have an all in one CPU. It operates at 7 Kinst/ms. By using a multitasking system, it has reflex time. This PAC is programmed with Unity™ Pro software. The M340 has a USB port for programming and HMI. Two additional Ethernet, CANopen® or Modbus™ ports are available as required. The memory can process programming code up to 70 Kinst. Application back up is in a supplied memory card. Additional file storage is available up to 128 MB with FTP access. Additional file storage is available up to 128 MB with FTP access. The M340 range doesn’t require a battery. It has extended temperature (-25°C +70°C) and conformal coating for operation in harsh environments. Protection for SI and OEM know how by using a SD card technology. Replace or hot swap I/O modules without stopping process. Configuration change on the fly (CCOTF) is used. No need to stop the process to expand system. FTD/DTM configuration tools for plug and play device integration. This simplifies configuration, commissioning, and maintenance. The M340 range is used in process industries, renewable energy applications (Solar, Wind power, etc.), water and cement applications, in manufacturing, in infrastructures and on machines.
  • Product Description
  • Specifications
The M340 processor module has a maximum of 1024 discrete and 256 analog I/O (Modbus or Ethernet). 36 application specific channels, product or component type. The processor module can do monitoring, diagnostic counters Modbus, event counters Modbus, is transparent ready, has 4 CANopen racks and 11 slots. It also has 1024 I/O multirack configuration, 704 I/O single rack configuration, analog I/O processor capacity, 256 I/O multirack configuration and 66 I/O single rack configuration. The Modicon M340 offers in a small form factor flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Modicon M340 Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production. M340 PACs have an all in one CPU. It operates at 7 Kinst/ms. By using a multitasking system, it has reflex time. This PAC is programmed with Unity™ Pro software. The M340 has a USB port for programming and HMI. Two additional Ethernet, CANopen® or Modbus™ ports are available as required. The memory can process programming code up to 70 Kinst. Application back up is in a supplied memory card. Additional file storage is available up to 128 MB with FTP access. Additional file storage is available up to 128 MB with FTP access. The M340 range doesn’t require a battery. It has extended temperature (-25°C +70°C) and conformal coating for operation in harsh environments. Protection for SI and OEM know how by using a SD card technology. Replace or hot swap I/O modules without stopping process. Configuration change on the fly (CCOTF) is used. No need to stop the process to expand system. FTD/DTM configuration tools for plug and play device integration. This simplifies configuration, commissioning, and maintenance. The M340 range is used in process industries, renewable energy applications (Solar, Wind power, etc.), water and cement applications, in manufacturing, in infrastructures and on machines.
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Current State 0 Guaranteed : <= 1.5 mA
    • Dc Typical Response Time : 4 ms
    • Voltage Detection Threshold : < 14 V DC sensor fault || > 18 V DC sensor OK
    • Current State 1 Guaranteed : >= 2 mA
    • Sensor Power Supply : 19...30 V
    • Input Impedance : 6800 Ohm
    • Protection Type : 1 external fuse per group of channel 0.5 A fast blow || reverse polarity protection
    • Product Weight : 0.25 lb(US) (0.115 kg)
    • Status Led : Module operating (RUN) 1 LED Green) || Channel diagnostic 1 LED per channel Green) || Module error (ERR) 1 LED Red) || Module I/O 1 LED Red)
    • Insulation Resistance : > 10 MOhm 500 V DC
    • Dc Maximum Response Time : 7 ms
    • Paralleling Of Inputs : Yes
    • Power Dissipation In W : 2.5 W
    • Typical Current Consumption : 76 mA 3.3 V DC
    • Input Compatibility : With 2-wire/3-wire proximity sensors IEC 60947-5-2 || With 2-wire/3-wire proximity sensors IEC 61131-2 type 3
    • Mtbf Reliability : 738749 H
  • Environment
    • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
    • IP Degree Of Protection : IP20
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, primary/secondary
    • Relative Humidity : 5…95 % 131 °F (55 °C) without condensation
    • Ambient Air Temp For Op : 32…140 °F (0…60 °C)
    • Shock Resistance : 30 gn
    • Environmental Characteristic : Fungal spore resistant class 3B2
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Vibration Resistance : 3 gn
  • Main
    • Range Of Product : Modicon X80
    • Input Type : Current sink (logic positive)
    • Discrete Input Type : Isolated
    • Discrete Input Number : 16
    • Discrete Input Current : 3.5 mA
    • Discrete Input Voltage : 24 V DC positive
    • Product Or Component Type : Discrete input module
  • Ordering And Shipping Details
    • Category : 18160 - MODICON M340
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901786924
    • Discount Schedule : PC34
    • Returnability : Yes
    • Country Of Origin : ID
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
