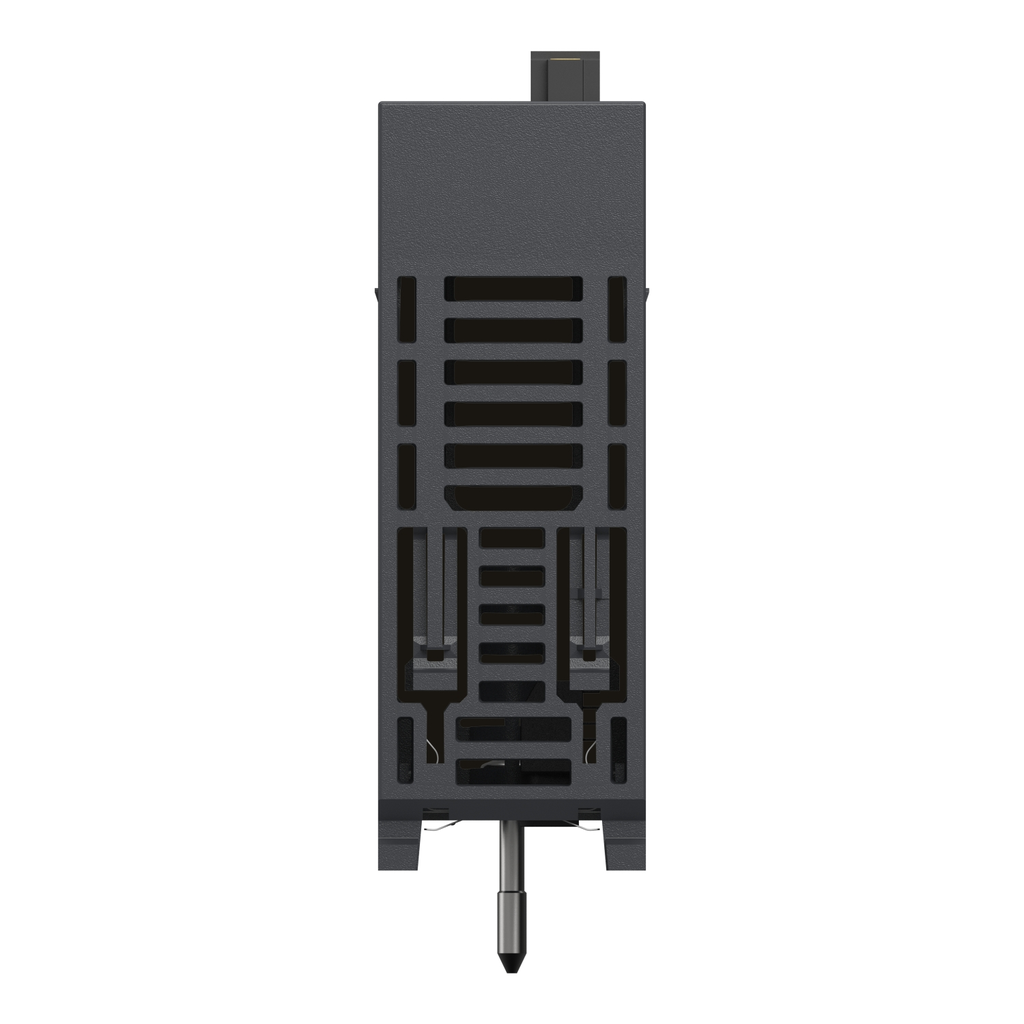

discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive

DIG 16I 24VDC 16Q SOUR TR

SQDBMXDDM3202K BMXDDM3202K 3595863910636
764.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive-1
  • Country of Origin: France
  • Dielectric Strength: 1500 V, 50/60 Hz, 500 V
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Voltage Drop : <1.5 V at state 1, <1.5 V at state 1, <1.5 V at state 1, <1.5 V at state 1
    • Dc Maximum Filtering Time : 7 ms
    • Maximum Current Per Module : 3.2 A
    • Maximum Overload Time : 15 ms
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 166 mA 3.3 V DC, <= 166 mA 3.3 V DC, <= 166 mA 3.3 V DC, <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 166 mA 3.3 V DC, <= 166 mA 3.3 V DC
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic, 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of inputs and outputs
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Protection Type : 1 external fuse per group of input channel 0.5 A fast blow, overvoltage protection on output, reverse polarity protection on input, reverse polarity protection on output
    • Voltage Detection Threshold : < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK
    • Carbon Footprint Of The Distribution Phase A4 : 0.0175223273, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.2377728485
    • Carbon Footprint Of The Installation Phase A5 : 0.0356813576, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 17.1211393939
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 21 kg CO2 eq., 20.5516634815
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2438
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Current Per Channel : 0.125 A
    • Dc Maximum Filtering Time : 7 ms
    • Dc Typical Filtering Time : 4 ms
    • Load Impedance Ohmic : <= 220 Ohm
    • Mtbf Reliability : 430000 H
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : discrete I/O module
    • Protective Treatment : standard version
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Reverse Polarity Protection : reverse mounted diode
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Switching Frequency : 0.5/LI² Hz
    • Total Lifecycle Carbon Footprint : 38 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Product Weight In G2 : 134
    • Reference Lifetime In Y2 : 10
    • Energy Consumption On Product Lifetime In Kwh : 31.5215
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Recyclability Potential In 2 : 3
    • Offer Owner Code : 190786
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 37.9637794088
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete I/O module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Output Attributes
    • Paralleling Of Outputs : yes : 3 maximum
    • Response Time On Output : 1.2 ms
  • Surge Protection And Filtering Attributes
    • Dc Typical Filtering Time : 4 ms
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Number : 16
    • Input Impedance : 9600 Ohm
  • Specifications
    • Country of Origin : France
