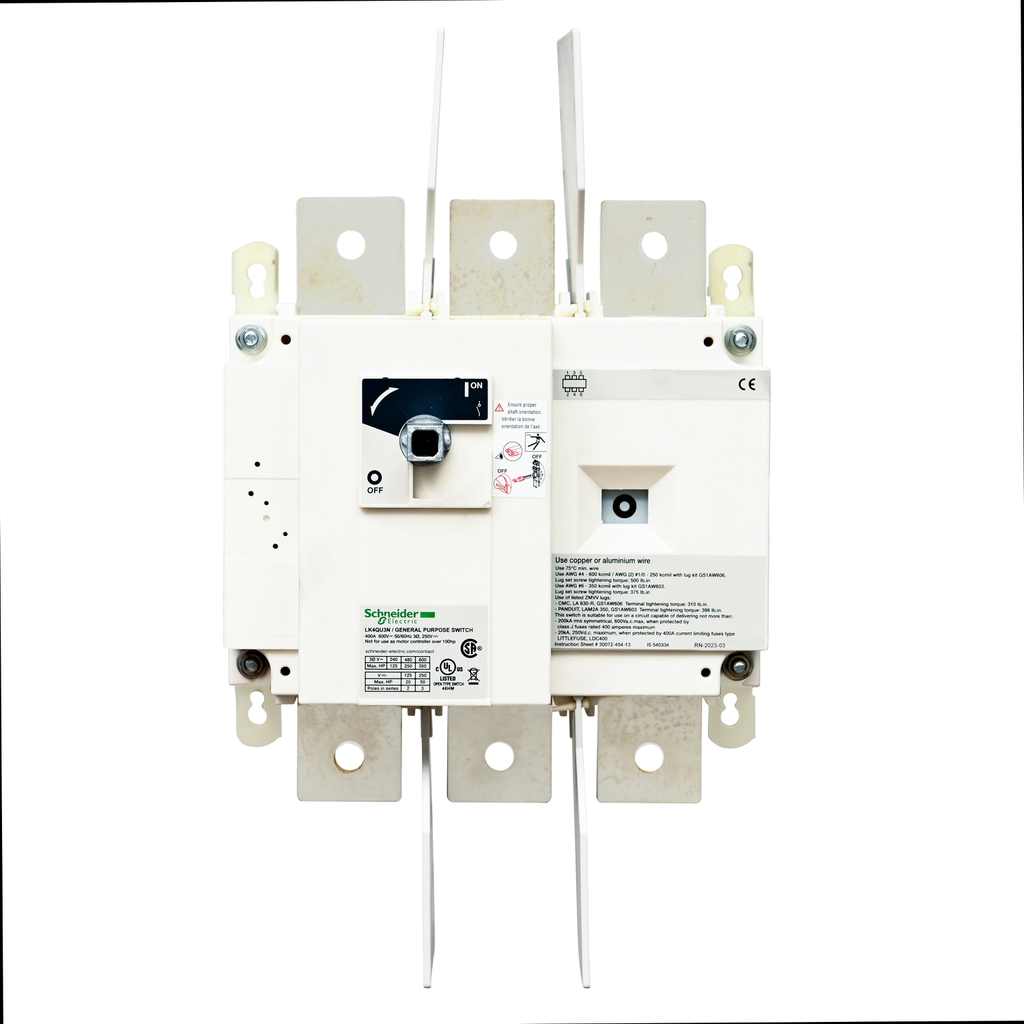

Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR

DISCONNECT SWITCH NO FUSE 600V

SQDLK4QU3N LK4QU3N 3606480510465
2303.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR-2
  • Country of Origin: France
  • Warranty Length: 18 mth
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 400 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 125 HP rating at 240 VAC, a 250 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 400A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 4 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 10.20 inches tall, 9.05 inches wide and 4.92 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 400 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 125 HP rating at 240 VAC, a 250 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 400A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 4 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 10.20 inches tall, 9.05 inches wide and 4.92 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
  • Connections Terminals
    • lugs-ring terminals 1 16-16 mm²
  • IE Rated Operational Current
    • 200 A690 V AC AC-23A IEC
    • 400 A400 V AC AC-22A IEC
    • 400 A400 V AC AC-23A IEC
    • 400 A690 V AC AC-22A IEC
    • 400 A CSA
    • 400 A UL
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004642_3D-CAD&p_File_name=MCADPD0004642_2D-top.dxf
  • Rated Power In HP
    • 125 hp 240 V 312 A AC
    • 250 hp 480 V 302 A AC
    • 350 hp 600 V 336 A AC
    • 20 hp 125 V 148 A DC
    • 50 hp 250 V 173 A DC
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Rated Power In W
    • 185 kW 690 V
    • 220 kW 400 V
    • 280 kW 500 V
  • Type Of Operating Handle
    • external frontal
    • external right side
  • Accessories
    • GS2AH130
    • GS2AH140
    • GS2AH430
    • GS2AH440
    • GS2AE2
    • GS2AE21
    • GS2AEH12
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Network Type
    • AC
    • DC
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 600 V AC 50/60 Hz
  • UIMP Rated Impulse Withstand Voltage
    • 12 kV IEC
  • Important Information Attributes
    • B2B Bullet Point 1 : Break and make power circuits and on/off loads
    • B2B Bullet Point 2 : Provides safety isolation
    • B2B Bullet Point 3 : Positive break indication
    • B2B Bullet Point 4 : Full line of NEMA/UL/IP rated handles
    • B2B Bullet Point 5 : Compliance to major certifications and approvals
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - LV switch - disconnector
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1848
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Durability : 1000 cycles
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 6.402 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Disconnect Switch
    • Range : TeSys
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Disconnect Switch
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=402915738&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
