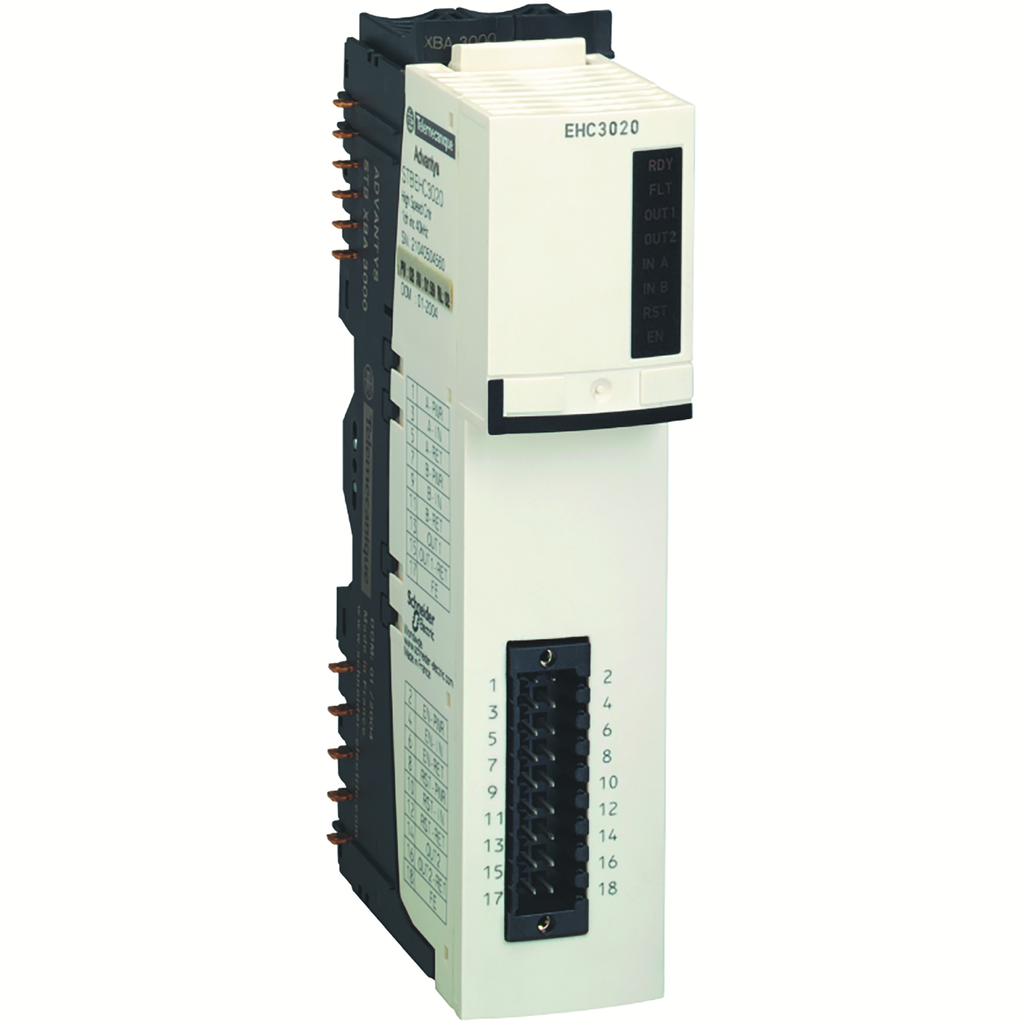

This product is part of the Modicon STB range, an offer of modular distributed I/O. This counter kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 inputs and single channel. It has rated supply voltage of 24V DC. This product is compatible with most major fieldbus networks. It supports maximum counting frequency of 40000Hz with counter functions like measuring time periods, up/down counting, down counting, frequency meter, loop (modulo) counting and count events. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 28.1mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Leakage Current : 0.1 mA at state 0, 0.1 mA at state 0
• Maximum Load Inductance : 500 mH 4 Hz, 500 mH 4 Hz
• Maximum Voltage Drop : <3 V at state 1, <3 V at state 1
• US Rated Supply Voltage : 24 V DC, 24 V DC
• Maximum Counting Frequency : 40000 Hz
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Counter Functions : measure time periods, up/down counting, down counting, frequency meter, loop (modulo) counting, count events
• Current Consumption : 60...100 mA 5 V DC logic bus, 60...100 mA 5 V DC logic bus, 60...100 mA 5 V DC logic bus, 60...100 mA 5 V DC logic bus
• Fallback Status : hold last value configured, hold last value configured, state 0 for output channels by default, state 0 for output channels by default, state 0 or 1 for each channel configured, state 0 or 1 for each channel configured
• Filter Time : 0 ms digital 40000 Hz counting inputs, 0 ms digital 40000 Hz counting inputs, 0 ms digital 40000 Hz counting inputs, 0 ms digital 40000 Hz counting inputs, 0.4 ms digital 1000 Hz counting inputs, 0.4 ms digital 1000 Hz counting inputs, 0.4 ms digital 1000 Hz counting inputs, 0.4 ms digital 1000 Hz counting inputs, 1.2 ms digital 400 Hz counting inputs, 1.2 ms digital 400 Hz counting inputs, 1.2 ms digital 400 Hz counting inputs, 1.2 ms digital 400 Hz counting inputs, 2.5 µs analog counting inputs, 2.5 µs analog counting inputs, 2.5 µs analog counting inputs, 25 µs analog auxiliary input, 25 µs analog auxiliary input, 25 µs analog auxiliary input
• Hot Swapping Fallback : fallback output depending on parameter setting configured mandatory standard network interface module, fallback output depending on parameter setting configured mandatory standard network interface module, fallback output depending on parameter setting configured mandatory standard network interface module, fallback to 0 not configured mandatory standard network interface module, fallback to 0 not configured mandatory standard network interface module, fallback to 0 not configured mandatory standard network interface module, fallback to 0 basic network interface module, fallback to 0 basic network interface module
• Protection Type : overload protection electronic tripping manual or automatic reset, overload protection electronic tripping manual or automatic reset, overload protection electronic tripping manual or automatic reset, short-circuit protection electronic tripping manual or automatic reset, short-circuit protection electronic tripping manual or automatic reset, short-circuit protection electronic tripping manual or automatic reset, overload protection current limiter, overload protection current limiter, short-circuit protection current limiter, short-circuit protection current limiter
• Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27, 30 gn 11 ms IEC 88 reference 2-27, 30 gn 11 ms IEC 88 reference 2-27
• Status Led : 1 LED (Green) EN validation input status (EN), 1 LED (Green) EN validation input status (EN), 1 LED (Green) EN validation input status (EN), 1 LED (Green) module status (RDY), 1 LED (Green) module status (RDY), 1 LED (Green) module status (RDY), 1 LED (Green) reset input status (RST), 1 LED (Green) reset input status (RST), 1 LED (Green) reset input status (RST), 1 LED per counting input (Green) counting input status (INA, INB), 1 LED per counting input (Green) counting input status (INA, INB), 1 LED per counting input (Green) counting input status (INA, INB), 1 LED per output (Green) output status (OUT1, OUT2), 1 LED per output (Green) output status (OUT1, OUT2), 1 LED per output (Green) output status (OUT1, OUT2), 1 LED (Red) module error (FLT), 1 LED (Red) module error (FLT), 1 LED (Red) module error (FLT)
• Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail, 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail, 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail, 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail, 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz
