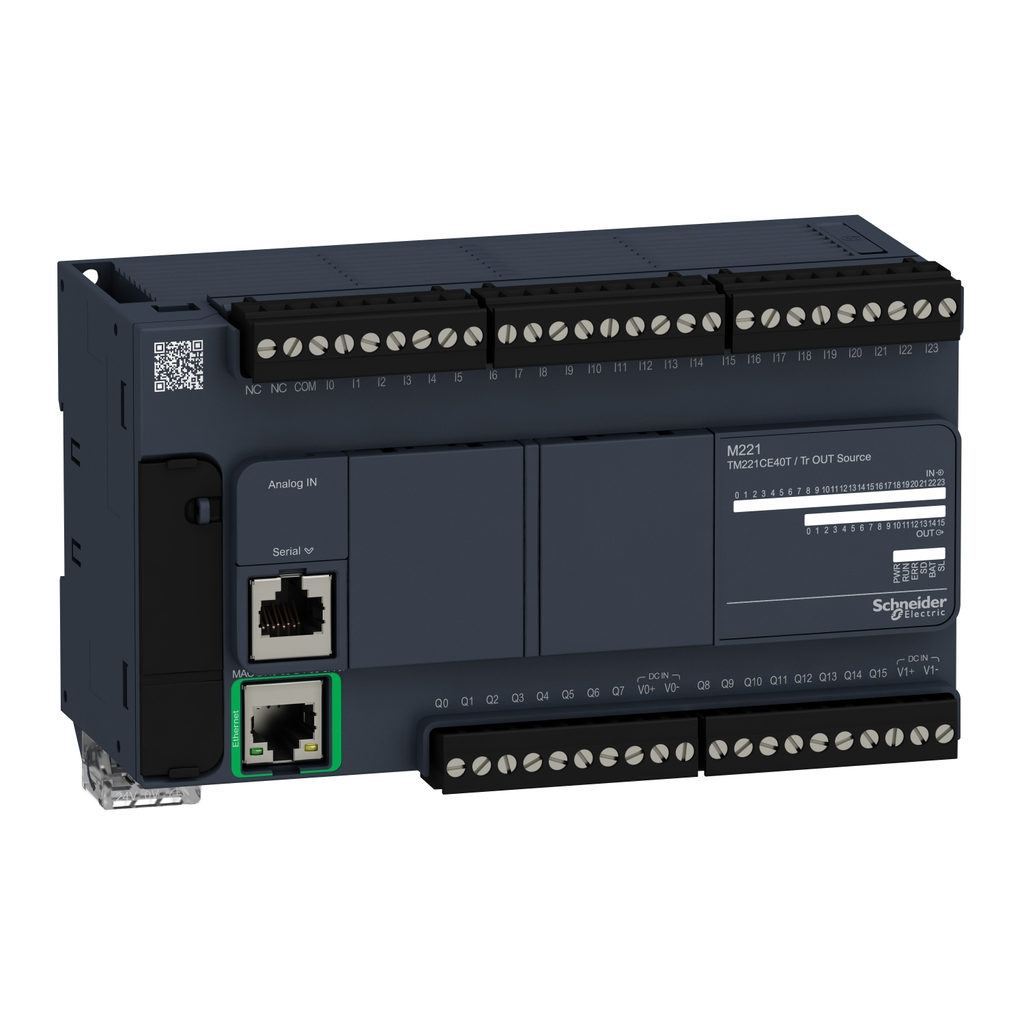

This TM221 controller is part of the Modicon M221 Logic controller range. It has 40 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Port Protocol : USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet
• Complementary Attributes
• Integrated Connection Type : USB port mini B USB 2.0, non isolated serial link serial 1 RJ45 RS232/RS485, Ethernet RJ45
• Maximum Cable Distance Between Devices : shielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital input, unshielded cable <1 m analog input, shielded cable <3 m fast output
• Maximum Number Of I O Expansion Module : 7 (local I/O-Architecture), 14 (remote I/O-Architecture)
• Maximum Power Consumption In W : 17 W 24 V with max number of I/O expansion module), 4.9 W 24 V without I/O expansion module)
• Maximum Tungsten Load : <12 W output and fast output, <12 W output and fast output
• Maximum Current Per Output Common : 4 A
• Maximum Leakage Current : 0.1 mA transistor output
• Maximum Voltage Drop : <1 V
• US Rated Supply Voltage : 24 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Clock Drift : <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
• Configurable Filtering Time : 0 ms input, 3 ms input, 12 ms input
• Electrical Connection : removable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, mini B USB 2.0 connector for a programming terminal
• Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
• Insulation : between input and internal logic 500 V AC, between fast input and internal logic 500 V AC, non-insulated between inputs, between output and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs
• Local Signalling : 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED per channel (green) for I/O state, 1 LED (green) for SL, Ethernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status)
• Memory Capacity : 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
• Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
• Positioning Functions : PTO 2 pulse/direction 100 kHz), PTO 1 CW/CCW 100 kHz)
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2...2.7 GHz IEC 61000-4-3
• Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
• Response Time : 35 µs turn-off, I2...I5 input, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 5 µs turn-off, I0, I1, I6, I7 fast input, 100 µs turn-off, other terminals input, 5 µs turn-on, turn-off, Q0...Q1 output, 50 µs turn-on, turn-off, Q2...Q3 output, 300 µs turn-on, turn-off, other terminals output
• Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s USB
• Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting, 1 gn 8.4-150 Hz symmetrical rail, 1 gn 8.4-150 Hz panel mounting
• Voltage State 0 Guaranteed : <= 5 V input, <= 5 V input
• Voltage State 1 Guaranteed : >= 15 V input, >= 15 V input
• Carbon Footprint Of The Distribution Phase A4 : 1.5088452395461882, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1.4354882633587114, 1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.011202333130324923
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 24 kg CO2 eq., 24.38621262762273
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 101 kg CO2 eq., 100.63267079064721
• Local Data Status : Publishable
• Local Publishable Date : 2024-07-04
• Device Type : PLC System - PLC CPU
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1403012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Conversion Time : 1 ms per channel + 1 controller cycle time analog input
• Data Backed Up : 256 kB built-in flash memory backup of application and data
• Data Storage Equipment : 2 GB SD card optional)
• Exact Time For Event Task : 60 µs response time
• Execution Time For 1 Kinstruction : 0.3 ms event and periodic task
• Execution Time Per Instruction : 0.2 µs Boolean
• Mechanical Durability : 20000000 cycles transistor output
• Package Weight Lbs : 760.0 g
• Port Ethernet : 10BASE-T/100BASE-TX 1 100 m copper cable
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : logic controller
• Protection Type : overload and short-circuit protection 1 A
• Range Of Product : Modicon M221
• Regulation Loop : adjustable PID regulator up to 14 simultaneous loops
• Reset Time : 1 s automatic reset
• Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
• Returnability : Yes
• Shock Resistance : 147 m/s² 11 ms
• Supply : serial)serial link supply 5 V, <200 mA
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 128 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1403012EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Environment Attributes Main
• Ambient Air Temperature For Operation : -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 127.97441925430516
• Circularity Profile : ENVEOLI1403012EN
• Environmental Disclosure : ENVPEP1403012EN
• IP Degree Of Protection : IP20 with protective cover in place
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Storage Altitude : 0-3000 m
• Pep Code : ENVPEP1403012EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : logic controller
• Range Of Product : Modicon M221
• Output Attributes
• Output Frequency : 100 kHz fast output (PWM/PLS mode) Q0...Q1, 5 kHz output Q2...Q3, 0.1 kHz output Q4...Q15
• Power Supply Output Current : 0.52-0.52 A 5 V expansion bus, 0.3-0.3 A 24 V expansion bus
• Discrete Output Current : 0.5 A
• Discrete Output Number : 16 transistor 2 fast output
• Discrete Output Voltage : 24 V DC
• Maximum Current Per Output Common : 4 A
• Surge Protection And Filtering Attributes
• Configurable Filtering Time : 0 ms input, 3 ms input, 12 ms input
• Surge Withstand : 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV power lines (DC) common mode IEC 61000-4-5
• Input Attributes
• Discrete Input Current : 7 mA discrete input, 5 mA fast input
• Input Impedance : 3.4 kOhm discrete input, 100 kOhm analog input, 4.9 kOhm fast input
• Permitted Overload On Inputs : +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
• Analogue Input Number : 2 0...10 V
• Counting Input Number : 4 fast input (HSC mode) 100 kHz 32 bits
• Discrete Input Logic : sink or source (positive/negative)
• Discrete Input Number : 24 , discrete input 4 fast input IEC 61131-2 Type 1
• Discrete Input Voltage Type : DC
• Batteries & Runtime Attributes
• Battery Type : BR2032 or CR2032X lithium non-rechargeable
