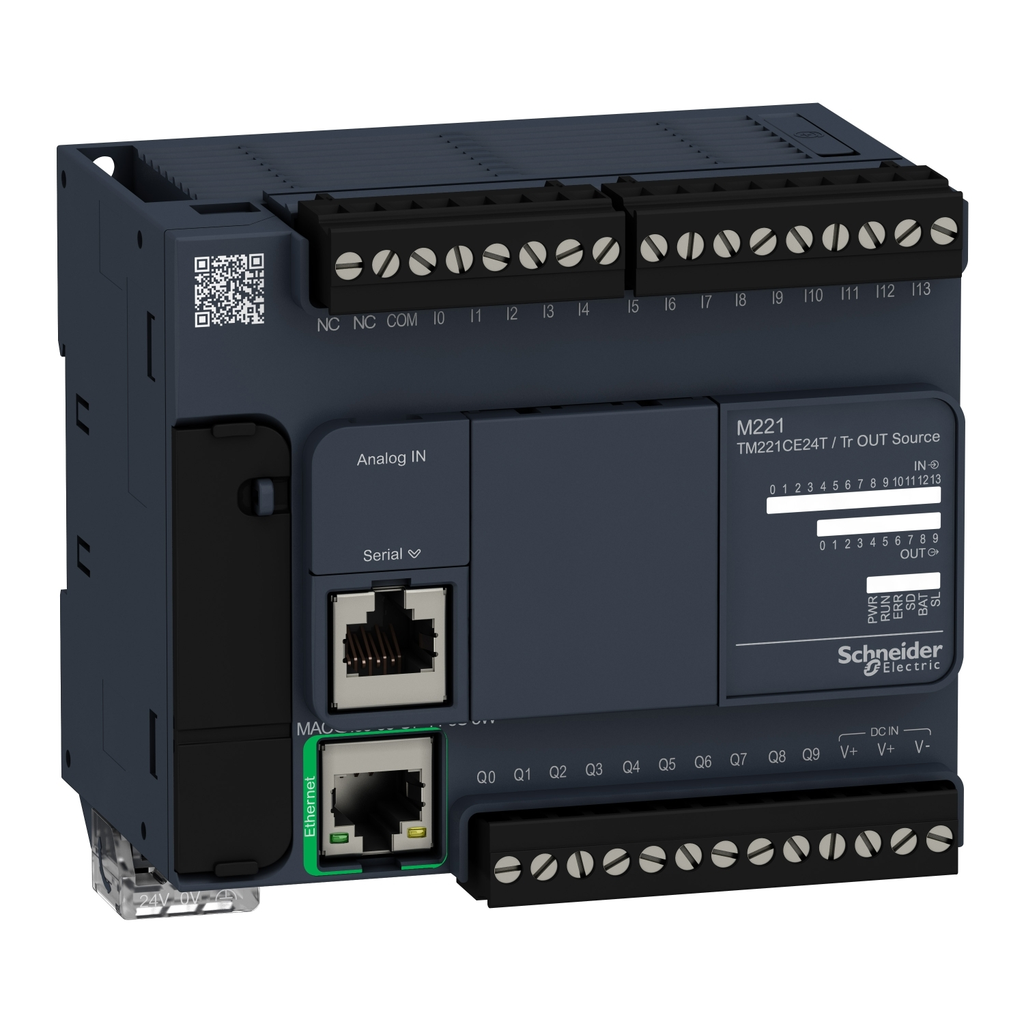

This TM221 controller is part of the Modicon M221 Logic controller range. It has 24 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

• US Rated Supply Voltage
• 24 V DC
• Discrete Input Current
• 7 mA discrete input
• 5 mA fast input
• Mounting Support
• top hat type TH35-15 rail IEC 60715
• top hat type TH35-7.5 rail IEC 60715
• plate or panel with fixing kit
• Clock Drift
• <= 30 s/month 25-25 °C
• Resistance To Magnetic Fields
• 30 A/m 50/60 Hz IEC 61000-4-8
• IP Degree Of Protection
• IP20 with protective cover in place
• Regulation Loop
• adjustable PID regulator up to 14 simultaneous loops
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Mechanical Durability
• 20000000 cycles transistor output
• Response Time
• 35 µs turn-off, I2...I5 input
• 5 µs turn-on, I0, I1, I6, I7 fast input
• 35 µs turn-on, other terminals input
• 5 µs turn-off, I0, I1, I6, I7 fast input
• 100 µs turn-off, other terminals input
• 5 µs turn-on, turn-off, Q0...Q1 output
• 50 µs turn-on, turn-off, Q2...Q3 output
• 300 µs turn-on, turn-off, other terminals output
• Configurable Filtering Time
• 0 ms input
• 3 ms input
• 12 ms input
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.009153485360436548
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1.172945015191789
• 1 kg CO2 eq.
• Resistance To Conducted Disturbances
• 10 V 0.15...80 MHz IEC 61000-4-6
• 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)
• 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Positioning Functions
• PTO 2 pulse/direction 100 kHz)
• PTO 1 CW/CCW 100 kHz)
• Maximum Leakage Current
• 0.1 mA transistor output
• Permitted Overload On Inputs
• +/- 30 V DC 5 min maximum)analog input
• +/- 13 V DC permanent)analog input
• Electrical Connection
• removable screw terminal block for inputs
• removable screw terminal block for outputs
• terminal block, 3 for connecting the 24 V DC power supply
• connector, 4 for analogue inputs
• mini B USB 2.0 connector for a programming terminal
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 20 kg CO2 eq.
• 19.926102686518046
• Data Storage Equipment
• 2 GB SD card optional)
• Discrete Output Number
• 10 transistor 2 fast output
• Protection Type
• overload and short-circuit protection 1 A
• Maximum Cable Distance Between Devices
• shielded cable <10 m fast input
• unshielded cable <30 m output
• unshielded cable <30 m digital input
• unshielded cable <1 m analog input
• shielded cable <3 m fast output
• Supply
• serial)serial link supply 5 V, <200 mA
• Accessories
• TMH2GDB
• TMASD1
• TMAM2
• TCSXCNAMUM3P
• TMACBL1
• Voltage State 1 Guaranteed
• >= 15 V input
• Maximum Number Of I O Expansion Module
• 7 (local I/O-Architecture)
• 14 (remote I/O-Architecture)
• Communication Port Protocol
• USB port USB - SoMachine-Network
• non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
• Ethernet
• Analogue Input Number
• 2 0...10 V
• Reset Time
• 1 s automatic reset
• Vibration Resistance
• 3.5 mm 5-8.4 Hz symmetrical rail
• 3.5 mm 5-8.4 Hz panel mounting
• 1 gn 8.4-150 Hz symmetrical rail
• 1 gn 8.4-150 Hz panel mounting
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Output Frequency
• 100 kHz fast output (PWM/PLS mode) Q0...Q1
• 5 kHz output Q2...Q3
• 0.1 kHz output Q4...Q9
• Counting Input Number
• 4 fast input (HSC mode) 100 kHz 32 bits
• Execution Time For 1 Kinstruction
• 0.3 ms event and periodic task
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 99 kg CO2 eq.
• 98.57894281532788
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4 power lines)
• 2 kV IEC 61000-4-4 relay output)
• 1 kV IEC 61000-4-4 I/O)
• 1 kV IEC 61000-4-4 Ethernet line)
• 1 kV IEC 61000-4-4 serial link)
• Conversion Time
• 1 ms per channel + 1 controller cycle time analog input
• Data Backed Up
• 256 kB built-in flash memory backup of application and data
• Relative Humidity
• 10-95 %, without condensation in operation)
• 10-95 %, without condensation in storage)
• Persona Type Ids
• EU
• OM
• OM8
• Exact Time For Event Task
• 60 µs response time
• Surge Withstand
• 2 kV power lines (AC) common mode IEC 61000-4-5
• 2 kV relay output common mode IEC 61000-4-5
• 1 kV I/O common mode IEC 61000-4-5
• 1 kV shielded cable common mode IEC 61000-4-5
• 0.5 kV power lines (DC) differential mode IEC 61000-4-5
• 1 kV power lines (AC) differential mode IEC 61000-4-5
• 1 kV relay output differential mode IEC 61000-4-5
• 0.5 kV power lines (DC) common mode IEC 61000-4-5
• Memory Capacity
• 256 kB user application and data RAM 10000 instructions
• 256 kB internal variables RAM
• Electromagnetic Emission
• conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011
• conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011
• conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011
• conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011
• radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011
• conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011
• radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
• Maximum Tungsten Load
• <12 W output and fast output
• Resistance To Electrostatic Discharge
• 8 kV in air IEC 61000-4-2
• 4 kV on contact IEC 61000-4-2
• Execution Time Per Instruction
• 0.2 µs Boolean
• Carbon Footprint Of The Distribution Phase A4
• 1.2328853865239249
• 1 kg CO2 eq.
• Insulation
• between input and internal logic 500 V AC
• between fast input and internal logic 500 V AC
• non-insulated between inputs
• between output and internal logic 500 V AC
• non-insulated between analogue input and internal logic
• non-insulated between analogue inputs
• Port Ethernet
• 10BASE-T/100BASE-TX 1 100 m copper cable
• Resistance To Electromagnetic Fields
• 10 V/m 80 MHz...1 GHz IEC 61000-4-3
• 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
• 1 V/m 2...2.7 GHz IEC 61000-4-3
• Integrated Connection Type
• USB port mini B USB 2.0
• non isolated serial link serial 1 RJ45 RS232/RS485
• Ethernet RJ45
• Voltage State 0 Guaranteed
• <= 5 V input
• Shock Resistance
• 147 m/s² 11 ms
• Maximum Power Consumption In W
• 14 W 24 V with max number of I/O expansion module)
• 4.8 W 24 V without I/O expansion module)
• Input Impedance
• 3.4 kOhm discrete input
• 100 kOhm analog input
• 4.9 kOhm fast input
• Power Supply Output Current
• 0.52-0.52 A 5 V expansion bus
• 0.2-0.2 A 24 V expansion bus
• Transmission Rate
• 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485
• 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
• 480 Mbit/s USB
• Local Signalling
• 1 LED (green) for PWR
• 1 LED (green) for RUN
• 1 LED (red) for module error (ERR)
• 1 LED (green) for SD card access (SD)
• 1 LED (red) for BAT
• 1 LED per channel (green) for I/O state
• 1 LED (green) for SL
• Ethernet network activity (green) for ACT
• Ethernet network link (yellow) for Link (Link Status)
• Ambient Air Temperature For Operation
• -10-55 °C horizontal installation)
• -10-35 °C vertical installation)
• Battery Type
• BR2032 or CR2032X lithium non-rechargeable
• Discrete Output Voltage
• 24 V DC
• Discrete Input Number
• 14 , discrete input 4 fast input IEC 61131-2 Type 1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000724_3D-CAD
• Complementary Attributes
• Maximum Current Per Output Common : 5 A
• Maximum Voltage Drop : <1 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : PLC System - PLC CPU
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 19.926102686518046
• Distribution Carbon Footprint : 1.2328853865239249
• Installation Carbon Footprint : 0.009153485360436548
• Use Carbon Footprint : 98.57894281532788
• End Of Life Carbon Footprint : 1.172945015191789
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1403012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1901
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Package Weight Lbs : 621.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : logic controller
• Range Of Product : Modicon M221
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 121 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 120.92002938892207
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1403012EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 621
• Functional Unit Description : To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 240.51456
• Recyclability Potential In : 0
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Taiwan, TW
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.7170612875889416
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.14859082456736245
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.005063201883647956
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0001233272843585717
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.5625119002064322
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0007720336471405649
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.2337225064039778
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.08380948234298345
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.00000519475371383773
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.13150252442865873
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.018415694386049442
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 120.68611380284617
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 19.842100124503126
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 1.2328853865239249
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.009158680114150386
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 98.44744029089922
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 1.154529320805739
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Total Kg Co2 Eq Total Life Cycle : 120.92002938892207
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 19.926102686518046
• Climate Change Total Kg Co2 Eq Distribution A4 : 1.2328853865239249
• Climate Change Total Kg Co2 Eq Installation A5 : 0.009153485360436548
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 98.57894281532788
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 1.172945015191789
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0016068520978387646
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0015997153952531876
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000001054686376
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000039845693434
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000714114981450329
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000495115449801
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2813.3739930962097
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 285.0562437840089
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 15.266863223632702
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.10493616232468014
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2511.4983318318687
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.4476180943749055
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 36639.3761210494
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 35410.888802931295
• Ecotoxicity Fresh Water Ctue Distribution A4 : 5.028457743006807
• Ecotoxicity Fresh Water Ctue Installation A5 : 1.4246796056707385
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 1061.6198159397322
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 160.41436482969596
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000051891791490735
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000080533016998985
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000001394038767287
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000004999027647
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000436420915893042
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000519952971566
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.00001640288645725922
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00001243702413445673
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.00000396586232280249
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00032497256510065586
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00004829465851172843
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.000000143673190946
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000004535933730031
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00026989821621837217
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000659065784230894
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 21.181579742971454
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 20.9364692194972
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.0010165639962947152
• Hazardous Waste Disposed Of Kg Installation A5 : 0.00005462869065767549
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.24403933078730014
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000065553435839306
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000044308050293129
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000001807167846
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000189312777446
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000114957630302
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000019904689297866
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000126011195918923
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000077524215722715
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000284984008705
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000064524281413
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000045598588822503
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000002538883083587
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Impacts Related To Land Use Soil Quality Total Life Cycle : 2.5784040129136616
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.6169726314032722
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 1.9614313815103894
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 266.4635962191271
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 119.8881262004452
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0027203564156243324
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00007015425925211428
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 146.57192924901412
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0007502589929448176
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.08177087854121873
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.015126117065377294
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0023039203126374364
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00005829379025418545
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.06390244979045308
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0003800975824967451
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.00046409437944903986
• Materials For Recycling Kg Manufacturing A1 A3 : 0.00006316870736632201
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0004009256720827179
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.26220017477334684
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.1780669557451425
• Net Use Of Fresh Water M3 Distribution A4 : 0.0014493584682365522
• Net Use Of Fresh Water M3 Installation A5 : 0.000504876564041957
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.08121353878343342
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0009654452124924301
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 19.397323489831535
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 4.806782139399553
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0012488340228856553
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.23709133611689953
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 14.183410527004883
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.16879065328731335
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000420876768526762
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000270313345504187
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000108276515879678
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000036406964661
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000004215204748255
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000098452695687
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.2694893875456197
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.05489366261043489
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.008331177236259975
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00014249360268613884
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.20517865523885565
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0009433988573830534
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.005759075538000257
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0025394547306451564
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00024394728417767355
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000001921362400734
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0029687151649958727
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000676622194148089
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 1.1514516988795143
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.16172586448130635
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.02499067664026187
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000593552990878633
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.9602401492772455
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.003901455489821799
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.437403599811707
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.437403599811707
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3309.32658828671
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 298.73244656164377
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 15.266963035787379
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.10501239937421274
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2993.7711750975745
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.4509911923299497
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 495.95259519050046
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.676202777634824
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00009981215467383805
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00007623704953258652
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 482.2728432657064
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0033730979550443663
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.437403599811707
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.437403599811707
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2805.936589496398
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 277.61884018419727
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 15.266863223632702
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.10493616232468014
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2511.4983318318687
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.4476180943749055
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.856468802526359
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.856468802526359
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 491.0961263879741
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.819733975108468
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00009981215467383805
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00007623704953258652
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 482.2728432657064
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0033730979550443663
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.00005344493353028065
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00005344493353028065
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 11.163885919161212
• Water Use M3 Eq Manufacturing A1 A3 : 7.550364161899834
• Water Use M3 Eq Distribution A4 : 0.06224994621075995
• Water Use M3 Eq Installation A5 : 0.021684448425602056
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 3.488121490748466
• Water Use M3 Eq End Of Life C1 C4 : 0.041465871876549876
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : logic controller
• Range Of Product : Modicon M221
• Output Attributes
• Discrete Output Current : 0.5 A
• Maximum Current Per Output Common : 5 A
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=364333982&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 120.92002938892207
• Circularity Profile : ENVEOLI1403012EN
• Environmental Disclosure : ENVPEP1403012EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Storage Altitude : 0-3000 m
• Pep Code : ENVPEP1403012EN
• Pep Verification Date : 2024-11-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Input Attributes
• Discrete Input Logic : sink or source (positive/negative)
• Discrete Input Voltage Type : DC
• Specifications
• Country of Origin : Taiwan
