logic controller, Modicon M221, 16 IO, 8 DI, 8 DO, transistor, PNP, Ethernet

M221-16IO Tr.PNP ETH BOOK

SQDTM221ME16T TM221ME16T 3606480611315
506.91 / EA
http://schema.org/OutOfStock

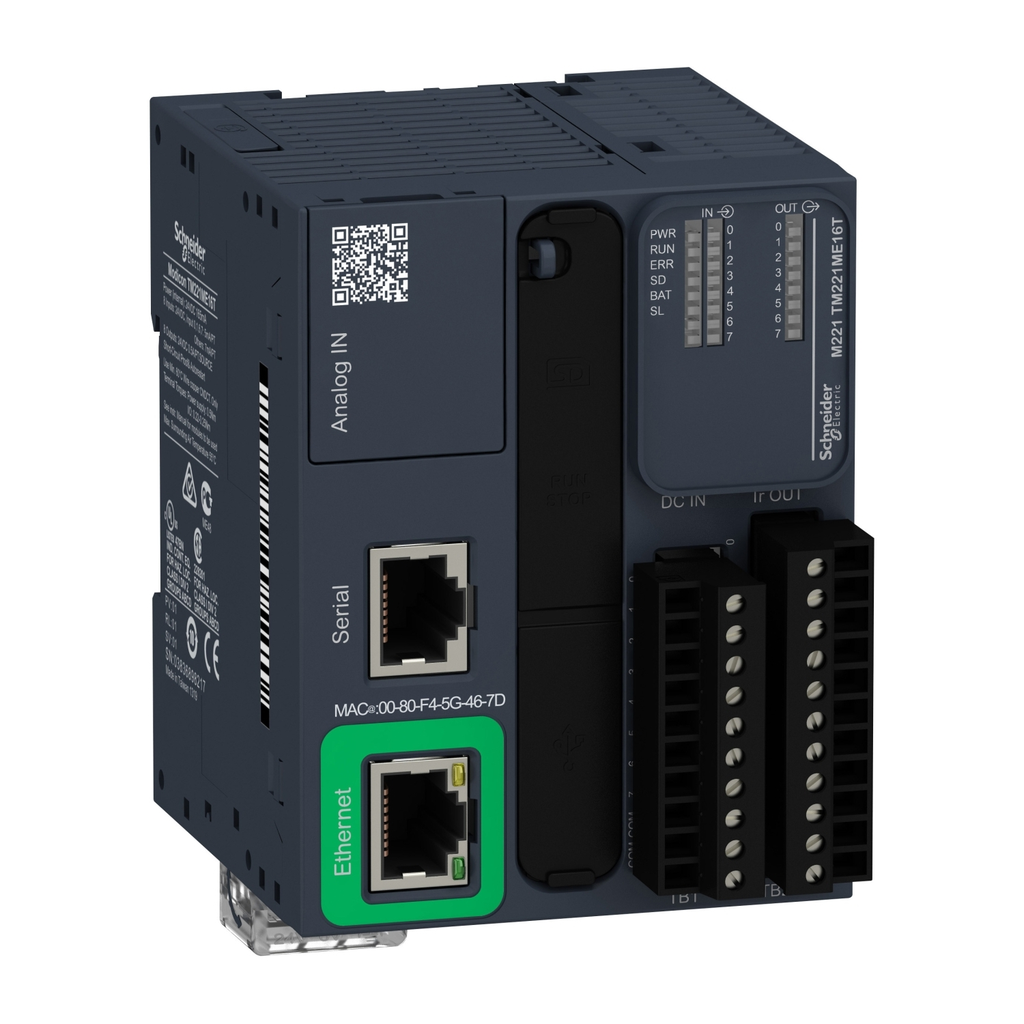

Mayer-DDS-logic controller, Modicon M221, 16 IO, 8 DI, 8 DO, transistor, PNP, Ethernet-1
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete, 4 fast inputs, 8 transistor, 2 fast outputs with ethernet PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet
  • Complementary Attributes
    • Integrated Connection Type : USB port mini B USB 2.0, non isolated serial link serial 1 RJ45 RS232/RS485, Ethernet RJ45
    • Maximum Cable Distance Between Devices : shielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital input, unshielded cable <1 m analog input, shielded cable <3 m fast output
    • Maximum Number Of I O Expansion Module : 7 (local I/O-Architecture), 14 (remote I/O-Architecture)
    • Maximum Power Consumption In W : 22.9 W 24 V with max number of I/O expansion module), 4 W 24 V without I/O expansion module)
    • Maximum Tungsten Load : <12 W output and fast output, <12 W output and fast output
    • Maximum Current Per Output Common : 4 A
    • Maximum Leakage Current : 0.1 mA transistor output
    • Maximum Voltage Drop : <1 V
    • US Rated Supply Voltage : 24 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Clock Drift : <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
    • Configurable Filtering Time : 0 ms input, 3 ms input, 12 ms input
    • Electrical Connection : terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, mini B USB 2.0 connector for a programming terminal, removable screw terminal block, 10 for inputs, removable screw terminal block, 11 for outputs
    • Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
    • Execution Time For 1 Kinstruction : 0.3 ms event and periodic task, 0.7 ms other instruction
    • Insulation : between input and internal logic 500 V AC, between fast input and internal logic 500 V AC, non-insulated between inputs, between output and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs
    • Local Signalling : 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED per channel (green) for I/O state, 1 LED (green) for SL, Ethernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status)
    • Memory Capacity : 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
    • Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    • Positioning Functions : PTO 2 pulse/direction 100 kHz), PTO 1 CW/CCW 100 kHz)
    • Protection Type : short-circuit and overload protection with automatic reset, short-circuit protection on output, overload and short-circuit protection 1 A
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2...2.7 GHz IEC 61000-4-3
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
    • Response Time : 35 µs turn-off, I2...I5 input, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 5 µs turn-off, I0, I1, I6, I7 fast input, 100 µs turn-off, other terminals input, 5 µs turn-on, turn-off, Q0...Q1 output, 50 µs turn-on, turn-off, Q2...Q3 output, 300 µs turn-on, turn-off, other terminals output
    • Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s USB
    • Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting, 1 gn 8.4-150 Hz symmetrical rail, 1 gn 8.4-150 Hz panel mounting
    • Voltage State 0 Guaranteed : <= 5 V input, <= 5 V input
    • Voltage State 1 Guaranteed : >= 15 V input, >= 15 V input
    • Carbon Footprint Of The Distribution Phase A4 : 0.8536887539537644, 0.9 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.8121841490055867, 0.8 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.006338162165841732
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 14 kg CO2 eq., 13.797462407733914
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 82 kg CO2 eq., 82.14911901277323
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403012EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Conversion Time : 1 ms per channel + 1 controller cycle time analog input
    • Data Backed Up : 256 kB built-in flash memory backup of application and data
    • Data Storage Equipment : 2 GB SD card optional)
    • Exact Time For Event Task : 60 µs response time
    • Execution Time Per Instruction : 0.2 µs Boolean
    • Mechanical Durability : 20000000 cycles transistor output
    • Package Weight Lbs : 430.0 g
    • Port Ethernet : 10BASE-T/100BASE-TX 1 100 m copper cable
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
    • Regulation Loop : adjustable PID regulator up to 14 simultaneous loops
    • Reset Time : 1 s automatic reset
    • Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
    • Returnability : Yes
    • Shock Resistance : 147 m/s² 11 ms
    • Supply : serial 1)serial link supply 5 V, <200 mA
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 98 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : IRINA BELOZEROVA
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 97.61879248563234
    • Circularity Profile : ENVEOLI1403012EN
    • Environmental Disclosure : ENVPEP1403012EN
    • IP Degree Of Protection : IP20 with protective cover in place
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
  • Output Attributes
    • Output Frequency : 100 kHz fast output (PWM/PLS mode) Q0...Q1, 5 kHz output Q2...Q3, 0.1 kHz output Q4...Q6
    • Power Supply Output Current : 0.52-0.52 A 5 V expansion bus, 0.49-0.49 A 24 V expansion bus
    • Discrete Output Current : 0.5 A
    • Discrete Output Number : 8 transistor 2 fast output
    • Discrete Output Voltage : 24 V DC
    • Maximum Current Per Output Common : 4 A
  • Surge Protection And Filtering Attributes
    • Configurable Filtering Time : 0 ms input, 3 ms input, 12 ms input
    • Surge Withstand : 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV power lines (DC) common mode IEC 61000-4-5
  • Input Attributes
    • Discrete Input Current : 7 mA discrete input, 5 mA fast input
    • Input Impedance : 100 kOhm analog input, 3.4 kOhm input, 4.9 kOhm fast input
    • Permitted Overload On Inputs : +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
    • Analogue Input Number : 2 0...10 V
    • Counting Input Number : 4 fast input (HSC mode) 100 kHz 32 bits
    • Discrete Input Logic : sink or source (positive/negative)
    • Discrete Input Number : 8 , discrete input 4 fast input IEC 61131-2 Type 1
    • Discrete Input Voltage Type : DC
  • Batteries & Runtime Attributes
    • Battery Type : BR2032 or CR2032X lithium non-rechargeable
