logic controller, Modicon M221, 16 IO, relay, spring

M221-16IO RELAY SPRING BOOK

SQDTM221M16RG TM221M16RG 3606480611261
427.41 / EA
http://schema.org/OutOfStock

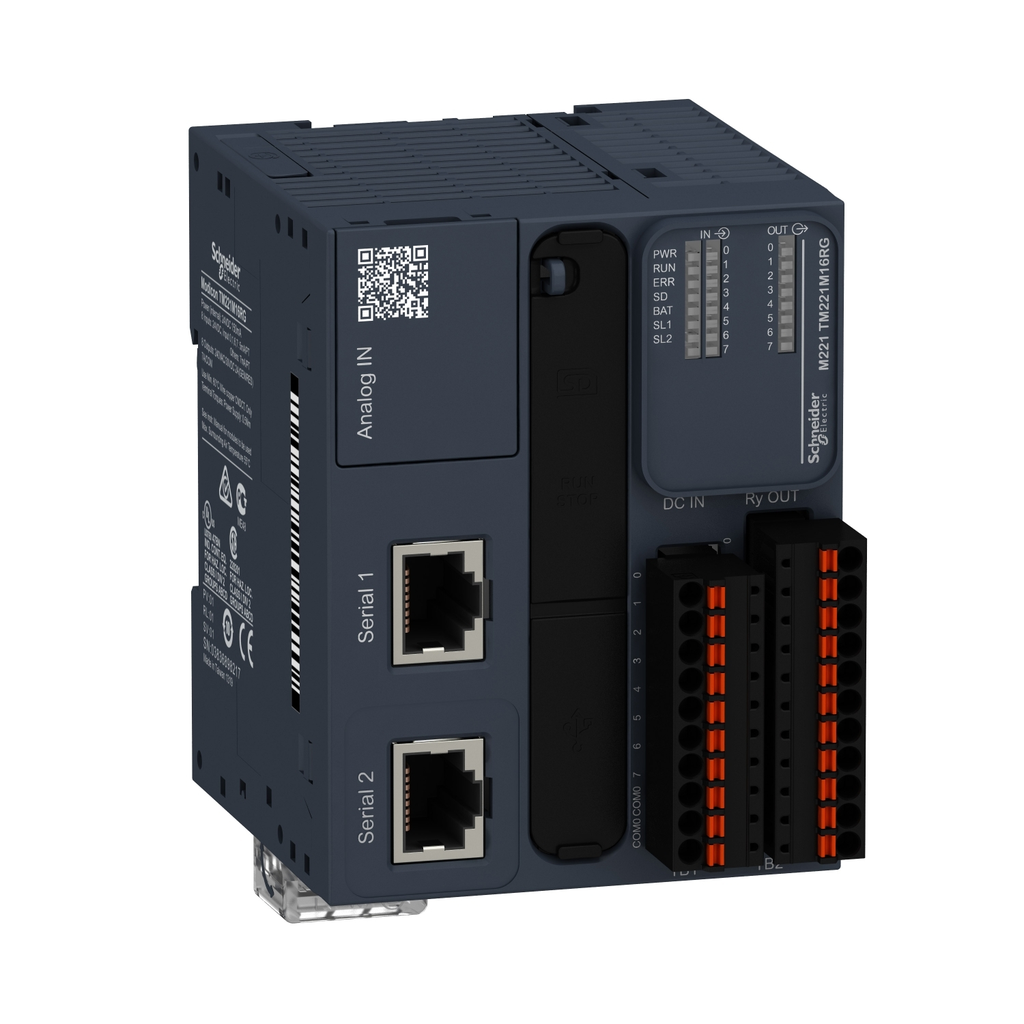

Mayer-DDS-logic controller, Modicon M221, 16 IO, relay, spring-1
  • Country of Origin: Taiwan
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay spring outputs with 10bit input resolution, normally opened relay output.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay spring outputs with 10bit input resolution, normally opened relay output.
  • US Rated Supply Voltage
    • 24 V DC
  • Discrete Input Current
    • 7 mA discrete input
    • 5 mA fast input
  • Mounting Support
    • top hat type TH35-15 rail IEC 60715
    • top hat type TH35-7.5 rail IEC 60715
    • plate or panel with fixing kit
  • Clock Drift
    • <= 30 s/month 25-25 °C
  • Resistance To Magnetic Fields
    • 30 A/m 50/60 Hz IEC 61000-4-8
  • IP Degree Of Protection
    • IP20 with protective cover in place
  • Regulation Loop
    • adjustable PID regulator up to 14 simultaneous loops
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Mechanical Durability
    • 20000000 cycles relay output
  • Response Time
    • 35 µs turn-off, I2...I5 input
    • 10 ms turn-on output
    • 10 ms turn-off output
    • 5 µs
  • Configurable Filtering Time
    • 0 ms input
    • 3 ms input
    • 12 ms input
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.006485561285977588
  • Minimum Load
    • 1 mA 5 V DC relay output
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.8310721524708329
    • 0.8 kg CO2 eq.
  • Resistance To Conducted Disturbances
    • 10 V 0.15...80 MHz IEC 61000-4-6
    • 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)
    • 3 V 0.1...80 MHz Marine specification (LR
  • Permitted Overload On Inputs
    • +/- 30 V DC 5 min maximum)analog input
    • +/- 13 V DC permanent)analog input
    • +/- 13 V DC permanent)an
  • Electrical Connection
    • terminal block, 3 for connecting the 24 V DC power supply
    • connector, 4 for analogue inputs
    • connector, 4 f
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 14 kg CO2 eq.
    • 14.118333626518424
  • Data Storage Equipment
    • 2 GB SD card optional)
  • Discrete Output Number
    • 8 relay
  • Protection Type
    • without protection 5 A
  • Maximum Cable Distance Between Devices
    • shielded cable <10 m fast input
    • unshielded cable <30 m output
    • unshielded cable <30 m digital input
    • unshielded cable <30 m digital
  • Supply
    • serial 1)serial link supply 5 V, <200 mA
  • Accessories
    • TMH2GDB
    • TMASD1
    • TMAM2
    • TCSXCNAMUM3P
    • TMACBL1
    • TMAT2MSET
    • TMAT2MSETG
    • TMAT2PSET
  • Electrical Durability
    • 100000 cycles AC-12, 120 V, 240 VA, resistive
    • 100000 cycles AC-12, 240
  • Voltage State 1 Guaranteed
    • >= 15 V input
  • Maximum Number Of I O Expansion Module
    • 7 (local I/O-Architecture)
    • 14 (remote I/O-Architecture)
  • Communication Port Protocol
    • USB port USB - SoMachine-Network
    • non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
  • Analogue Input Number
    • 2 0...10 V
  • Vibration Resistance
    • 3.5 mm 5-8.4 Hz symmetrical rail
    • 3.5 mm 5-8.4 Hz panel mounting
    • 1 gn 8.4-150 Hz symmetrical rail
    • 1 gn 8.4-150 Hz symmetrical r
  • Counting Input Number
    • 4 fast input (HSC mode) 100 kHz 32 bits
  • Execution Time For 1 Kinstruction
    • 0.3 ms event and periodic task
    • 0.7 ms other instruction
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 74 kg CO2 eq.
    • 73.9342071114959
  • Resistance To Fast Transients
    • 2 kV IEC 61000-4-4 power lines)
    • 2 kV IEC 61000-4-4 relay output)
    • 1 kV IEC 61000-4-4 I/O)
    • 1 kV IEC 61
  • Conversion Time
    • 1 ms per channel + 1 controller cycle time analog input
  • Data Backed Up
    • 256 kB built-in flash memory backup of application and data
  • Relative Humidity
    • 10-95 %, without condensation in operation)
    • 10-95 %, without condensation in storage)
    • 10-95 %, without condensation in stora
  • Exact Time For Event Task
    • 60 µs response time
  • Surge Withstand
    • 2 kV power lines (AC) common mode IEC 61000-4-5
    • 2 kV relay output common mode IEC 61000-4-5
    • 2 kV relay output
  • Memory Capacity
    • 256 kB user application and data RAM 10000 instructions
    • 256 kB internal variables RAM
  • Electromagnetic Emission
    • conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011
    • conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55
  • Output Voltage Limits
    • 125 V DC
    • 277 V AC
  • Resistance To Electrostatic Discharge
    • 8 kV in air IEC 61000-4-2
    • 4 kV on contact IEC 61000-4-2
  • Execution Time Per Instruction
    • 0.2 µs Boolean
  • Carbon Footprint Of The Distribution Phase A4
    • 0.8735419807898985
    • 0.9 kg CO2 eq.
  • Insulation
    • between input and internal logic 500 V AC
    • between fast input and internal logic 500 V AC
    • between fast input and internal lo
  • Resistance To Electromagnetic Fields
    • 10 V/m 80 MHz...1 GHz IEC 61000-4-3
    • 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
    • 1 V/m 2...2.7 GHz IEC 61000-4-3
    • 1 V/m
  • Integrated Connection Type
    • USB port mini B USB 2.0
    • non isolated serial link serial 1 RJ45 RS485
    • non isolated serial link s
  • Voltage State 0 Guaranteed
    • <= 5 V input
  • Shock Resistance
    • 98 m/s² 11 ms
  • Maximum Power Consumption In W
    • 22.5 W 24 V with max number of I/O expansion module)
    • 3.6 W 24 V without I/O expansion module)
    • 3.6 W 24 V wi
  • Input Impedance
    • 100 kOhm analog input
    • 3.4 kOhm input
    • 4.9 kOhm fast input
  • Power Supply Output Current
    • 0.52-0.52 A 5 V expansion bus
    • 0.46-0.46 A 24 V expansion bus
  • Transmission Rate
    • 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485
    • 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
    • 1.2...115.2 kbit/s (
  • Local Signalling
    • 1 LED (green) for PWR
    • 1 LED (green) for RUN
    • 1 LED (red) for module error (ERR)
    • 1 LED (green) for
  • Ambient Air Temperature For Operation
    • -10-55 °C horizontal installation)
    • -10-35 °C vertical installation)
  • Battery Type
    • BR2032 or CR2032X lithium non-rechargeable
  • Switching Frequency
    • 20 switching operations/minute with maximum load
  • Discrete Output Voltage
    • 5...125 V DC
    • 5...250 V AC
  • Discrete Input Number
    • 8 , discrete input IEC 61131-2 Type 1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000728_3D-CAD
  • Complementary Attributes
    • Maximum Current Per Output Common : 7 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 14.11833363
    • Distribution Carbon Footprint : 0.873541981
    • Installation Carbon Footprint : 0.006485561
    • Use Carbon Footprint : 73.93420711
    • End Of Life Carbon Footprint : 0.831072152
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403012EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    • Package Weight Lbs : 422.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
    • Reset Time : 1 s
    • Returnability : No
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 90 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 89.76364043
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 11/1/2024
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 440
    • Functional Unit Description : To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 180.38592
    • Energy Model Manufacturing A1 A3 : Taiwan, TW
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Recyclability Potential In : 0
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.531387517
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.105281744
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.003587454
    • Acidification Ap Mole Of H Equiv Installation A5 : 8.73817E-05
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.421883925
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000547013
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.17105329
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.05938192
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -3.68066E-06
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.098626893
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.013048157
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 89.59245034
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 14.0588149
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.873541981
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.006489242
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 73.83558022
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.818023995
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 89.76364043
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 14.11833363
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.873541981
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.006485561
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 73.93420711
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.831072152
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.001138806
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.001133454
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 7.47282E-11
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 2.82321E-10
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 5.35586E-06
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -3.50806E-09
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2097.513106
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 201.9722178
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 10.81710116
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.074350904
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1883.623749
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.025687539
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 26004.28696
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 25089.8407
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 3.562836404
    • Ecotoxicity Fresh Water Ctue Installation A5 : 1.009434825
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 796.214862
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 113.6591313
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 3.85768E-06
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 5.70604E-07
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 9.87725E-09
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 3.54198E-10
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 3.27316E-06
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 3.68405E-09
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
    • Exported Energy Mj By Energy Vector Total Life Cycle : 1.1622E-05
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 8.81206E-06
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 2.80995E-06
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000241446
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 3.42184E-05
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 1.01797E-07
    • Freshwater Eutrophication Kg P Eq Installation A5 : 3.21387E-08
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000202424
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 4.66971E-06
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 15.00788259
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 14.8342133
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.000720271
    • Hazardous Waste Disposed Of Kg Installation A5 : 3.87063E-05
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.172910315
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 4.64945E-07
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 3.13938E-07
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 1.28044E-11
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 1.34135E-09
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 8.62182E-09
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.41032E-07
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 9.11741E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 5.49286E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 2.01921E-09
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 4.57177E-10
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 3.41989E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.79889E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 1.908220006
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.43714647
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 1.471073536
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 194.8763438
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 84.94488813
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.001927467
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 4.97067E-05
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 109.9289469
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.000531584
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.060587238
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.010717378
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.001632407
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 4.13032E-05
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.047926837
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000269312
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.000328827
    • Materials For Recycling Kg Manufacturing A1 A3 : 4.47572E-05
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.00028407
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.189145452
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.126166603
    • Net Use Of Fresh Water M3 Distribution A4 : 0.001026921
    • Net Use Of Fresh Water M3 Installation A5 : 0.000357723
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.060910154
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000684051
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 14.33179574
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 3.405771564
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000884842
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.16798742
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 10.6375579
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.119594022
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 2.99954E-06
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.91526E-06
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 7.67177E-07
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 2.57956E-10
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 3.1614E-07
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 6.97571E-10
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.199450372
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.03889406
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.005902928
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.000100962
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.153883991
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000668431
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.004203603
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.001799292
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.000172845
    • Radioactive Waste Disposed Of Kg Installation A5 : 1.36135E-07
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.002226536
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 4.7941E-06
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.855660115
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.114588374
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.01770676
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000420553
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.720180112
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.002764316
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.269657945
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.269657945
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 2468.910317
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 211.662281
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 10.81717188
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.074404921
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2245.328381
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.028077495
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 371.3972103
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.69006316
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 7.07204E-05
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.40166E-05
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 361.7046324
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.002389957
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.269657945
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.269657945
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2092.243448
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 196.7025599
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 10.81710116
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.074350904
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1883.623749
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.025687539
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.440976285
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.440976285
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 367.956234
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.249086874
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 7.07204E-05
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.40166E-05
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 361.7046324
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.002389957
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 3.78676E-05
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 3.78676E-05
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 8.054635963
    • Water Use M3 Eq Manufacturing A1 A3 : 5.349694414
    • Water Use M3 Eq Distribution A4 : 0.044106242
    • Water Use M3 Eq Installation A5 : 0.015364182
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 2.616091118
    • Water Use M3 Eq End Of Life C1 C4 : 0.029380006
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
  • Output Attributes
    • Discrete Output Current : 2:00 AM
    • Maximum Current Per Output Common : 7:00 AM
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=339856892&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 89.76364043
    • Circularity Profile : ENVEOLI1403012EN
    • Environmental Disclosure : ENVPEP1403012EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 11/1/2024
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Input Attributes
    • Discrete Input Logic : sink or source (positive/negative)
    • Discrete Input Voltage Type : DC
  • Specifications
    • Country of Origin : Taiwan
