logic controller, Modicon M221, 16 IO, relay

M221-16IO RELAY BOOK

SQDTM221M16R TM221M16R 3606480611254
457.70 / EA
http://schema.org/OutOfStock

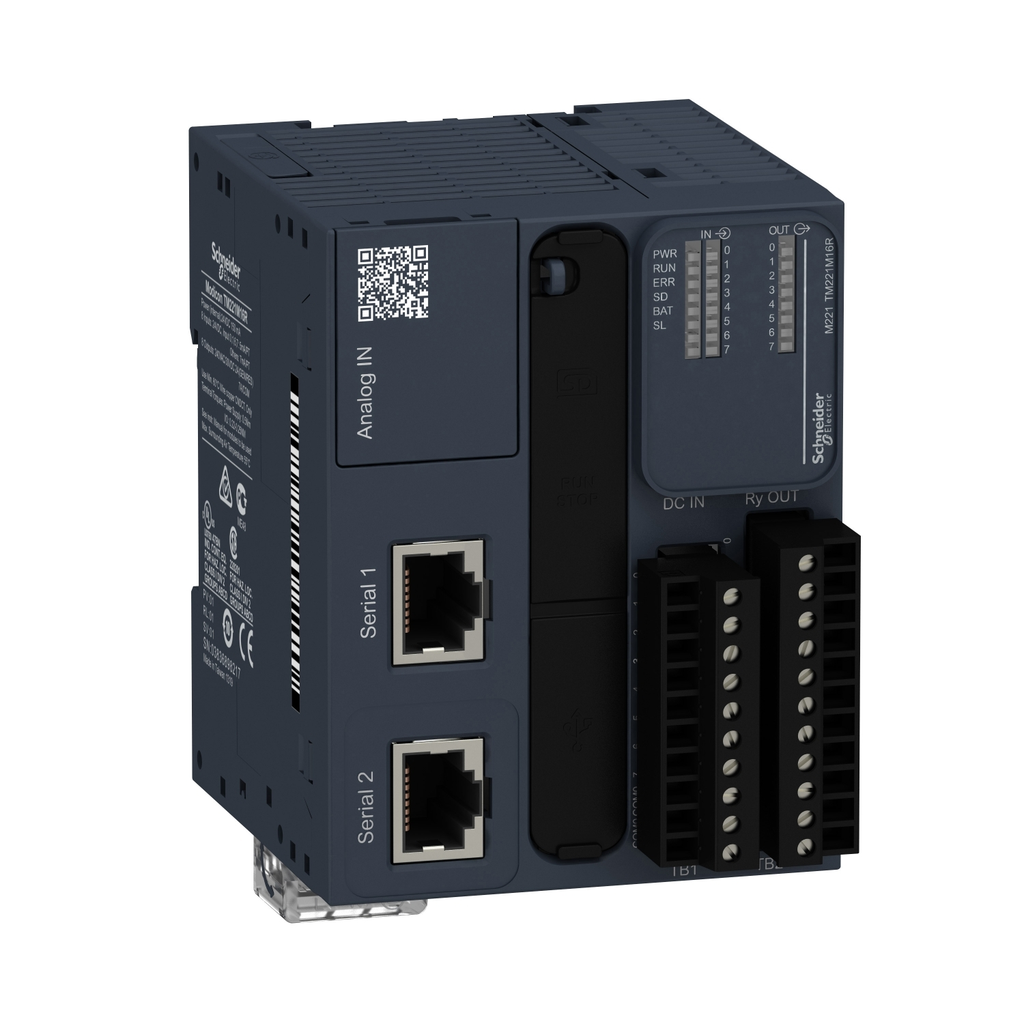

Mayer-DDS-logic controller, Modicon M221, 16 IO, relay-1
  • Country of Origin: Taiwan
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
  • US Rated Supply Voltage
    • 24 V DC
  • Discrete Input Current
    • 7 mA discrete input
    • 5 mA fast input
  • Mounting Support
    • top hat type TH35-15 rail IEC 60715
    • top hat type TH35-7.5 rail IEC 60715
    • plate or panel with fixing kit
  • Clock Drift
    • <= 30 s/month 25-25 °C
  • Resistance To Magnetic Fields
    • 30 A/m 50/60 Hz IEC 61000-4-8
  • IP Degree Of Protection
    • IP20 with protective cover in place
  • Regulation Loop
    • adjustable PID regulator up to 14 simultaneous loops
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Mechanical Durability
    • 20000000 cycles relay output
  • Response Time
    • 35 µs turn-off, I2...I5 input
    • 10 ms turn-on output
    • 10 ms turn-off output
    • 5 µs turn-on, I0, I1, I6, I7 fast input
    • 35 µs turn-on, other terminals input
    • 5 µs turn-off, I0, I1, I6, I7 fast input
    • 100 µs turn-off, other terminals input
  • Configurable Filtering Time
    • 0 ms input
    • 3 ms input
    • 12 ms input
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0090520269
  • Minimum Load
    • 1 mA 5 V DC relay output
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.2180357788
    • 0.2 kg CO2 eq.
  • Resistance To Conducted Disturbances
    • 10 V 0.15...80 MHz IEC 61000-4-6
    • 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)
    • 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
  • Permitted Overload On Inputs
    • +/- 30 V DC 5 min maximum)analog input
    • +/- 13 V DC permanent)analog input
  • Electrical Connection
    • terminal block, 3 for connecting the 24 V DC power supply
    • connector, 4 for analogue inputs
    • mini B USB 2.0 connector for a programming terminal
    • removable screw terminal block, 10 for inputs
    • removable screw terminal block, 11 for outputs
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 8 kg CO2 eq.
    • 8.386935828
  • Data Storage Equipment
    • 2 GB SD card optional)
  • Discrete Output Number
    • 8 relay
  • Protection Type
    • without protection 5 A
  • Maximum Cable Distance Between Devices
    • shielded cable <10 m fast input
    • unshielded cable <30 m output
    • unshielded cable <30 m digital input
    • unshielded cable <1 m analog input
  • Supply
    • serial 1)serial link supply 5 V, <200 mA
  • Accessories
    • TMH2GDB
    • TMASD1
    • TMAM2
    • TCSXCNAMUM3P
    • TMACBL1
    • TMAT2MSET
    • TMAT2MSETG
    • TMAT2PSET
  • Electrical Durability
    • 100000 cycles AC-12, 120 V, 240 VA, resistive
    • 100000 cycles AC-12, 240 V, 480 VA, resistive
    • 300000 cycles AC-12, 120 V, 80 VA, resistive
    • 300000 cycles AC-12, 240 V, 160 VA, resistive
    • 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive
    • 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive
    • 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive
    • 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive
    • 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive
    • 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive
    • 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive
    • 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive
    • 100000 cycles DC-12, 24 V, 48 W, resistive
    • 300000 cycles DC-12, 24 V, 16 W, resistive
    • 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)
    • 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
  • Voltage State 1 Guaranteed
    • >= 15 V input
  • Maximum Number Of I O Expansion Module
    • 7 (local I/O-Architecture)
    • 14 (remote I/O-Architecture)
  • Communication Port Protocol
    • USB port USB - SoMachine-Network
    • non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
  • Analogue Input Number
    • 2 0...10 V
  • Vibration Resistance
    • 3.5 mm 5-8.4 Hz symmetrical rail
    • 3.5 mm 5-8.4 Hz panel mounting
    • 1 gn 8.4-150 Hz symmetrical rail
    • 1 gn 8.4-150 Hz panel mounting
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Counting Input Number
    • 4 fast input (HSC mode) 100 kHz 32 bits
  • Execution Time For 1 Kinstruction
    • 0.3 ms event and periodic task
    • 0.7 ms other instruction
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 88 kg CO2 eq.
    • 88.3770994987
  • Resistance To Fast Transients
    • 2 kV IEC 61000-4-4 power lines)
    • 2 kV IEC 61000-4-4 relay output)
    • 1 kV IEC 61000-4-4 I/O)
    • 1 kV IEC 61000-4-4 Ethernet line)
    • 1 kV IEC 61000-4-4 serial link)
  • Conversion Time
    • 1 ms per channel + 1 controller cycle time analog input
  • Data Backed Up
    • 256 kB built-in flash memory backup of application and data
  • Relative Humidity
    • 10-95 %, without condensation in operation)
    • 10-95 %, without condensation in storage)
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Exact Time For Event Task
    • 60 µs response time
  • Surge Withstand
    • 2 kV power lines (AC) common mode IEC 61000-4-5
    • 2 kV relay output common mode IEC 61000-4-5
    • 1 kV I/O common mode IEC 61000-4-5
    • 1 kV shielded cable common mode IEC 61000-4-5
    • 0.5 kV power lines (DC) differential mode IEC 61000-4-5
    • 1 kV power lines (AC) differential mode IEC 61000-4-5
    • 1 kV relay output differential mode IEC 61000-4-5
    • 0.5 kV power lines (DC) common mode IEC 61000-4-5
  • Memory Capacity
    • 256 kB user application and data RAM 10000 instructions
    • 256 kB internal variables RAM
  • Electromagnetic Emission
    • conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011
    • conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011
    • conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011
    • conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011
    • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011
    • conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011
    • radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
  • Output Voltage Limits
    • 125 V DC
    • 277 V AC
  • Resistance To Electrostatic Discharge
    • 8 kV in air IEC 61000-4-2
    • 4 kV on contact IEC 61000-4-2
  • Execution Time Per Instruction
    • 0.2 µs Boolean
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0567696045
    • 0.1 kg CO2 eq.
  • Insulation
    • between input and internal logic 500 V AC
    • between fast input and internal logic 500 V AC
    • non-insulated between inputs
    • between output and internal logic 500 V AC
    • between output groups 500 V AC
    • non-insulated between analogue input and internal logic
    • non-insulated between analogue inputs
  • Resistance To Electromagnetic Fields
    • 10 V/m 80 MHz...1 GHz IEC 61000-4-3
    • 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
    • 1 V/m 2...2.7 GHz IEC 61000-4-3
  • Integrated Connection Type
    • USB port mini B USB 2.0
    • non isolated serial link serial 1 RJ45 RS485
    • non isolated serial link serial 2 RJ45 RS232/RS485
  • Voltage State 0 Guaranteed
    • <= 5 V input
  • Shock Resistance
    • 98 m/s² 11 ms
  • Maximum Power Consumption In W
    • 22.5 W 24 V with max number of I/O expansion module)
    • 3.6 W 24 V without I/O expansion module)
  • Input Impedance
    • 100 kOhm analog input
    • 3.4 kOhm input
    • 4.9 kOhm fast input
  • Power Supply Output Current
    • 0.52-0.52 A 5 V expansion bus
    • 0.46-0.46 A 24 V expansion bus
  • Transmission Rate
    • 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485
    • 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
    • 480 Mbit/s USB
  • Local Signalling
    • 1 LED (green) for PWR
    • 1 LED (green) for RUN
    • 1 LED (red) for module error (ERR)
    • 1 LED (green) for SD card access (SD)
    • 1 LED (red) for BAT
    • 1 LED (green) for SL1
    • 1 LED (green) for SL2
    • 1 LED per channel (green) for I/O state
  • Ambient Air Temperature For Operation
    • -10-55 °C horizontal installation)
    • -10-35 °C vertical installation)
  • Battery Type
    • BR2032 or CR2032X lithium non-rechargeable
  • Switching Frequency
    • 20 switching operations/minute with maximum load
  • Discrete Output Voltage
    • 5...125 V DC
    • 5...250 V AC
  • Discrete Input Number
    • 8 , discrete input IEC 61131-2 Type 1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000727_3D-CAD
  • Complementary Attributes
    • Maximum Current Per Output Common : 7 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-09
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 8.386935828
    • Distribution Carbon Footprint : 0.0567696045
    • Installation Carbon Footprint : 0.0090520269
    • Use Carbon Footprint : 88.3770994987
    • End Of Life Carbon Footprint : 0.2180357788
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403012EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 440.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
    • Reset Time : 1 s
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 97 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 97.0478927368
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 2019-01-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 440
    • Functional Unit Description : to perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 180.38
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: Taiwan
    • Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.001211707
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0012040243
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000023
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000007679
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000011
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 1088.9572409058
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 84.3892991958
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.7976038076
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.1173983259
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1003.1670764548
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.4858631216
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0005262221
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000494652
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0004767569
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 3.9499056186
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 3.2577186936
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000004424
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0460732379
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.6461132447
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0592508781
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0592508781
    • Materials For Recycling Kg Total Life Cycle : 0.2154851797
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0252857377
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.1664027573
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0237966847
    • Net Use Of Fresh Water M3 Total Life Cycle : 320.5075226868
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0654222879
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000050806
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000009885
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 320.4419832213
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0001111085
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 331.5924004432
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.0856129985
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0020170097
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0012243164
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 329.5016858855
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0018602331
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000068749
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000011099
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000001
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000057572
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000078
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.221408066
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0013371147
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000014366
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000002416
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.2200652775
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000039956
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1661.5762285532
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 119.4636468078
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.8016477925
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1180771377
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1540.599438138
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.5934186772
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1892.3282213717
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 125.7462662071
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.8026587888
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.1182648941
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1765.0670711994
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.5939602823
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 230.7296941891
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.2827638273
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0010697062
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0001835391
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 224.4451337998
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0005433166
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.7620810766
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.7620810766
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1656.8173248933
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 114.7047431479
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.8016477925
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1180771377
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1540.599438138
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.5934186772
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.0773280814
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.0773280814
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 227.6523661077
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.2054357459
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0010697062
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0001835391
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 224.4451337998
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0005433166
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0128122107
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0128122107
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 4723.0527575385
    • Air Pollution M3 Manufacturing A1 A3 : 912.2074511735
    • Air Pollution M3 Distribution A4 : 2.4149089119
    • Air Pollution M3 Installation A5 : 0.3610556376
    • Air Pollution M3 Operational Energy Use B6 : 3803.72516325
    • Air Pollution M3 End Of Life C1 C4 : 4.3441785656
    • Water Pollution M3 Total Life Cycle : 4554.8897511764
    • Water Pollution M3 Manufacturing A1 A3 : 888.0879698014
    • Water Pollution M3 Distribution A4 : 9.3358279993
    • Water Pollution M3 Installation A5 : 1.3733661579
    • Water Pollution M3 Operational Energy Use B6 : 3646.7553149381
    • Water Pollution M3 End Of Life C1 C4 : 9.3372722797
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.3917621745
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0221639081
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0305620485
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0226831446
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.000259205
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000377311
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.3686429013
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0001391925
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 97.0478927368
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 8.386935828
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.0567696045
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0090520269
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 88.3770994987
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.2180357788
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0018750369
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000184969
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000028193
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0202560852
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000114698
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0081659609
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000597015
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000091668
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0222577695
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000694497
  • General Attributes
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
  • Output Attributes
    • Discrete Output Current : 2 A
    • Maximum Current Per Output Common : 7 A
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=339856891&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 97.0478927368
    • Circularity Profile : ENVEOLI1403012EN
    • Environmental Disclosure : ENVPEP1403012EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 2019-01-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • Input Attributes
    • Discrete Input Logic : sink or source (positive/negative)
    • Discrete Input Voltage Type : DC
  • Specifications
    • Country of Origin : Taiwan
