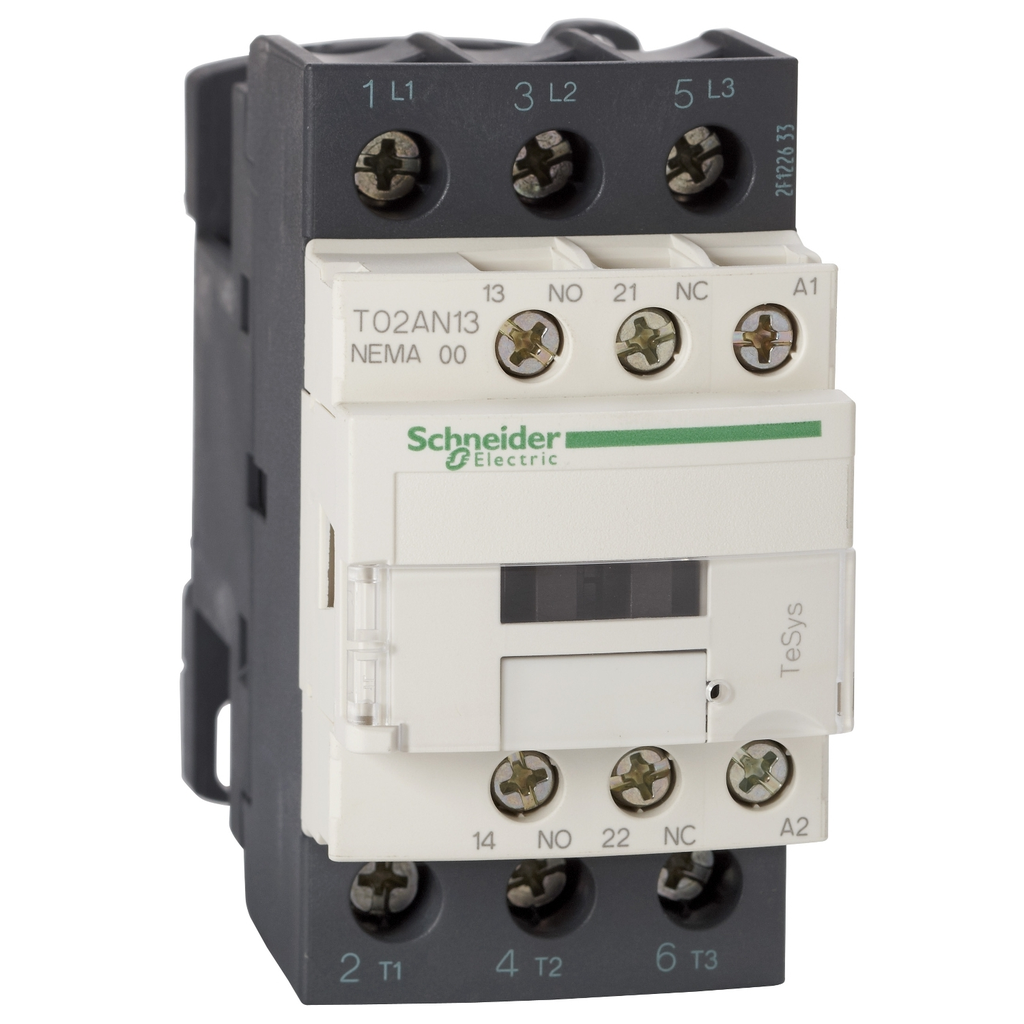

NEMA Contactor, TeSys N, nonreversing, Size 00, 9A, 2HP at 460VAC, 3 pole, 3 phase, 24VAC 50/60Hz coil, open

Contactor TeSys NEMA Sz00 3P 2

SQDT02AN13B7 T02AN13B7 3606480573026
259.03 / EA
http://schema.org/OutOfStock
NEMA Contactor, TeSys N, nonreversing, Size 00, 9A, 2HP at 460VAC, 3 pole, 3 phase, 24VAC 50/60Hz coil, open
  • Depth: 3.66 in
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 00 nonreversing contactor mounts on 35mm DIN rail and has a 9 amperage continuous current rating. This contactor has 0.33 HP at 115 VAC and 1 HP at 230 VAC single phase ratings. The contactor also has ratings of 1.5 HP at 200 to 230 VAC and 2 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 24 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.92 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 00 nonreversing contactor mounts on 35mm DIN rail and has a 9 amperage continuous current rating. This contactor has 0.33 HP at 115 VAC and 1 HP at 230 VAC single phase ratings. The contactor also has ratings of 1.5 HP at 200 to 230 VAC and 2 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 24 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.92 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Maximum Horse Power Rating : 1.5 hp 200 V AC, 1.5 hp 230 V AC, 2 hp 460 V AC, 2 hp 575 V AC
    • Control Circuit : common control circuit
    • Line Rated Current : 9 A
    • Uc Control Circuit Voltage : 24 V AC
    • Ue Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI110229EN
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1904
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Contactor Application : non-reversing
    • Control Circuit : common control circuit
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Phase : 3 phase
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range Of Product : TeSys N
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP110229EN
    • Offer Owner Code : 190788
    • Height Nominal : 3.34 in
    • Width Nominal : 1.76 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI110229EN
    • Environmental Disclosure : ENVPEP110229EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 00
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Pep Code : ENVPEP110229EN
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : contactor
    • Range Of Product : TeSys N
  • ETIM
    • ETIM 8 : EC000010
    • ETIM 9 : EC000010
  • Specifications
    • Depth : 3.66 in
