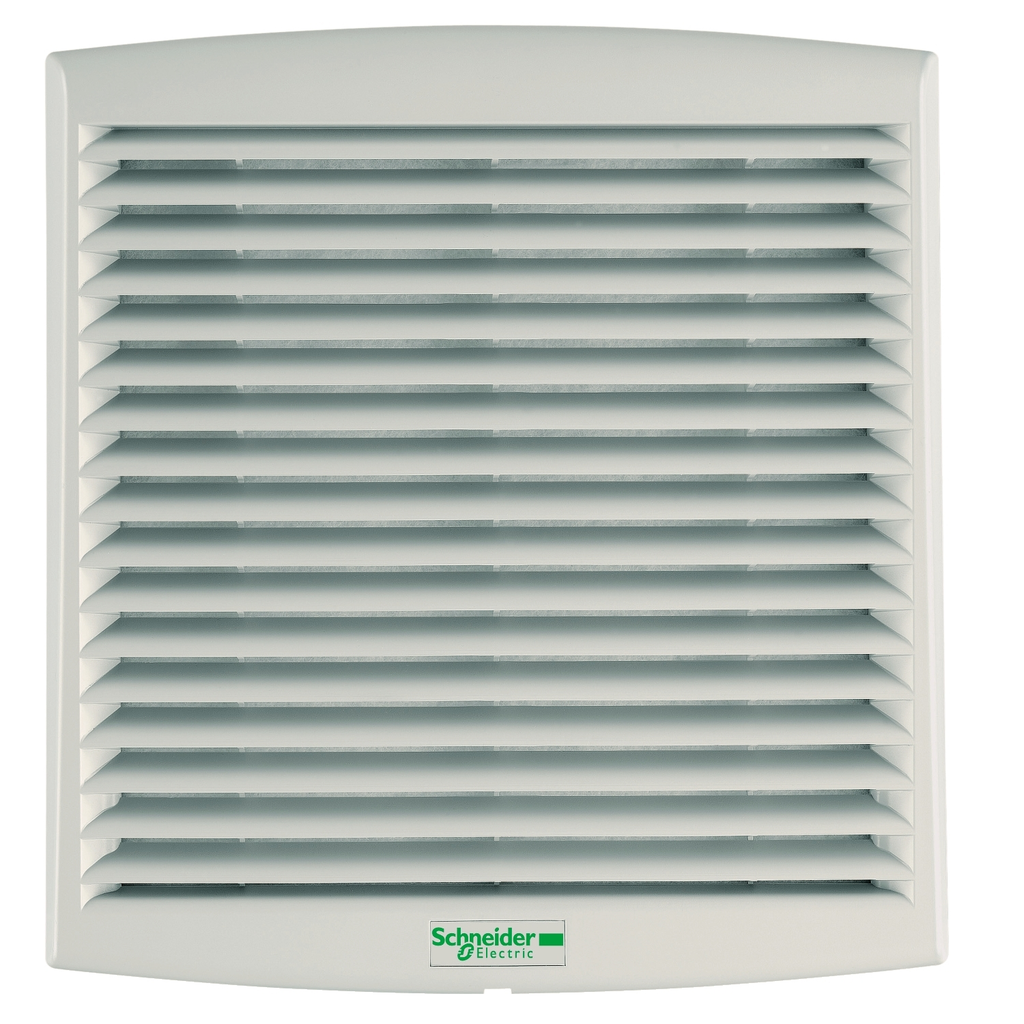

ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 145W 50 Hz, 182W 60 Hz. Free flow rate with standard filter of 944 m3/h at 50 Hz and 983 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (A

• Power Range
• 145 W 50 Hz
• 182 W 60 Hz
• Maximum Pressure
• 170 Pa flow rate 0 m³/h
• Carbon Footprint Of The Installation Phase A5
• 0.5121046865959298
• 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 7 kg CO2 eq.
• 6.872830480331595
• Condition Of Use
• filter must be cleaned and replaced regularly
• overfrequent filter replacement should be avoided
• outside temperature must be 5 °C lower than inside temperature
• flow rates depends on the work point, see ProClima software
• surrounding environment mus
• Material
• outlet grille injected thermoplastic (ASA PC)
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 30 kg CO2 eq.
• 29.92510251465684
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 axial motor
• 2 protective grille on the front and rear surfaces
• 1 filter front of axial motor
• 1 filter fron
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Line Rated Current
• 1.279-1.279 A 50 Hz
• 1.6-1.6 A 60 Hz
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Input Voltage
• 115 V 50/60 Hz
• Air Flow
• free flow rate with standard filter: 983 m3/h at 50 Hz
• free flow rate with standard filter: 944 m3/h at 60 Hz
• free flow rate with standard filte
• Carbon Footprint Of The Distribution Phase A4
• 9.132196758343344
• 9 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• outlet grille Gray RAL 7035)

• Complementary Attributes
• Us Rated Supply Voltage : 103...122 V
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• ETIM 10 : EC000320
• Html Descr : ClimaSys Forced Vent. IP54, 850m3/h, 115V, with Outlet Grille and Filter G2
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 29.9251025146568
• Distribution Carbon Footprint : 9.13219675834334
• Installation Carbon Footprint : 0.51210468659593
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 6.8728304803316
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1107017EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1916
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bearing Type : ball
• Cut Out Dimensions : 291 x 291 mm
• Noise Level : 77-78 dB
• Package Weight Lbs : 4.608 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : fan
• Range : ClimaSys
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 46 kg CO2 eq.
• Type Of Ventilation Filter : standard
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 46.44223443992771
• Connections Terminals : terminal block
• General Attributes
• Product Or Component Type : fan
• Surge Protection And Filtering Attributes
• Type Of Ventilation Filter : standard
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10178378&lang=en-us
• Take Back : No
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 46.4422344399277
• Ambient Air Temperature For Operation : -15-60 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI1107017EN
• Environmental Disclosure : ENVPEP110717EN
• Eu Rohs Directive : Compliant with Exemptions
• Ip Degree Of Protection : IP54
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 13.23 in
• Width : 12.44 in
• Depth : 0 in
