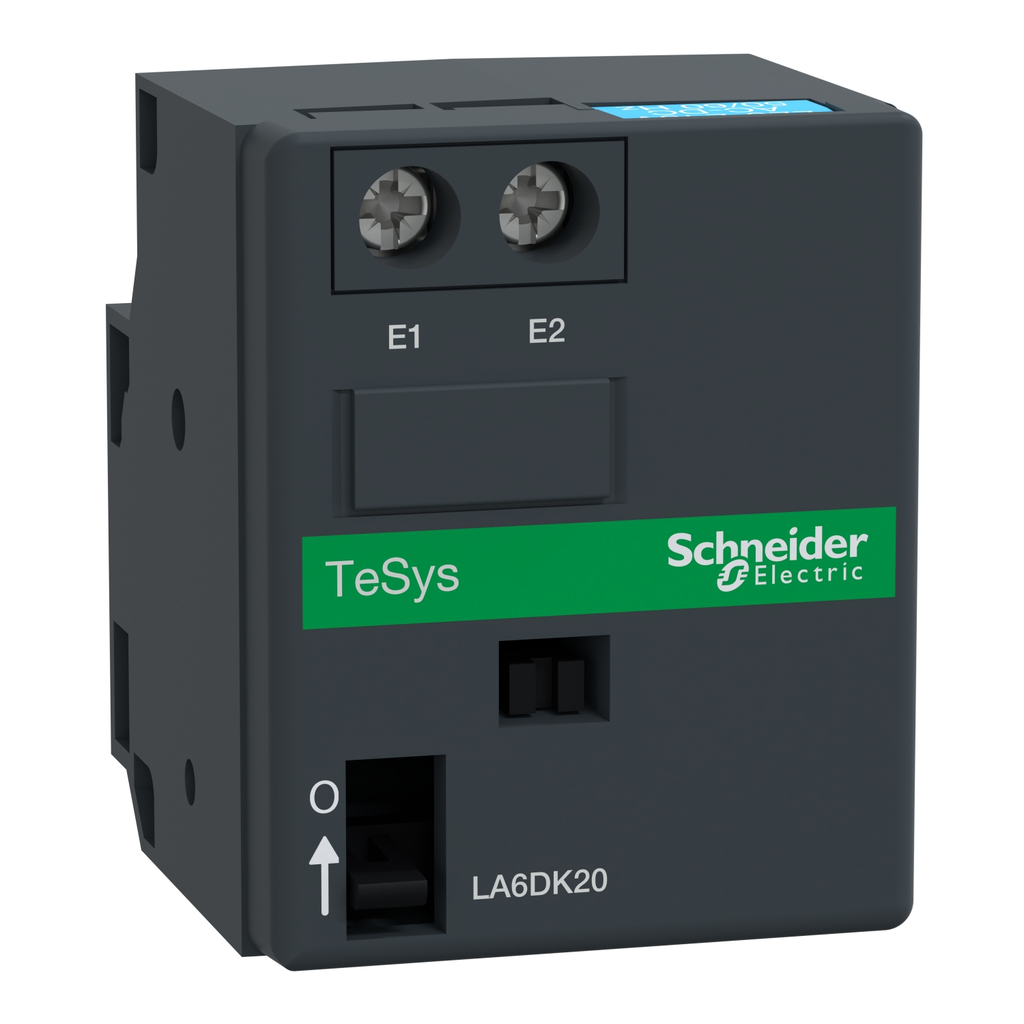

TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA).

• Power Required In VA
• 25 AC
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_2D-top.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=SB115360_3D-CAD&p_File_name=SB115360_3D-simplified.stp
• IP Degree Of Protection
• IP2XIEC 60529
• Carbon Footprint Of The Installation Phase A5
• 0.017809845416982262
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.22941219347095243
• Power Required In W
• 30 W DC
• UC Control Circuit Voltage
• 110/127 V AC 50/60 Hz
• 110/127 V DC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.8 kg CO2 eq.
• 0.7611975955731428
• Protective Treatment
• THIEC 60068
• UI Rated Insulation Voltage
• 690 V IEC 60947-5-1
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 3 kg CO2 eq.
• 3.1606
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 0.025858935055194092
• 0 kg CO2 eq.
• Tripping Control
• electrical
• manual
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Compatibility
• LC1D80...D150 3 phase AC
• LC1D80 3 phase DC
• LC1D150 3 phase DC
• LC1D80 3 phases + neutral AC
• LC1D115 3 phases + neutral AC
• LP1D80 3 phases + neutral DC
• LC1D115 3 phases + neutral DC

• Complementary Attributes
• Maximum Operating Rate : 1200 cyc/h
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-13
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 0.7611975955731428
• Distribution Carbon Footprint : 0.025858935055194092
• Installation Carbon Footprint : 0.017809845416982262
• Use Carbon Footprint : 3.1606
• End Of Life Carbon Footprint : 0.22941219347095243
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2011001
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1936
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• On Load Factor : 10 %
• Package Weight Lbs : 100.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : mechanical latch block
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : No
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 4.194878569516272
• Relationship Type : Compatible relationship
• Actuators : LC1D80M7
• Pep Code : ENVPEP2011001
• Pep Verification Date : 2025-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 90
• Functional Unit Description : To hold mechanilly the contactor in closed position with contactor coil not powered during a running time between a few minutes and several hours over a period of at least 20 years， control circuit voltage to 42/48 V AC or 42/48 V DC
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 47.30400000000001
• Recyclability Potential In : 49
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; FR
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.022541481498728474
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0036280254421294984
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.00011236829967743427
• Acidification Ap Mole Of H Equiv Installation A5 : 0.00007069570793350071
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.018295
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0004353920489880427
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.001668987752405985
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.014267653361262424
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0053254654533039
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0007916614471589451
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.0081447
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00000582646079957963
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0013278324840521908
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 4.180550460406373
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.7558695929757449
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.025858935055194092
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.017018800133389005
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 3.1524
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.22940313224204528
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.291771570809885
• Climate Change Total Kg Co2 Eq Total Life Cycle : 4.194878569516272
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.7611975955731428
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.025858935055194092
• Climate Change Total Kg Co2 Eq Installation A5 : 0.017809845416982262
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 3.1606
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.22941219347095243
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.29309451023032734
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00042872868651475717
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0004272278817427101
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000000222271945
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000059429882033
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000014954
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000000480825050728
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00007392694216178657
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 626.7832775249449
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 11.059229881163498
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.3139897040901905
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.18538368221116264
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 606.91
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 8.314674257480078
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -5.805438748515068
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 399.89474276083854
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 377.2189594042084
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.1060526231291582
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.12154732456036638
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 22.321
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.127183408940607
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -5.878019192061254
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000080818964565375
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000009647490417431
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000030500096501
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000047032308643
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000070868
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000002259417428
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000013062667592532
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00016158576935817792
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000111117850088249
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000000302790025161
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000012866038925247
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00015032
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000002229605984891
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000007257319456306
• Hazardous Waste Disposed Of Kg Total Life Cycle : 4.241350118455504
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 4.152036309829364
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.00002142346350514941
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0002105376536573813
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.08908184750897702
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -5.777348938902937
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000067561898968593
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000066870963211797
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000036484132
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000636750677762
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000052887
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000001261594901
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000085457355946121
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000007375615701422
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000004816405613301
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000006829720064
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000009223424905
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000002283
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000260156943153
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000001398419457239
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.10141165999602822
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0004818127246793172
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.10075
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.00017984727134890053
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 83.40996719707158
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.4825076614970585
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00005733130141836096
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0008349741213350708
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 81.925
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0015672301517788106
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.04165446928611929
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.003216385409947701
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0005427041829352932
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00005163722517311464
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00001872231116793119
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0025178
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000085521690671362
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0001805812308903788
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.04888804832268859
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.00978703334260114
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.039101014980087445
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.005880015941699311
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : -0.002678861714106658
• Net Use Of Fresh Water M3 Distribution A4 : 0.00003054540264596653
• Net Use Of Fresh Water M3 Installation A5 : 0.00017706547407440876
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0053298
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.003021466779085594
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0029483426618049802
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.7801347064939375
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.38305439082040615
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00002631924548367677
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.057937497632248584
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.30391
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.03520649879579898
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.44416331857015345
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000280551764983618
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000273413521044021
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000002281889275685
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000117886588082
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000000046499
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000008856807583
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000005105911876884
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.009809857073644448
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0018094368004666437
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00018347176291175625
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000377318632922187
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0074568
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.00032241664697383004
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0006941716853470334
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0005246174294299883
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0003823566761945564
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00000514116005733269
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000777698093413043
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00012767
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000167261224396884
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00009873115017218965
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.04367155189166228
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.005807975892609067
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0005595399462447581
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00014130986480683714
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.036191
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000971726188001617
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0020035283236575674
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.182580984670748
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.182580984670748
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 683.1295762523853
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 11.28122998938841
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.3139897040901905
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.19868556624684308
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 663.02
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 8.315670992659864
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -5.919610232745023
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 56.347295847328766
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.22206353682726246
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000210356429079239
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.01330188403568047
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 56.111
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0009283229015364197
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.11411711685651214
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.182580984670748
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.182580984670748
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 625.6007871525633
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.87673950878182
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.3139897040901905
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.18538368221116264
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 606.91
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 8.314674257480078
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -5.805438748515068
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.19372001280573078
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.19372001280573078
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.17615028995478768
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 56.153576740645924
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0283444301444224
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000210356429079239
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.01330188403568047
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 56.111
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0009283229015364197
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.06203770371272911
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 0.19017025621644024
• Water Use M3 Eq Manufacturing A1 A3 : -0.1209583446814023
• Water Use M3 Eq Distribution A4 : 0.0013118847211756257
• Water Use M3 Eq Installation A5 : 0.0076049988094729305
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0.22891
• Water Use M3 Eq End Of Life C1 C4 : 0.07330171736719396
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.12662161274836436
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• General Attributes
• Product Or Component Type : mechanical latch block
• Range Of Product : TeSys Deca
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=608920&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 4.194878569516272
• Circularity Profile : ENVEOLI2011001
• Environmental Disclosure : ENVPEP2011001
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2011001
• Pep Verification Date : 2025-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
