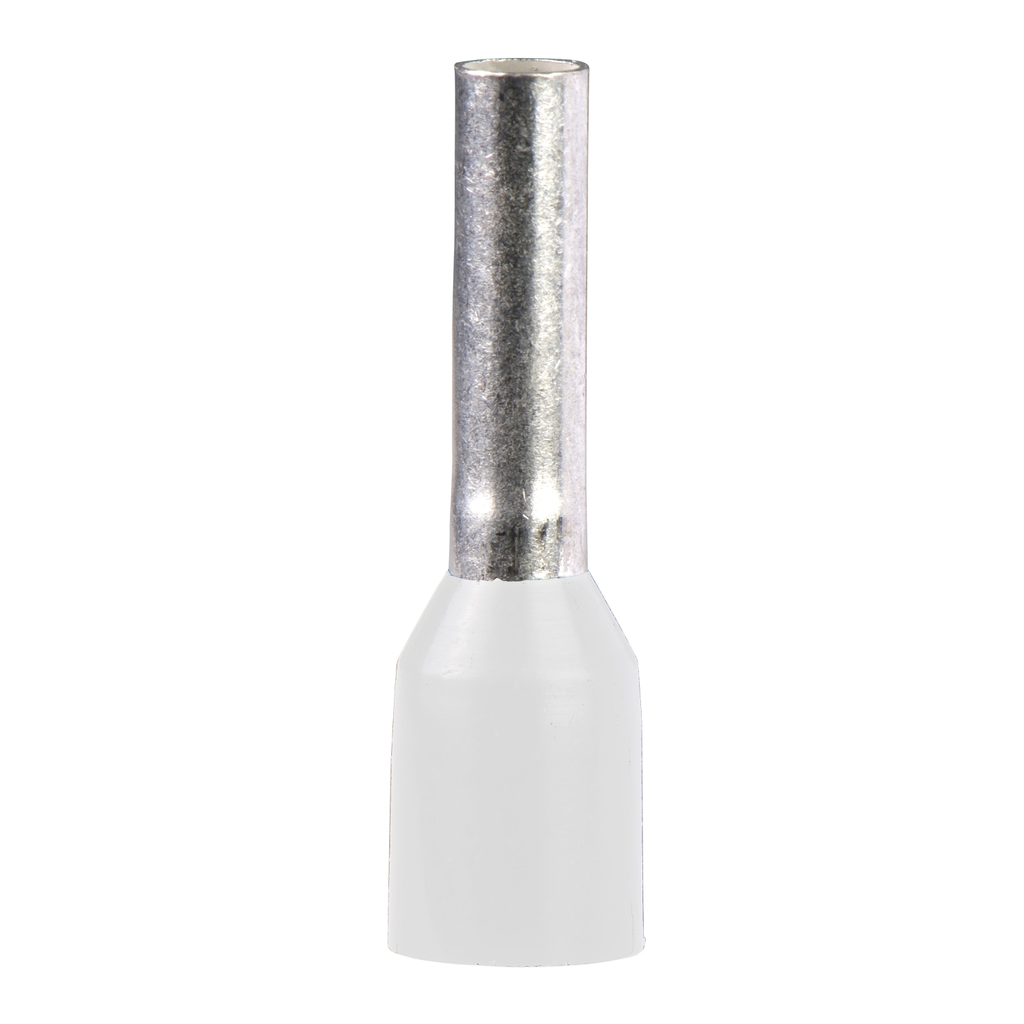

Linergy cable end insulated without marker tag holder. It applied to single conductor with 0.5 mm² cable cross section. It has white surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified.

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010739_3D-CAD&p_File_name=MCADPE0010739_2D-top.dxf
• Physical Attributes
• Bezel Size : Ø 3.1 mm
• Cable End Size : medium
• Cad Overall Depth : 14 mm
• Cad Overall Height : 3 mm
• Cad Overall Width : 3 mm
• Color : White
• Tube Length : 8 mm
• Conformance Attributes
• Product Certifications : UL
• Standards : NF C 63-023
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB, SI
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Medium Desc : Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², medium size, 10 sets of 100
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2405008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Awg Gauge : AWG 22
• Bezel Material : halogen-free plastic
• Cable Cross Section : 0.5-0.5 mm²
• Cable End Type : single conductor
• Halogen Free Status : Halogen free plastic parts product
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : cable end
• Quantity Per Set : 10 sets of 100
• Range Of Product : Linergy
• Returnability : Yes
• Sustainable Packaging : No
• Tube Diameter : 1.3 mm
• Tube Material : Copper ISO 1337
• Type Of Packing : string of bags
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Silicone Free : Yes
• Pep Code : ENVPEP2405008EN
• Length Total : 14 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : Nej
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Silicon Free : Yes
• Ambient Air Temperature For Operation : -20-105 °C
• Circularity Profile : ENVEOLI2405008EN
• Environmental Disclosure : ENVPEP2405008EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2405008EN
• General Attributes
• Product Or Component Type : cable end
• Range Of Product : Linergy
• ETIM
• ETIM 8 : EC000005
• ETIM 9 : EC000005
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France, United States
• Batteries & Runtime Attributes
• Additional Information : without marker tag holder
