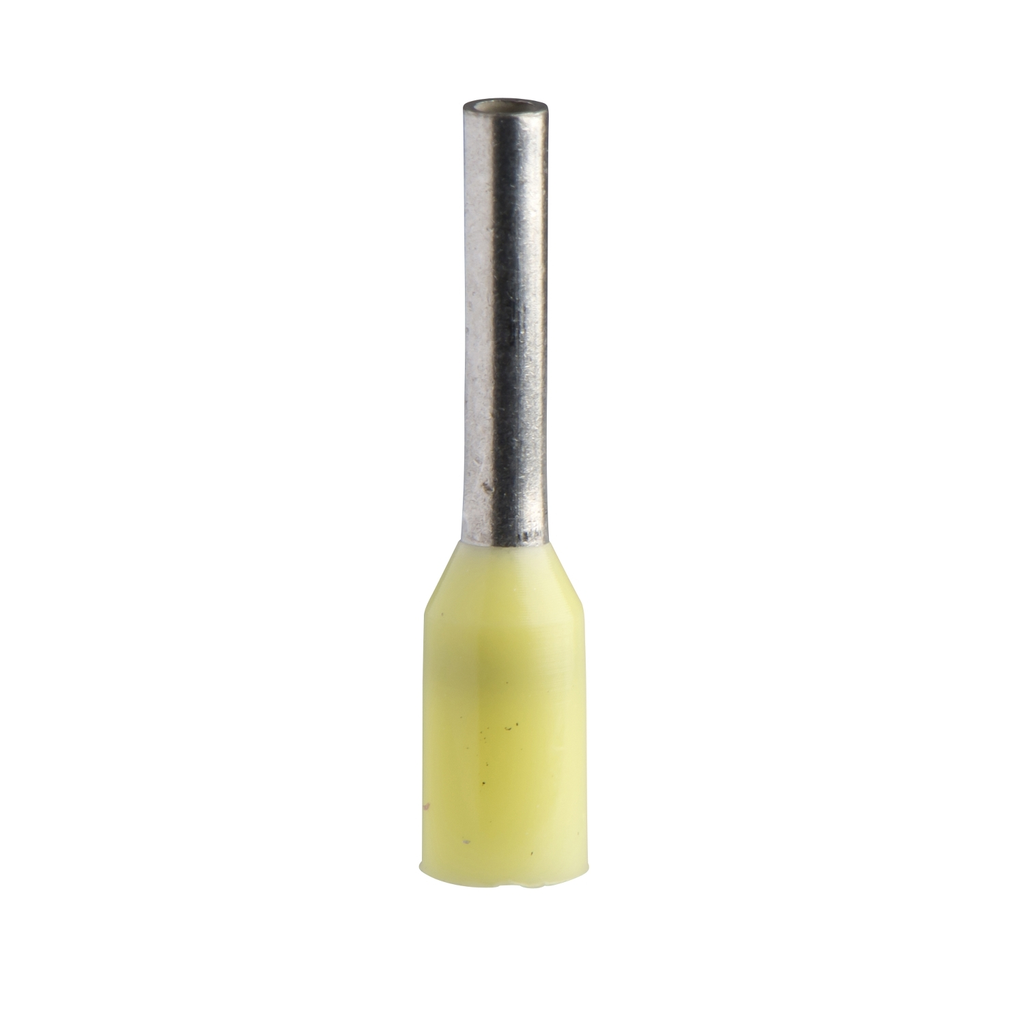

Linergy cable end insulated without marker tag holder. It applied to single conductor with 0.25 mm² cable cross section. It has yellow surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 se

• Tube Material
• Copper ISO 1337

• Physical Attributes
• Bezel Size : Ø 2.3 mm
• Cable End Size : medium
• Cad Overall Depth : 12 mm
• Cad Overall Height : 2 mm
• Cad Overall Width : 2 mm
• Color : Yellow
• Tube Length : 8 mm
• Conformance Attributes
• Standards : NF C 63-023
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Linergy cable end insulated without marker tag holder
• B2B Bullet Point 2 : Packing by string of bags and quantity per set is 10 sets of 100
• B2B Bullet Point 3 : Releasing pressure on the sides stops the flow of cable ends
• B2B Bullet Point 4 : Markable, standard, or twin available in three different lengths
• B2B Bullet Point 5 : No need to use other marking accessories for cables
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• ETIM 10 : EC000005
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2405008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 627
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• AWG Gauge : AWG 26
• Bezel Material : halogen-free plastic
• Cable Cross Section : 0.25-0.25 mm²
• Cable End Type : single conductor
• Halogen Free Status : Halogen free plastic parts product
• Number Of Cables : 1
• Package Weight Lbs : 0.100 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : cable end
• Quantity Per Set : 10 sets of 100
• Range Of Product : Linergy
• Returnability : Yes
• Silicone Free : Yes
• Sustainable Packaging : No
• Tube Diameter : 1.1 mm
• Type Of Packing : string of bags
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• General Attributes
• Product Or Component Type : cable end
• Range Of Product : Linergy
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=647600&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Silicon Free : Yes
• Ambient Air Temperature For Operation : -20-105 °C
• Circularity Profile : ENVEOLI2405008EN
• Environmental Disclosure : ENVPEP2405008EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
• Length : 0.47 in
• Batteries & Runtime Attributes
• Additional Information : without marker tag holder
