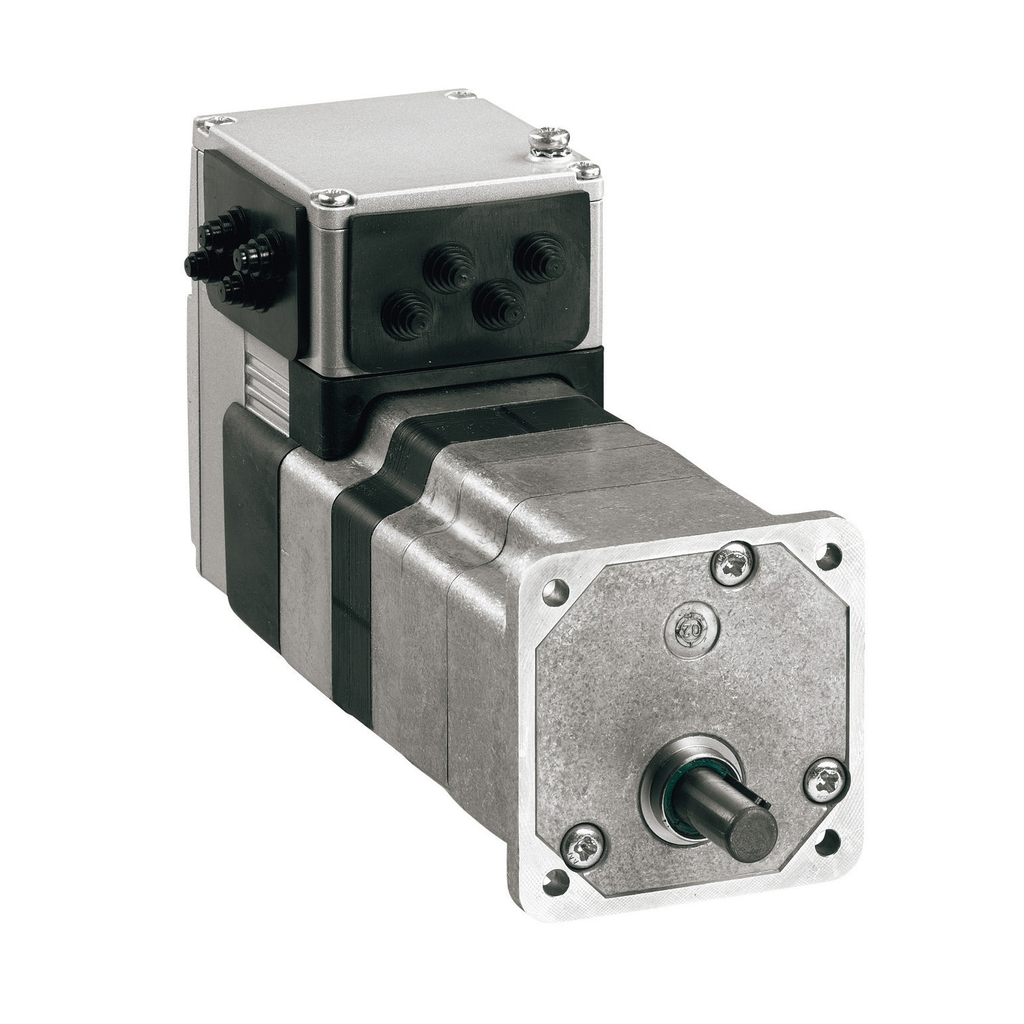

brushless dc motor 24..48V- EtherNet/IP interface - L = 140 mm- w/o gearbox

IFEN72/3EIPISDS/-ADI54/O-001RP

SQDILE2K662PC1A0 ILE2K662PC1A0 3606485204864
1703.12 / EA
http://schema.org/OutOfStock
QTY
  • Specifications
  • Specifications
    • Range Of Product : Lexium integrated drive
    • Reduction Ratio : 1:1
    • Network Type : DC
    • Winding Type : medium speed of rotation and medium torque
    • Number Of Motor Poles : 6
    • Holding Brake : without
    • Product Or Component Type : motion integrated drive
    • Phase : single phase
    • Length : 140 mm
    • [Us] Rated Supply Voltage : 48 V || 24 V
    • Communication Interface : Ethernet/IP, Integrated
    • Gear Box Type : without
    • Motor Type : brushless DC motor
    • Nominal Speed : 3100 rpm 24 V || 5000 rpm 48 V
    • Electrical Connection : industrial connector
    • Nominal Torque : 0.5 N.m 24 V || 0.5 N.m 48 V
    • Device Short Name : ILE
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Circle Diameter Of The Mounting Holes : 73.54 mm
    • Current Consumption : 7000 mA peak || 5500 mA maximum continuous
    • Maximum Mechanical Speed : 5000 rpm || 7000 rpm
    • Commissioning Interface : RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
    • Maximum Switching Current : 100 mA per output || 200 mA total
    • Maximum Radial Force Fr : 80 N
    • Mounting Support : flange
    • Number Of Motor Stacks : 2
    • Rotor Inertia : 0.34 kg.cm²
    • Continuous Stall Torque : 0.54 N.m
    • Centring Collar Depth : 2 mm
    • Discrete Input Current : 10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
    • Second Shaft : without second shaft end
    • Marking : CE
    • Shaft Length : 25 mm
    • Net Weight : 1.75 kg
    • Voltage State 0 Guaranteed : -3...4.5 V
    • Centring Collar Diameter : 40 mm
    • Motor Flange Size : 66 mm
    • Peak Stall Torque : 0.8 N.m 24 V || 0.8 N.m 48 V
    • Number Of Mounting Holes : 4
    • Shaft Diameter : 8 mm
    • Nominal Output Power : 162 W 24 V || 262 W 48 V
    • Discrete Output Voltage : 23...25 V
    • Supply Voltage Limits : 18-55.2 V
    • Mounting Holes Diameter : 4.4 mm
    • Speed Feedback Resolution : 12 points/turn
    • Maximum Supply Current : 0.1 A power stage disabled) || 7 A 48 V || 9.5 A 24 V
    • Detent Torque : 0.106 N.m
    • Type Of Cooling : natural convection
    • Service Life In Hours : 20000 h bearing
    • Shaft End : untapped
    • Feedback Type : BLDC encoder
    • Protection Type : safe torque off || overload of output voltage || short circuit of the output voltage
    • Transmission Rate : 125, 250, 500 kbauds
    • Accuracy Error : +/- 0.5 °
    • Input/Output Type : 4 signals (each be used as input or output)
    • Maximum Axial Force Fa : 30 N force pressure) || 30 N tensile force)
    • Associated Fuse Rating : 16 A
    • Voltage State 1 Guaranteed : 15...30 V
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2011005EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI2011005EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : UL || cUL || TÜV
    • Standards : IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN/IEC 50178 || EN 50347 || IEC 60072-1 || EN/IEC 61800-3 || EN 61800-3 : 2001-02
    • Ambient Air Temperature For Operation : 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
    • Shock Resistance : 150 m/s² 1000 shocks EN/IEC 60068-2-29
    • Vibration Resistance : 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
    • Permissible Ambient Air Temperature Around The Device : 105 °C power amplifier || 110 °C motor
    • Ambient Air Temperature For Storage : -25-70 °C
    • Relative Humidity : 15-85 % without condensation
    • Ip Degree Of Protection : shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating
