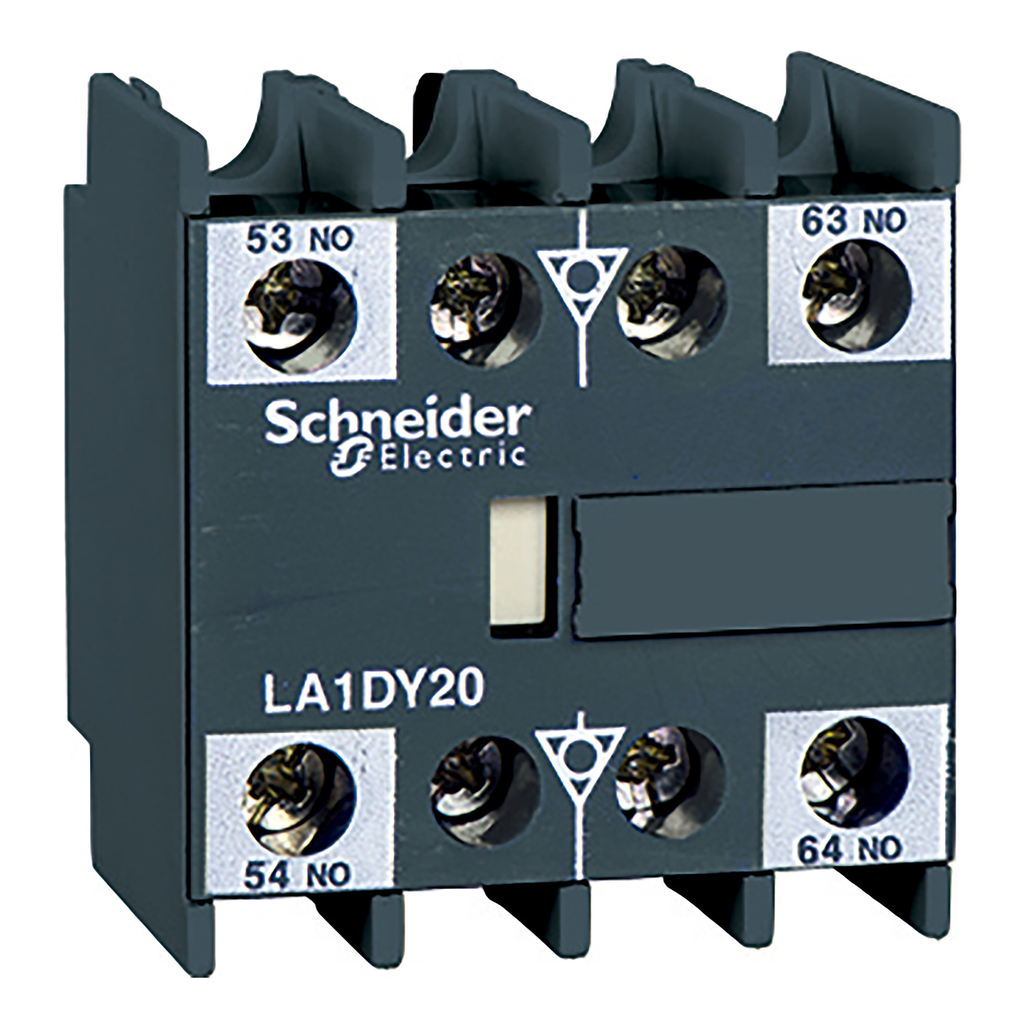

TeSys Deca instantaneous auxiliary contact block with dust and damp protected contacts, for LC1D contactors and CAD control relays in harsh industral environments. It provides 2NO protected contacts rated up to 0.1A 125V AC / 30V DC, 1NO+1NC not protecte

• Connections Terminals
• screw clamp terminals 1 1-2.5 mm²flexible with cable end
• screw clamp terminals 1 1-
• Range Compatibility
• TeSys D CAD
• TeSys D LC1D
• TeSys F LC1F
• TeSys F CR1F
• TeSys Deca CAD
• TeSys Deca LC1D
• Carbon Footprint Of The Installation Phase A5
• 0.008480726561347006
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.15462428493948835
• Standards
• EN/IEC 60947-5-1
• UL 60947-5-1
• CSA C22.2 No 60947-5-1
• GB/T 14048.5
• Ue Rated Operational Voltage
• 125 V AC protected contact
• 30 V DC protected contact
• 690 V AC non-protected contact
• Ui Rated Insulation Voltage
• 250 V - protected contact IEC 60947-5-1
• 690 V - non-protected contact IEC 60947-5-1
• 60
• Ip Degree Of Protection
• IP2X conforming to IEC 60529
• Minimum Switching Voltage
• 5 V for protected contact
• 17 V for non-protected contact
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.4 kg CO2 eq.
• 0.41771858290220826
• Protective Treatment
• TH IEC 60068
• Protection Type
• gG fuse 10 A non-protected contact
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 3 kg CO2 eq.
• 3.1606
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 0.06786586045038151
• 0.1 kg CO2 eq.
• Tightening Torque
• 1.7 N.m flat Ø 6 mm
• 1.7 N.m Philips No 2
• 1.7 N.m pozidriv No 2
• Ith Conventional Free Air Thermal Current
• 10 A (at 40 °C) for non-protected contact
• Minimum Switching Current
• 1 mA for protected contact
• 5 mA for non-protected contact
• Ie Rated Operational Current
• 0.1 A for protected contact
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• CB
• UL
• CSA
• CCC
• EAC
• UKCA

• Important Information Attributes
• B2B Bullet Point 1 : Meet the need for more and various tpye control contact of TeSys Deca contactor and control relay
• B2B Bullet Point 2 : Easy choice for simple applications
• Local Data Status : Publishable
• Local Publishable Date : 8/13/2025
• Html Descr : TeSys D Auxiliary contact block, 3 NO + 1 NC, screw clamp terminals
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 0.417718583
• Distribution Carbon Footprint : 6.79E-02
• Installation Carbon Footprint : 8.48E-03
• Use Carbon Footprint : 3.1606
• End Of Life Carbon Footprint : 0.154624285
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1929
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LA1
• Device Short Name : LA1
• Environmental Characteristic : harsh environment
• Insulation Resistance : > 10 MOhm
• Mechanical Durability : 5 Mcycles
• Mounting Location : front
• Package Weight Lbs : 64.000 g
• Pole Contact Composition : 2 NO (sealed) + 1 NO + 1 NC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : auxiliary contact block
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : Yes
• Shielding Continuity Terminal : without
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 3.809289455
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : auxiliary contact block
• Range Of Product : TeSys Deca
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=608422&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 3.809289455
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -25-70 °C
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
• Height : 1.89 in
• Width : 1.73 in
• Depth : 1.54 in
