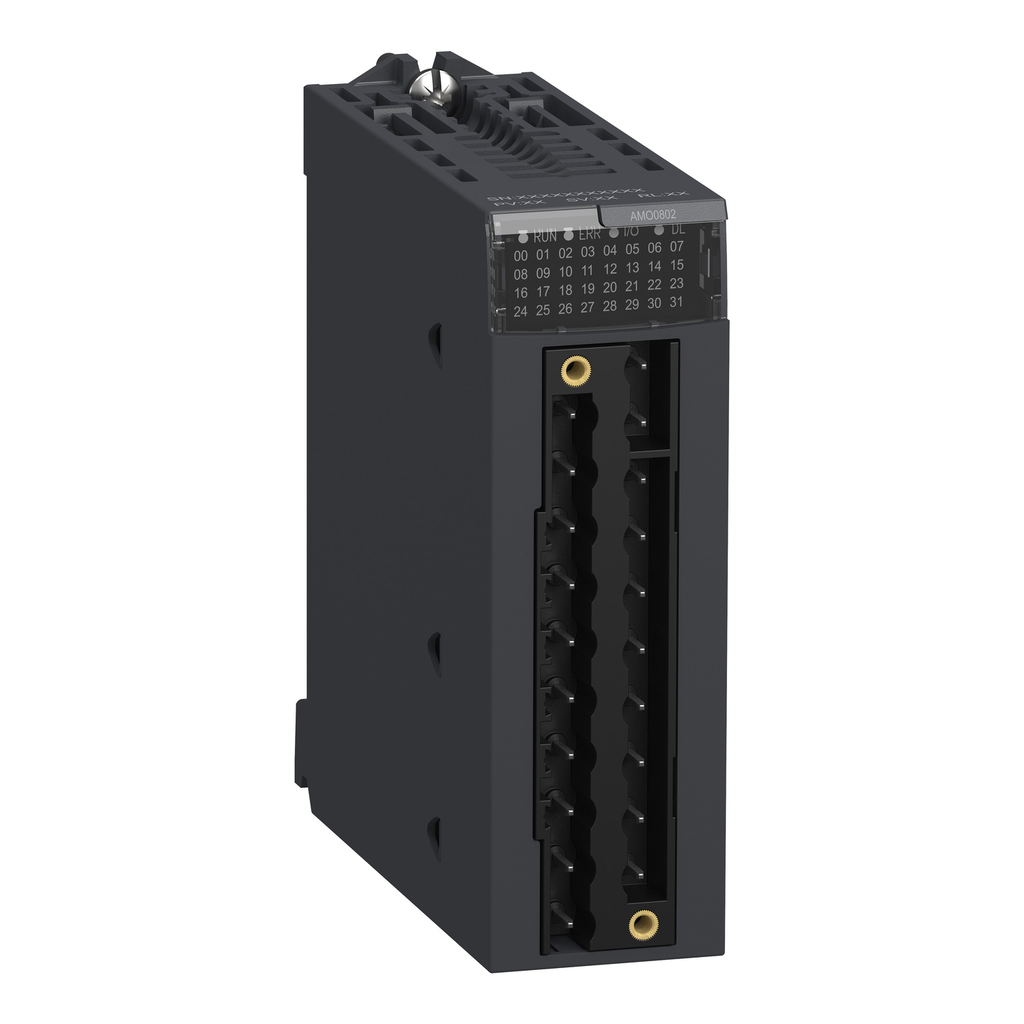

Analog output module X80 - 8 outputs

Analog output module X80 - 8 outputs

SQDBMXAMO0802 BMXAMO0802 785901628712
634.03 / EACH
  • Certifications: CE, CSA, EAC, Merchant Navy, RCM, UL
  • Country of Origin: France
  • Standard: CSA C22.2 No 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201
  • Warranty Length: 18 mth
  • Weight: 0.15 kg, 0.33 lb
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Product Description
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Complementary
    • Analogue Output Number : 8
    • Status Led : 1 LED (green)RUN || Channel diagnostic 1 LED per channel Green) || 1 LED (red)ERR || 1 LED (red)I/O
    • Output Level : High level
    • Analogue Output Resolution : 16 bits
    • Temperature Drift : 45 ppm/°C 0...20 mA || 45 ppm/°C 4...20 mA
    • Supply : Internal power supply via rack
    • Minimum Crosstalk Attenuation : 80 dB
    • Common Mode Rejection : 80 dB
    • Measurement Error : <= 0.25 % of full scale 0...60 °C || 0.1 % of full scale 25 °C
    • Detection Type : Open circuit 4...20 mA || Short circuit 0...20 mA
    • Load Impedance Ohmic : <= 350 Ohm 0...20 mA || <= 350 Ohm 4...20 mA
    • Analogue Input Resolution : 16 bits
    • Maximum Conversion Value : 0...21 mA 0...20 mA || 0...21 mA 4...20 mA
    • ISOlation Voltage : 1400 V DC between channels and ground || 1400 V DC between channels and bus
    • Product Weight : 0.33 lb(US) (0.15 kg)
    • Conversion Time : <= 4 ms
    • Fallback Mode : Configurable || Predefined
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Power Consumption In W : 3.6 W 24 V DC typical || 3.9 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
    • Analogue Output Type : Current 0...20 mA || Current 4...20 mA
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • IP Degree Of Protection : IP20
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Standards : EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
    • Ambient Air Temp For Op : 32…140 °F (0…60 °C)
    • Vibration Resistance : 3 gn
    • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
    • Relative Humidity : 5…95 % 131 °F (55 °C) without condensation
    • Product Certifications : CE || RCM || CSA || EAC || Merchant Navy || UL
    • Shock Resistance : 30 gn
  • Main
    • Range Of Product : Modicon X80
    • Electrical Connection : 20 ways 1 connector
    • Product Or Component Type : Analog output module
    • ISOlation Between Channels : Non isolated
  • Ordering And Shipping Details
    • GTIN : 00785901628712
    • Discount Schedule : PC34
    • Category : 18160 - MODICON M340
    • Country Of Origin : FR
    • Nbr. Of Units In Pkg. : 1
    • Returnability : Yes
  • Offer Sustainability
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
