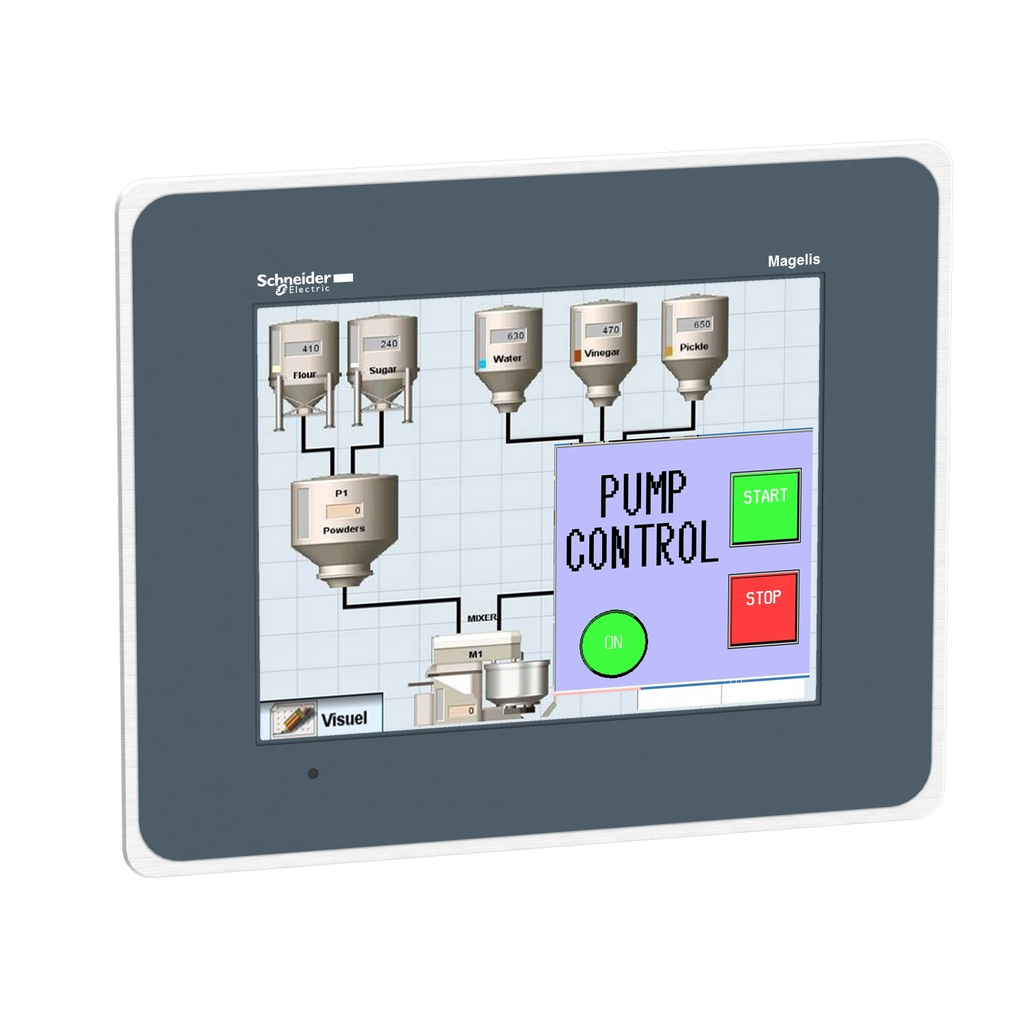

advanced touchscreen panel, Harmony GTO, stainless, 640 x 480pixels VGA, 10.4inch TFT, 96MB

10.4 COLOR TOUCH PANEL VGA STA

SQDHMIGTO5315 HMIGTO5315 3595864150291
7297.48 / EA
http://schema.org/OutOfStock
Mayer-DDS-advanced touchscreen panel, Harmony GTO, stainless, 640 x 480pixels VGA, 10.4inch TFT, 96MB-3
  • Country of Origin: Indonesia
  • Warranty Length: 18 mth
This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with a stainless steel frame, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C
QTY
  • Product Description
  • Features
  • Specifications
This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with a stainless steel frame, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C
  • US Rated Supply Voltage
    • 24 V DC
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=HMIGTO5315_CAD&p_File_name=HMIGTO5315_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=HMIGTO5315_CAD&p_File_name=HMIGTO5315_2D Bottom View.dwg
    • https://download.schneider-electric.
  • IP Degree Of Protection
    • IP20 IEC 60529 rear panel)
    • IP66K IEC 60529 front panel)
    • IP66K DIN 40050-9 front panel)
    • IP66K DIN 40050-9 front
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Downloadable Protocols
    • Schneider Electric Modicon Modbus
    • Schneider Electric Modicon Uni-TE
    • Schneider Electric Modicon Modbus Plus
    • Schneider Electric Modicon FIPWAY
    • Schnei
  • Carbon Footprint Of The Installation Phase A5
    • 0.73658
    • 0.7 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 3 kg CO2 eq.
    • 3.1312
  • Character Font
    • Chinese (simplified Chinese)
    • Japanese (ANK, Kanji)
    • Taiwanese (traditional Chinese)
    • Korean
    • ASCII
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 205 kg CO2 eq.
    • 204.77
  • Data Storage Equipment
    • SD card, <= 32 GB
    • SDHC card, <= 32 GB
  • Touch Panel
    • resistive film, 1000000 cycles
  • Nema Degree Of Protection
    • NEMA 4X front panel (indoor use)
  • Accessories
    • XBTZ9780
    • XBTZ9980
    • BMXXCAUSBH018
    • XBTZG9721
    • XBTZGUMP
  • Fixing Mode
    • by 8 nuts
    • by 4 L brackets
  • Vibration Resistance
    • 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    • 3.5 mm 5
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
  • Brightness
    • 16 levels by touch panel
    • 16 levels by software
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 698 kg CO2 eq.
    • 697.73
  • Data Backed Up
    • 512 KB internal RAM SRAM)
  • Relative Humidity
    • 10-90 % without condensation
  • Persona Type Ids
    • EU
    • OM
    • OM8
    • PB
    • SC
    • SI
  • Resistance To Electrostatic Discharge
    • 6 kV contact discharge IEC 61000-4-2 level 3
  • Carbon Footprint Of The Distribution Phase A4
    • 0.3923
    • 0.4 kg CO2 eq.
  • Integrated Connection Type
    • COM1 serial link SUB-D 9 RS232C 2400...115200 bps
    • COM2 serial link RJ45 RS485 2400...115200 bps
    • COM2 ser
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Shock Resistance
    • 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
  • Maximum Power Consumption In W
    • 12 W when power is not supplied to external devices
    • 7 W when backlight is OFF
    • 8 W when backlight is dimmed
    • 17 W
  • Local Signalling
    • status LED green, steady offline
    • status LED green, steady operating
    • status LED green,
  • Battery Type
    • lithium internal RAM 100 days 5 day(s) 10 year(s)
  • Memory Description
    • flash EPROM, 96 MB
  • Physical Attributes
    • Display Color : 65536 colours
    • Display Size : 10.4 inch
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • Device Type : HMI - Graphical display unit
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 7 year(s)
    • Manufacturing Carbon Footprint : 204.77
    • Distribution Carbon Footprint : 0.3923
    • Installation Carbon Footprint : 0.73658
    • Use Carbon Footprint : 697.73
    • End Of Life Carbon Footprint : 3.1312
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1402026EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2514
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 4
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Display Color : 65536 colours
    • F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Halogen Free Status : Product contains halogen above thresholds
    • Package Weight Lbs : 3.439 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : advanced touchscreen panel
    • Range Of Product : Harmony GTO
    • Returnability : No
    • Sustainable Packaging : No
    • Terminal Type : touchscreen display
    • Total Lifecycle Carbon Footprint : 907 kg CO2 eq.
    • Touch Sensitive Zone : 1024 x 1024
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 906.76008
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1402026EN
    • Pep Verification Date : 2023-11-02
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 3000
    • Functional Unit Description : To provide 12.1" TFT Smart Display during 10 years and maximum use rate at 17W, based on below function: - 12.1-inch Touchscreen panel. - SD Card Interface - Serial comunication interface (RS-422/485, RS-232C) - USB Interface (Tyepe-A,
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 1489.2
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; ID
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; US
    • Recyclability Potential In : 26
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 5.432359599999999
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 1.0771
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0025233
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.002927
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 4.3415
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0083093
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.021519
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.8798568000000001
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.3255
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.032679
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.52041
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0012678
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.037398
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 905.8861
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 204.45
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.3923
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.7039
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 697.21
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 3.1299
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -3.6557
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 906.76008
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 204.77
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.3923
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.73658
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 697.73
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 3.1312
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -3.6931
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.016353112811
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.016319
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.000000015424
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.000000024587
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000032714
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000013588
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00085081
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 21300.127399999998
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2649.6
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 5.4656
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 7.6718
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 18488
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 149.39
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -70.42
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 12503.23219
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1900.5
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.26399
    • Ecotoxicity Fresh Water Ctue Installation A5 : 5.0182
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 10019
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 578.45
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -57.808
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.000038885677
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000064894
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.000000020923
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.000000019486
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.000032313
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000042868
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000015164
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00248603666
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00034381
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000014696
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000053117
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0020838
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.000052968
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000013297
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 351.31969089999996
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 347.2
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0086909
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 4.111
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -67.207
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000132985888217
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000012944
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.0000000000069217
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000026285
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.000000086159
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000055729
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000010138
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000679591544
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000025713
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000078244
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000381
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000041388
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.000000081223
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000017809
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 7.8333900000000005
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.98982
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 6.7259
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.11767
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 1279.28273227
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 142.8
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00095427
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.03447
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 1136.4
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.047308
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -2.3023
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.73706844
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.24023
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.001185
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00077694
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.49284
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0020365
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0026952
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0000000013274
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0000000013274
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 1.10962
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.00376
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.404
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.70186
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 1.763868941
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 1.0798
    • Net Use Of Fresh Water M3 Distribution A4 : 0.000034641
    • Net Use Of Fresh Water M3 Installation A5 : 0.0073093
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.65775
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.018975
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.040467
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 144.976286
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 34.697
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.013752
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 2.3917
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 107.85
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.023834
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -12.704
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00010753666058
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0001038
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000060058
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.000000048665
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000036587
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.000000028695
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000046245
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 2.5481515000000003
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.90724
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0032841
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0015689
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 1.6297
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0063585
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0090138
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0467700089
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.032465
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000097949
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00032106
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.013954
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000020154
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0015189
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 8.387478100000001
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 2.56
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.013
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0058781
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 5.7897
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0189
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.027822
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 24.045
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 24.045
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 23293.1238
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 2700
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 5.4728
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 8.221
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 20430
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 149.43
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -73.854
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1992.7574065
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 50.366
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0072935
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.54911
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1941.8
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.035003
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.4331
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 24.045
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 24.045
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 21276.127399999998
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2625.6
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 5.4656
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 7.6718
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 18488
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 149.39
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -70.42
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.8742
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.8742
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -7.272
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1984.8834064999999
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 42.492
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0072935
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.54911
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1941.8
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.035003
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 3.8389
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.025922
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.025922
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 75.7283878
    • Water Use M3 Eq Manufacturing A1 A3 : 46.348
    • Water Use M3 Eq Distribution A4 : 0.0014878
    • Water Use M3 Eq Installation A5 : 0.31393
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 28.25
    • Water Use M3 Eq End Of Life C1 C4 : 0.81497
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -1.7379
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Packaging Weight In G : 431.4
  • General Attributes
    • Product Or Component Type : advanced touchscreen panel
    • Range Of Product : Harmony GTO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=180308094&lang=en-us
    • Take Back : No
    • Halogene Performance : Product contains halogen above thresholds
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Silicon Free : No
    • Carbon Footprint : 906.76008
    • Ambient Air Temperature For Storage : -20-60 °C
    • Circularity Profile : ENVEOLI1402026EN
    • Environmental Disclosure : ENVPEP1402026EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Halogen Content Performance : Product contains halogen above thresholds
    • Operating Altitude : < 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1402026EN
    • Pep Verification Date : 2023-11-02
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
  • Batteries & Runtime Attributes
    • Removable Battery : USER_REPLACEABLE
