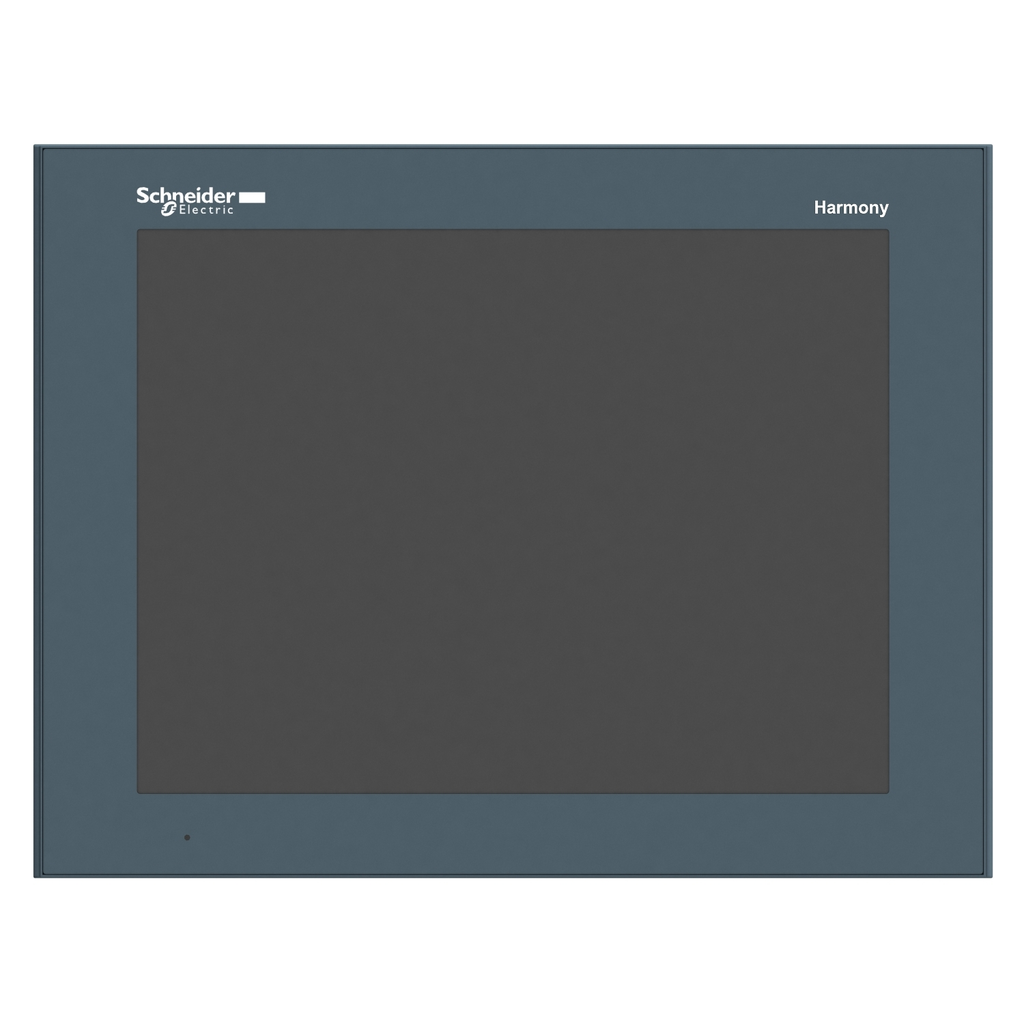

Advanced touchscreen panel, Harmony GTO, 800 x 600 pixels SVGA, 12.1" TFT, 96 MB

12.1 COLOR TOUCH PANEL SVGA-TF

SQDHMIGTO6310 HMIGTO6310 785901986539
3884.71 / EACH
  • Certifications: CE, CULus, KCC
  • Depth: 56 mm
  • Enclosure Material: PPT
  • Height: 241 mm
  • Monitor Size: 12.1 in
  • Net Weight: 2.5 kg
  • Standard: EN 61131-2, IEC 61000-6-2, UL 508
  • Storage Temperature: -20-60 °C
  • Warranty Length: 18 mth
  • Width: 315 mm
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 12.1" color TFT LCD display, 800 x 600 pixels (SVGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
  • Product Description
  • Specifications
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 12.1" color TFT LCD display, 800 x 600 pixels (SVGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
  • Complementary
    • Touch Sensitive Zone : 1024 x 1024
    • [Us] Rated Supply Voltage : 24 V DC
    • Software Designation : Vijeo Designer configuration software >= V6.1
    • Data Backed Up : 512 kB internal RAM SRAM)
    • Display Type : backlit colour TFT LCD
    • Front Material : PPT
    • Fixing Mode : by 4 screw clamps
    • Data Storage Equipment : SD card, <= 32 GB || SDHC card, <= 32 GB
    • Height : 241 mm
    • Depth : 56 mm
    • Downloadable Protocols : Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
    • Memory Description : flash EPROM, 96 MB
    • Inrush Current : 30 A
    • Maximum Power Consumption In W : 12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W
    • Local Signalling : status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
    • Supply Voltage Limits : 19.2-28.8 V
    • Brightness : 16 levels by touch panel || 16 levels by software
    • Character Font : Taiwanese (traditional Chinese) || ASCII (European characters) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean
    • Net Weight : 2.5 kg
    • Type Of Cooling : natural convection
    • Display Resolution : 800 x 600 pixels SVGA
    • Product Mounting : flush mounting
    • Width : 315 mm
    • Enclosure Material : PPT
    • Backlight Lifespan : 50000 hours white 25 °C
    • Terminal Type : touchscreen display
    • Touch Panel : resistive film, 1000000 cycles
    • Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP120711EN_V1
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI120709EN_V1
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Sustainable Offer Status : Green Premium product
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Free Of Svhc : Yes
  • Environment
    • Product Certifications : C-tick || KCC || cULus || CE
    • Vibration Resistance : 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
    • Ambient Air Temperature For Storage : -20-60 °C
    • Ip Degree Of Protection : IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
    • Standards : UL 508 || EN 61131-2 || IEC 61000-6-2
    • Relative Humidity : 10-90 % without condensation
    • Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
    • Nema Degree Of Protection : NEMA 4X front panel (indoor use)
    • Ambient Air Temperature For Operation : 0-55 °C
    • Operating Altitude : < 6561.68 ft (2000 m)
    • Resistance To Electrostatic Discharge : 6 kV contact discharge IEC 61000-4-2 level 3
  • Battery Type : lithium internal RAM 100 days 5 day(s) 10 year(s)
  • Supply : external source
  • Display Colour : 65536 colours
  • Range Of Product : Harmony GTO
  • Operating System : Harmony
  • Display Size : 12.1 inch
  • Product Or Component Type : advanced touchscreen panel
  • Contractual warranty
    • Warranty : 18 months
