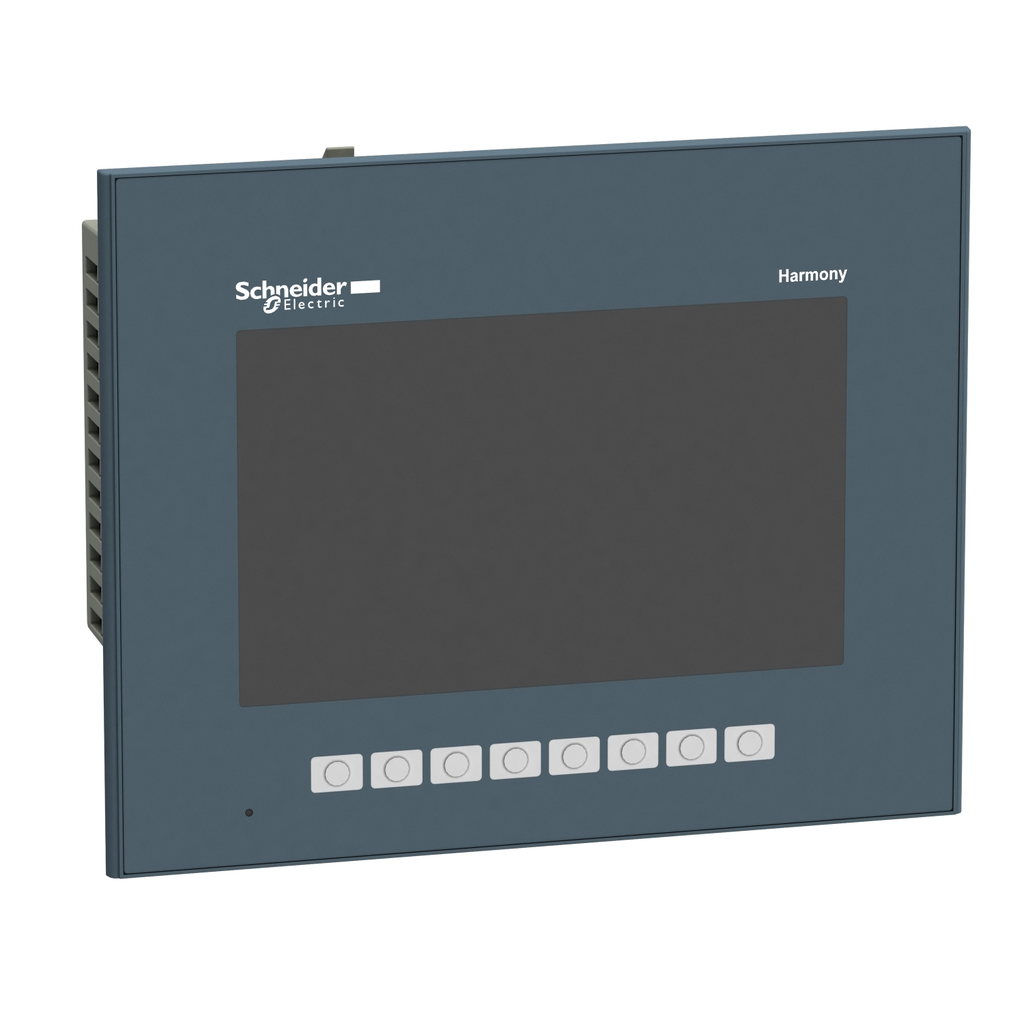

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7" color TFT LCD display, 800 x 480 pixels (WVGA), 8 function keys and 96MB EPROM. This touchscreen operator interface (HMI) is ideal for optimized information and communication. Ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. RS485 host port, ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Features
• Excellent screen resolution
• Touchscreen for displaying synoptic views
• Multicolor status LED for indicating panel's operating mode
• Easy installation and operation
• Easy environment adaptation
• State-of-the-art display
• IP20, IP65 and NEMA 4X protection for indoor use
• Wide range of operating temperature from 32°F to 131°F

• Physical Attributes
• Display Color : 65536 colours
• Display Size : 7 inch
• Conformance Attributes
• Product Certifications : CE, C-tick, KCC, cULus, UKCA, UKEX
• Standards : UL 508, IEC 61000-6-2, IEC 61131-2
• Complementary Attributes
• Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
• Maximum Power Consumption In W : 8 W when power is not supplied to external devices, 5 W when backlight is OFF, 5.5 W when backlight is dimmed, 12 W
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Data Storage Equipment : SD card, <= 32 GB, SDHC card, <= 32 GB
• Local Signalling : status LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
• Vibration Resistance : 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
• Carbon Footprint Of The Distribution Phase A4 : 0.18307, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1.3374, 1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0.3 kg CO2 eq., 0.34768
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 126 kg CO2 eq., 125.81
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 493 kg CO2 eq., 492.51
• Brightness : 16 levels by touch panel, 16 levels by software
• Character Font : Taiwanese (traditional Chinese), ASCII, Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean
• Downloadable Protocols : Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1402012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Control Button Type : 8 operation defined using Vijeo Designer push-button key F1...F8
• Display Color : 65536 colours
• Display Resolution : 800 x 480 pixels WVGA
• Display Type : backlit colour TFT LCD
• Enclosure Material : PPT
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Fixing Mode : by 4 screw clamps
• Halogen Free Status : Product contains halogen above thresholds
• Inrush Current : 30 A
• Package Weight Lbs : 1.533 kg
• Processor Name : ARM926EJ-S
• Product Availability : Stock - Normally stocked in distribution facility
• Product Mounting : flush mounting
• Product Or Component Type : advanced touchscreen panel
• Range Of Product : Harmony GTO
• Resistance To Electrostatic Discharge : 6 kV contact discharge IEC 61000-4-2 level 3
• Returnability : Yes
• Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
• Supply : external source
• Supply Voltage Limits : 19.2-28.8 V
• Sustainable Packaging : No
• Terminal Type : touchscreen display
• Total Lifecycle Carbon Footprint : 620 kg CO2 eq.
• Touch Panel : resistive film, 1000000 cycles
• Type Of Cooling : natural convection
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Us Rated Supply Voltage2 : 24 V DC
• Medium Desc : advanced touchscreen panel, Harmony GTO, 800 x 480pixels WVGA, 7.0inch TFT, 96MB
• Country Of Origin 6 : ZZ
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1402012EN
• Database Version : 2022-01
• Pep Verification Date : 2023-12-19
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To provide 7.5" Wide TFT Smart Display during 10 years and maximum use rate at 12W, based on below function:& 10 - 7.5" Wide Touchscreen panel& 10 - Status LED& 10 - SD Card Interface& 10 - Serial comunication interface (RS-485, RS-232C)& 10 - USB Interface (Type-A, mini-B)& 10 - Ethernet interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - IEC 61000-6-2& 10 - IEC 61131-2
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; ID
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; FR
• Data Backed Up : 128 kB internal RAM SRAM)
• Front Material : PPT
• Memory Description : flash EPROM, 96 MB
• Software Package : Vijeo Designer
• Touch Sensitive Zone : 1024 x 1024
• Global Commercial Status : Commercialised
• Us Rated Supply Voltage5 : 24 V DC
• Environment Attributes Main
• Take Back : Nej, No
• Ambient Air Temperature For Storage : -20-60 °C, -20-60 °C
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
• Operating Altitude : < 6561.68 ft (2000 m), < 6561.68 ft (2000 m)
• ROHS Exemption Information : Yes
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 620.18815
• Ambient Air Temperature For Operation : 0-50 °C
• Circularity Profile : ENVEOLI1402012EN
• Environmental Disclosure : ENVPEP1402012EN
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Nema Degree Of Protection : NEMA 4X front panel (indoor use)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 10-90 % without condensation
• Pep Code : ENVPEP1402012EN
• Pep Verification Date : 2023-12-19
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : advanced touchscreen panel
• Range Of Product : Harmony GTO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United Kingdom, Indonesia
• Depth : 60 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Battery Type : lithium internal RAM 100 days 5 day(s) 10 year(s)
