Advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB

Advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB

SQDHMIGTO5310 HMIGTO5310 785901395164
3660.34 / EACH
  • Certifications: CE, C-tick, CULus, KCC
  • Country of Origin: China
  • Depth: 2.24 in, 57 mm
  • Enclosure Material: PPT
  • Height: 214.5 mm, 8.44 in
  • Monitor Size: 10.4 in
  • Standard: EN 61131-2, IEC 61000-6-2, UL 508
  • Warranty Length: 18 mth
  • Weight: 2 kg, 4.41 lb
  • Width: 10.73 in, 272.5 mm

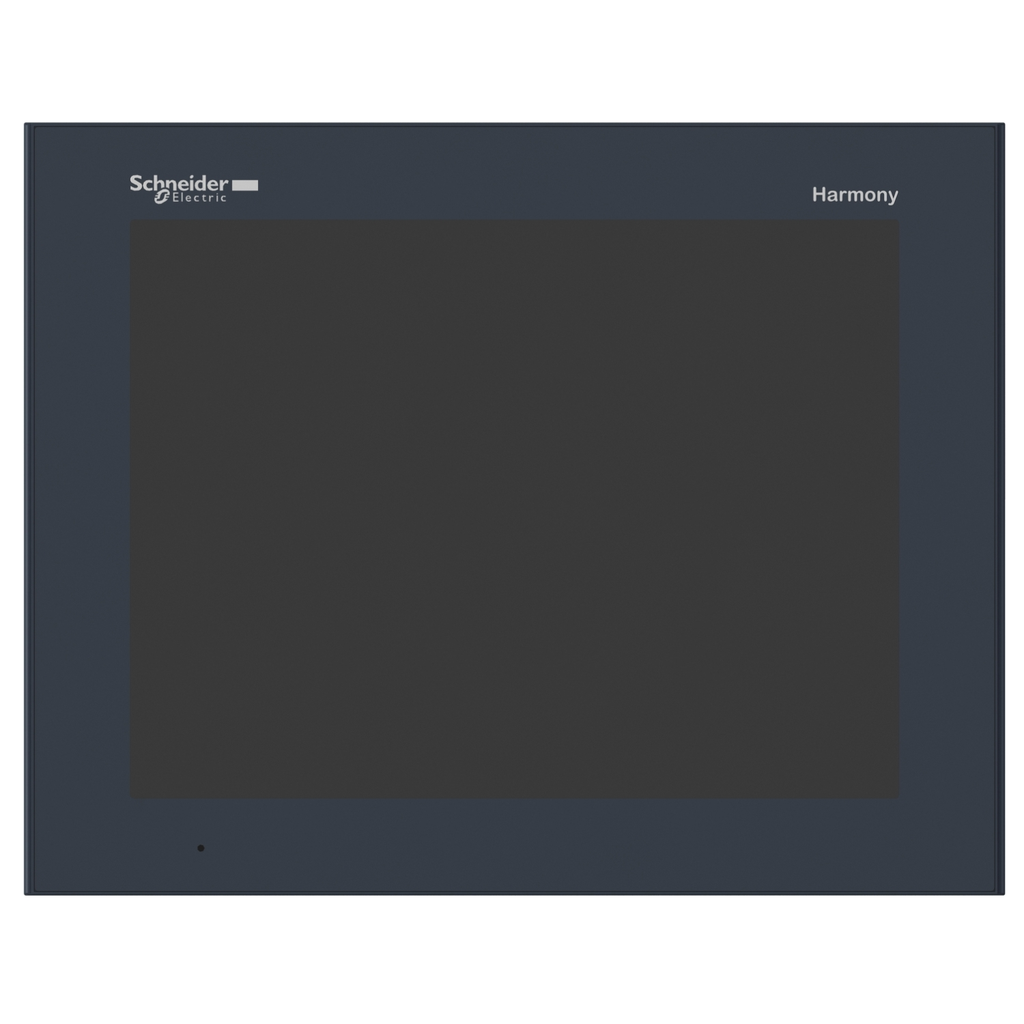

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
  • Product Description
  • Specifications
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
  • Main
    • Battery Type : Lithium internal RAM 100 days 5 day(s) 10 year(s)
    • Display Size : 10.4 inch
    • Range Of Product : Harmony GTO
    • Product Or Component Type : Advanced touchscreen panel
    • Operating System : Harmony
    • Supply : External source
    • Display Colour : 65536 colours
  • Complementary
    • Product Weight : 4.41 lb(US) (2 kg)
    • Display Type : Backlit colour TFT LCD
    • Width : 10.73 in (272.5 mm)
    • Backlight Lifespan : 50000 hours white 77 °F (25 °C)
    • Fixing Mode : by 4 screw clamps
    • Character Font : Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean || ASCII || Taiwanese (traditional Chinese)
    • Depth : 2.24 in (57 mm)
    • Terminal Type : Touchscreen display
    • Local Signalling : Status LED green, steady offline || Status LED green, steady operating || Status LED orange, flashing software starting up || Status LED red, steady power supply (ON) || Status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
    • Display Resolution : 640 x 480 pixels VGA
    • Type Of Cooling : Natural convection
    • Memory Description : Flash EPROM, 96 MB
    • Data Storage Equipment : SD card, <= 32 GB || SDHC card, <= 32 GB
    • Supply Voltage Limits : 19.2…28.8 V
    • Enclosure Material : PPT
    • Product Mounting : Flush mounting
    • Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
    • Data Backed Up : 512 kB internal RAM SRAM)
    • Touch Sensitive Zone : 1024 x 1024
    • Software Designation : Vijeo Designer configuration software >= V6.1
    • Brightness : 16 levels by touch panel || 16 levels by software
    • Inrush Current : 30 A
    • Touch Panel : Resistive film, 1000000 cycles
    • Power Consumption In W : 12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W
    • Downloadable Protocols : Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
    • Front Material : PPT
    • Height : 8.44 in (214.5 mm)
    • Us Rated Supply Voltage : 24 V DC
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • IP Degree Of Protection : IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
    • Ambient Air Temp For Op : 32…131 °F (0…55 °C)
    • Standards : UL 508 || EN 61131-2 || IEC 61000-6-2
    • Relative Humidity : 10…90 % without condensation
    • Ambient Air Temp For Storage : -20…60 °C
    • Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
    • Vibration Resistance : 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
    • Product Certifications : CULus || CE || C-tick || KCC
    • Nema Degree Of Protection : NEMA 4X front panel (indoor use)
    • Resist Electrostatic Dischrg : 6 kV contact discharge IEC 61000-4-2 level 3
    • Operating Altitude : < 6561.68 ft (2000 m)
  • Ordering And Shipping Details
    • GTIN : 00785901395164
    • Country Of Origin : CN
    • Returnability : Yes
    • Category : 22569 - MAGELIS XBT-GT (AND XBT-G)
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : MC2
