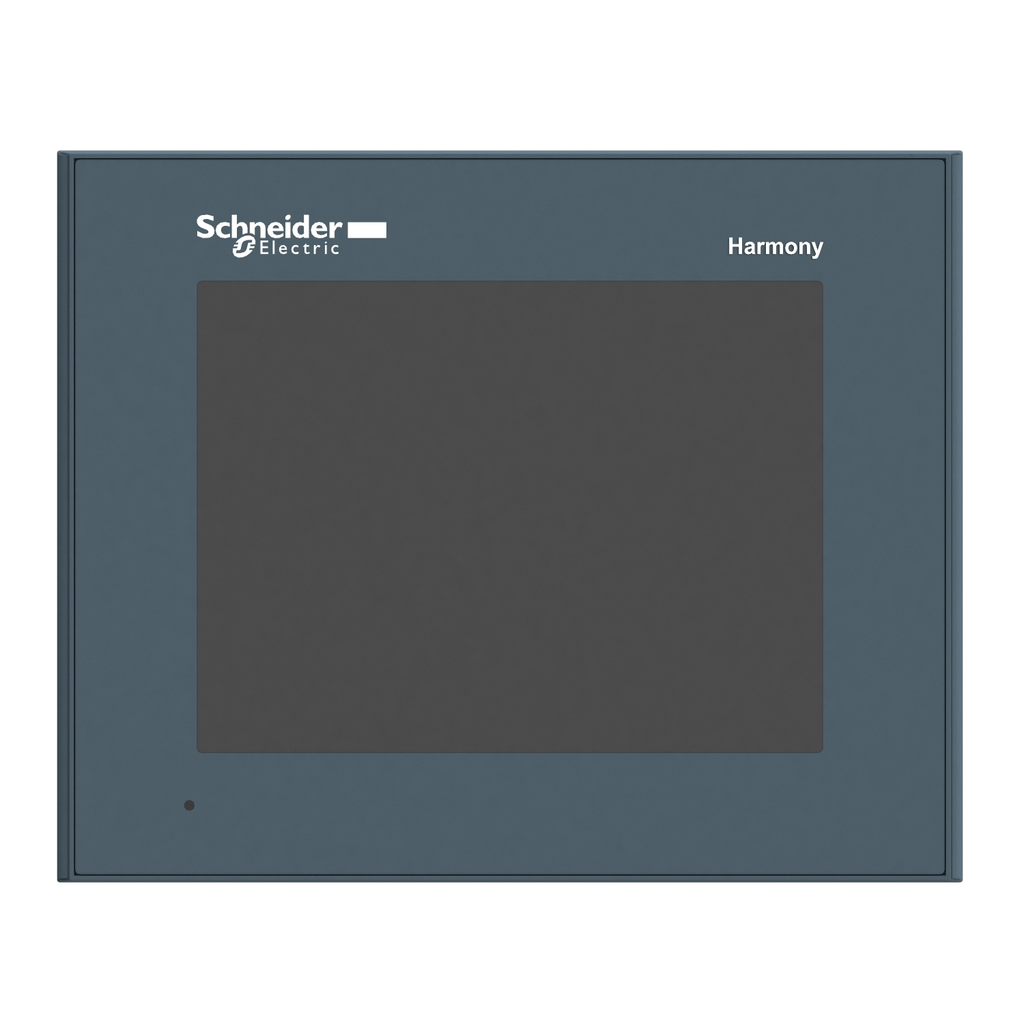

Advanced touchscreen panel, Harmony GTO, 320 x 240 pixels QVGA, 5.7" TFT, 64 MB

5.7 COLOR TOUCH PANEL QVGA-TFT

SQDHMIGTO2300 HMIGTO2300 785901234906
1613.02 / EACH
  • Certifications: CE, CULus, KCC
  • Depth: 59.5 mm
  • Enclosure Material: PPT
  • Height: 137 mm
  • Monitor Size: 5.7 in
  • Net Weight: 0.8 kg
  • Standard: EN 61131-2, IEC 61000-6-2, UL 508
  • Storage Temperature: -20-60 °C
  • Warranty Length: 18 mth
  • Width: 169.5 mm
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display, 320 x 240 pixels (QVGA) and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
  • Product Description
  • Specifications
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display, 320 x 240 pixels (QVGA) and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
  • Complementary
    • Front Material : PPT
    • Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || USB 2.0 type A || USB 2.0 type mini B
    • Downloadable Protocols : Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols
    • Local Signalling : status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
    • Touch Sensitive Zone : 1024 x 1024
    • Height : 137 mm
    • Maximum Power Consumption In W : 6.5 W when power is not supplied to external devices || 4.5 W when backlight is OFF || 5 W when backlight is dimmed || 10.5 W
    • Fixing Mode : by 4 screw clamps
    • Inrush Current : 30 A
    • Supply Voltage Limits : 19.2-28.8 V
    • Terminal Type : touchscreen display
    • Brightness : 16 levels by touch panel || 16 levels by software
    • Enclosure Material : PPT
    • Depth : 59.5 mm
    • Width : 169.5 mm
    • [Us] Rated Supply Voltage : 24 V DC
    • Backlight Lifespan : 50000 hours white 25 °C
    • Display Type : backlit colour TFT LCD
    • Type Of Cooling : natural convection
    • Display Resolution : 320 x 240 pixels QVGA
    • Net Weight : 0.8 kg
    • Data Backed Up : 128 kB internal RAM SRAM)
    • Product Mounting : flush mounting
    • Touch Panel : resistive film, 1000000 cycles
    • Software Designation : Vijeo Designer configuration software >= V6.1
    • Memory Description : flash EPROM, 64 MB
    • Character Font : Chinese (simplified Chinese) || Korean || ASCII (European characters) || Japanese (ANK, Kanji) || Taiwanese (traditional Chinese)
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Disclosure : ENVPEP120712EN_V1
    • Circularity Profile : ENVEOLI120710EN_V1
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
  • Contractual warranty
    • Warranty : 18 months
  • Display Size : 5.7 inch
  • Supply : external source
  • Operating System : Harmony
  • Range Of Product : Harmony GTO
  • Display Colour : 65536 colours
  • Battery Type : lithium internal RAM 100 days 5 day(s) 10 year(s)
  • Product Or Component Type : advanced touchscreen panel
  • Environment
    • Product Certifications : KCC || CE || cULus || C-tick
    • Resistance To Electrostatic Discharge : 6 kV contact discharge IEC 61000-4-2 level 3
    • Vibration Resistance : 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
    • Standards : IEC 61000-6-2 || UL 508 || EN 61131-2
    • Ambient Air Temperature For Storage : -20-60 °C
    • Relative Humidity : 10-90 % without condensation
    • Operating Altitude : < 6561.68 ft (2000 m)
    • Nema Degree Of Protection : NEMA 4X front panel (indoor use)
    • Ambient Air Temperature For Operation : 0-50 °C
    • Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
    • Ip Degree Of Protection : IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
