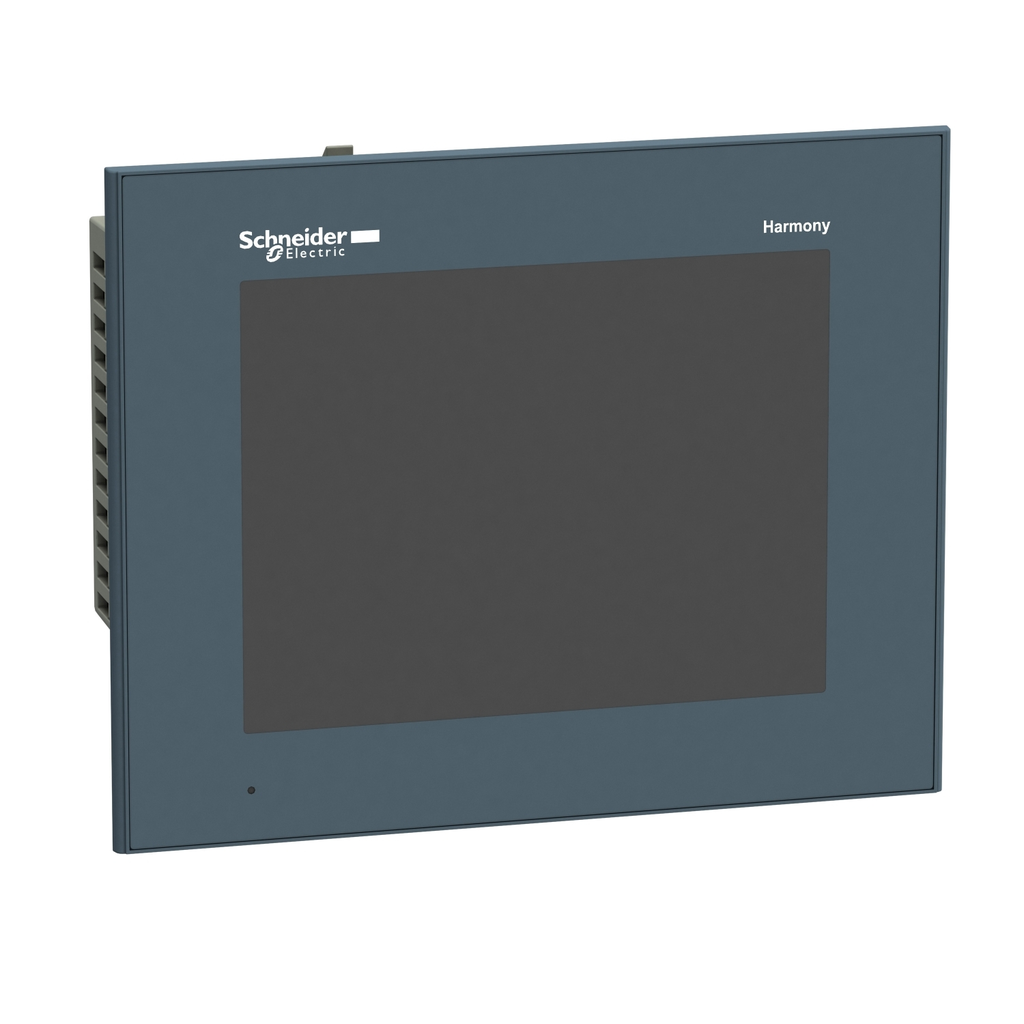

Advanced touchscreen panel, Harmony GTO, 7.5 Color Touch VGA TFT, coated display

HMIGTO4310 Conformal Coated

SQDHMIGTO4310FC HMIGTO4310FC 360648084183
0.00 / EA
  • Certifications: CE, CULus, KCC
  • Depth: 60 mm
  • Enclosure Material: PPT
  • Height: 173 mm
  • Monitor Size: 7.5 in
  • Net Weight: 1.2 kg
  • Standard: EN 61131-2, IEC 61000-6-2, UL 508
  • Storage Temperature: -20-60 °C
  • Width: 218 mm
  • Specifications
  • Complementary
    • Display Resolution : 640 x 480 pixels VGA
    • Data Backed Up : 512 kB internal RAM SRAM)
    • Front Material : PPT
    • Touch Panel : resistive film, 1000000 cycles
    • Product Mounting : flush mounting
    • Touch Sensitive Zone : 1024 x 1024
    • Data Storage Equipment : SD card, <= 32 GB || SDHC card, <= 32 GB
    • Memory Description : flash EPROM, 96 MB
    • Local Signalling : status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
    • Depth : 60 mm
    • Supply Voltage Limits : 19.2-28.8 V
    • [Us] Rated Supply Voltage : 24 V DC
    • Display Type : backlit colour TFT LCD
    • Terminal Type : touchscreen display
    • Enclosure Material : PPT
    • Height : 173 mm
    • Type Of Cooling : natural convection
    • Brightness : 16 levels by touch panel || 16 levels by software
    • Width : 218 mm
    • Net Weight : 1.2 kg
    • Software Designation : Vijeo Designer configuration software >= V6.1
    • Inrush Current : 30 A
    • Fixing Mode : by 4 screw clamps
    • Downloadable Protocols : Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
    • Backlight Lifespan : 50000 hours white 25 °C
    • Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
    • Maximum Power Consumption In W : 8 W when power is not supplied to external devices || 5 W when backlight is OFF || 5.5 W when backlight is dimmed || 12 W
    • Character Font : ASCII || Japanese (ANK, Kanji) || Taiwanese (traditional Chinese) || Korean || Chinese (simplified Chinese)
  • Offer Sustainability
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP120712EN_V1
    • Circularity Profile : ENVEOLI120710EN_V1
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
  • Environment
    • Standards : EN 61131-2 || IEC 61000-6-2 || UL 508
    • Resistance To Electrostatic Discharge : 6 kV contact discharge IEC 61000-4-2 level 3
    • Ambient Air Temperature For Operation : 0-55 °C
    • Operating Altitude : < 6561.68 ft (2000 m)
    • Ambient Air Temperature For Storage : -20-60 °C
    • Nema Degree Of Protection : NEMA 4X front panel (indoor use)
    • Product Certifications : C-tick || cULus || CE || KCC
    • Ip Degree Of Protection : IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
    • Vibration Resistance : 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
    • Relative Humidity : 10-90 % without condensation
    • Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
  • Display Colour : 65536 colours
  • Supply : external source
  • Range Of Product : Harmony GTO
  • Display Size : 7.5 inch
  • Battery Type : lithium internal RAM 100 days 5 day(s) 10 year(s)
  • Product Or Component Type : advanced touchscreen panel
