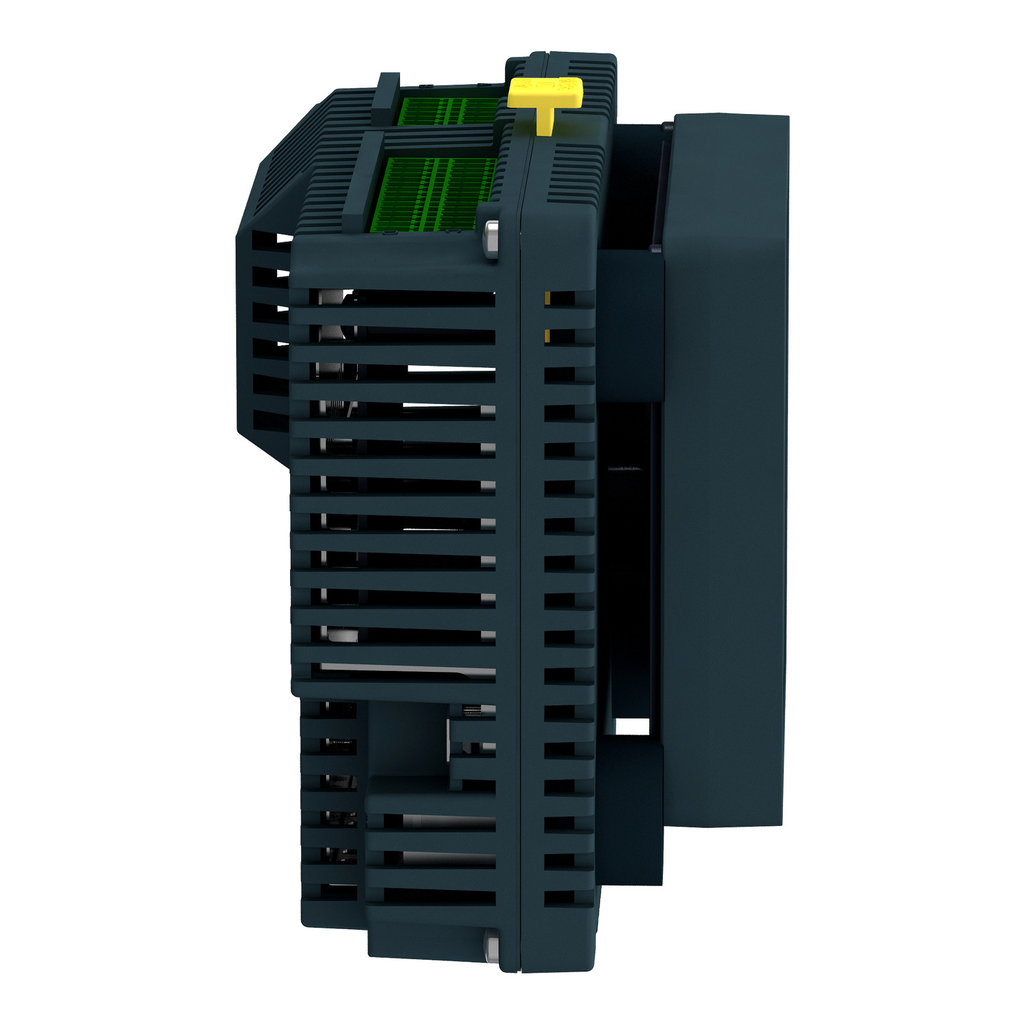

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display and 128MB EPROM. It also has 16 digital inputs, 10 digital outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 3.5 inch
• Conformance Attributes
• Product Certifications : cULus 508, cUL 1604 Class 1 Division 2, KCC, C-tick, cULus CSA 22-2 No 142, GOST, UKCA, UKEX
• Standards : IEC 61000-6-2, FCC Class A, UL 508, EN 61131-2, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01
• Complementary Attributes
• Integrated Connection Type : 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A, CANopen master bus - SUB-D 9
• Maximum Cable Distance Between Devices : shielded cable <10 m fast input, shielded cable <100 m digital input, unshielded cable <50 m digital input
• Maximum Input Frequency : 100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
• Maximum Output Frequency : 100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
• Maximum Pressure : 800...1114 hPa
• Us Rated Supply Voltage : 24 V 20.4-28.8 V)DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Character Font : Japanese (ANK, Kanji), ASCII, Taiwanese (traditional Chinese), Korean, Chinese (simplified Chinese)
• Configurable Filtering Time : 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
• Downloadable Protocols : CANopen, Modbus TCP/IP, Modbus
• Electromagnetic Compatibility : electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
• Insulation Resistance : > 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth, > 10 MOhm between power supply and earth, > 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth
• Memory Description : flash NAND, 128 MB, internal data storage FRAM, 128 kB, application run DRAM, 128 MB
• Number Of Common Point : 1 fast input (HSC mode), 2 digital input
• Sensor Power Supply : 15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA, 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
• Shock Resistance : 147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
• Vibration Resistance : +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, 1 gn 9-150 Hz) IEC 60068-2-6
• View Angle Horiz X Vert : 60° left, 60° right, 40° top, 60° bottom
• Carbon Footprint Of The Distribution Phase A4 : 0.08378526471677157, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.30279590275206714, 0.3 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.22242902628656055
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 68 kg CO2 eq., 68.06446994940146
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 616 kg CO2 eq., 615.6461538461538
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1405010EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1920
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Brightness : 16 levels via touch panel
• Connection Pitch : 3.5 mm
• Display Resolution : 320 x 240 pixels QVGA
• Display Type : backlit LED colour TFT LCD
• Enclosure Material : PC/PBT
• Environmental Characteristic : corrosive gas free
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Fixing Mode : by 1 nut Ø 22 mm 1...6 mm thick panel
• Halogen Free Status : Product contains halogen above thresholds
• Overvoltage Protection : with
• Immunity To Microbreaks : 10 ms
• Inrush Current : 30 A
• Isolation Between Channels : none
• Isolation Between Channels And Internal Logic : 500 V DC
• Local Signalling : no indicator
• Marking : CE
• Number Of Pages : limited by internal memory capacity
• Power Consumption In W : 15 W
• Processor Frequency : 333 MHz
• Processor Name : ARM926EJ-S
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : small touch HMI controller
• Range Of Product : Harmony SCU
• Realtime Clock : built-in
• Returnability : Yes
• Software Designation : SoMachine
• Software Package : SoMachine
• Software Version : v5.9.4
• Supply : external source
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 684 kg CO2 eq.
• Touch Panel : analogue
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Silicone Free : No
• Warranty In Months : 18
• Pep Code : ENVPEP1405010EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-28
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To provide 5.7" TFT Smart Display during 10 years and maximum use rate at 13W, based on below function:& 10 - 5.7 inch Touchscreen panel& 10 - Digital In/Out +Analog In/Out& 10 - Serial comunication interface (RS-232C/485))& 10 - USB2.0 Interface (Type-A, mini-B)& 10 - Ethernet interface& 10 - CANopen master bus& 10,in accordance with the relevant standards:& 10 - FCC Class A& 10 - EN 61131-2& 10 - UL 508& 10 - IEC 61000-6-2& 10 - CSA C22.2 No 213 Class I Division 2& 10 - ANSI/ISA 12-12-01
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 1314
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; CN
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential In 2 : 7
• Offer Owner Code : 190786
• Height Nominal : 74.95 mm
• Width Nominal : 128 mm
• Environment Attributes Main
• Ip Degree Of Protection : IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 684.3196339893107
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -20-60 °C
• Circularity Profile : ENVEOLI1405010EN
• Environmental Disclosure : ENVPEP1405010EN
• Eu Rohs Directive : Compliant By Exemption
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Nema Degree Of Protection : NEMA 4X front panel
• Operating Altitude : <= 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-85 % without condensation
• Storage Altitude : 0-10000 m
• Pep Code : ENVPEP1405010EN
• Pep Verification Date : 2023-11-28
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : small touch HMI controller
• Range Of Product : Harmony SCU
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• Output Attributes
• Discrete Output Current : 2 A 4 A)5 ms opening contact digital output, 2 A 4 A)2 ms closing contact digital output, 300 mA2 ms fast output (normal mode), 50 mA2 ms fast output (PWM or PTO mode)
• Discrete Output Number : 2 fast output (normal mode) source, 8 digital output source
• Discrete Output Voltage : 24 V DC 19.2...28.8 V)transistor, 24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay
• Maximum Output Frequency : 100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
• Surge Protection And Filtering Attributes
• Configurable Filtering Time : 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
• Input Attributes
• Discrete Input Current : 7.83 mA fast input, 5 mA digital
• Discrete Input Number : 2 fast input (normal mode) IEC 61131-2 Type 1, 14 digital input IEC 61131-2 Type 1
• Input Impedance : 2.81 kOhm, 4.7 kOhm
• Input Output Number : 2 fast input FI0...FI1, 14 digital input DI0...DI13, 2 fast output FQ0...FQ1, 8 digital output DQ0...DQ7
• Maximum Input Frequency : 100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
• Discrete Input Voltage : 24 V DC sink or source (positive/negative)
• Specifications
• Country of Origin : Brazil, China, France, United Kingdom, Indonesia, United States
• Depth : 102 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Overview Attributes
• Device Presentation : complete product
