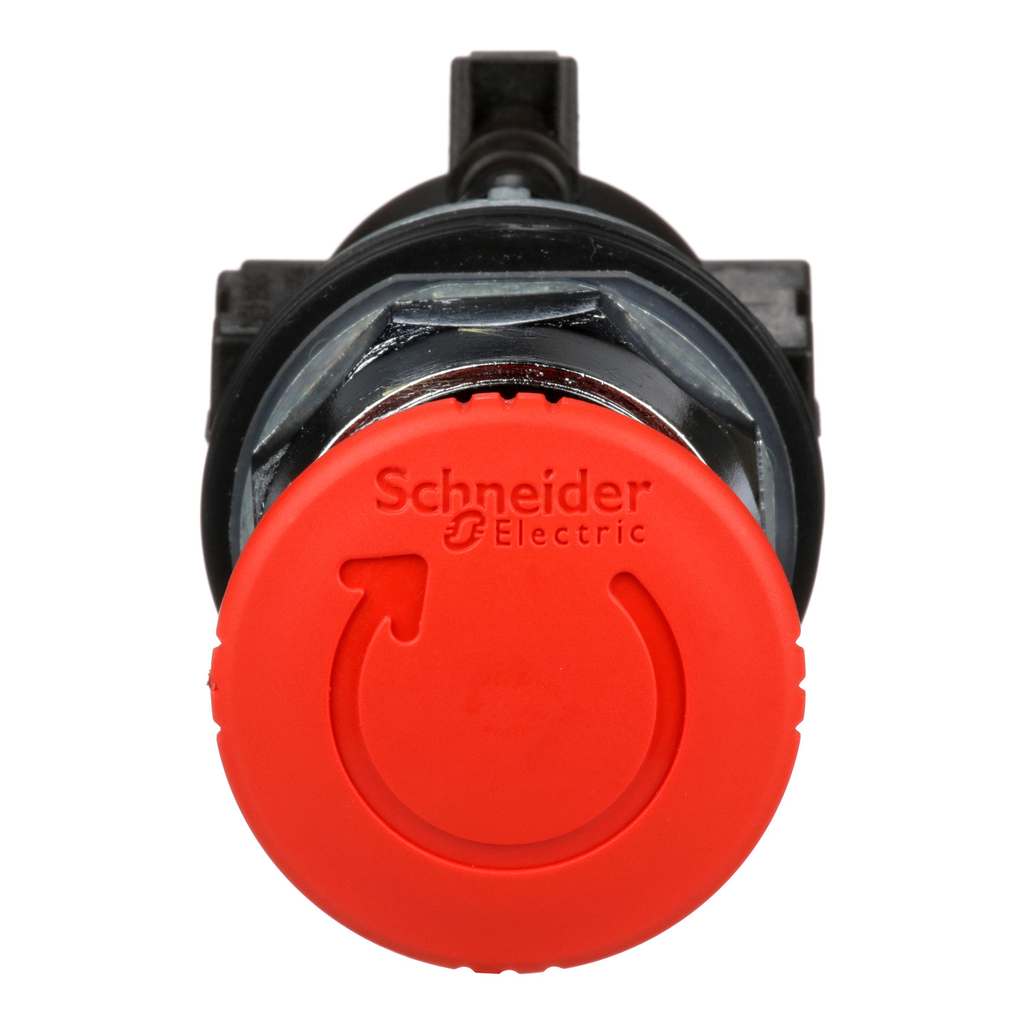

Emergency stop push button, Harmony 9001K, metal, mushroom 40mm, red, 30mm, 2 positions, turn to release, 2 C/O

30MM TTR MUSHROOM 2 C/O

SQD9001KR16H2 9001KR16H2 785901623595
252.02 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Emergency stop push button, Harmony 9001K, metal, mushroom 40mm, red, 30mm, 2 positions, turn to release, 2 C/O-2
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Height: 40 mm
  • Net Weight: 0.141 kg
  • Operating Position: Any Position
  • Warranty Length: 18 mth
  • Weight: 0.141 kg
  • Width: 40 mm
This Schneider Electric Harmony 9001K emergency stop / shutdown 30mm mushroom head modular red push-button has 2 positions, operates with a latched turn to release mechanism. It has a chromium-plated metal bezel and has 2 x NO + 2 x NC contacts. It is supplied with contact block and uses screw-clamp terminals. It fits in a 30mm hole. It has a chromium-plated metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Latched emergency stop mechanism for maximum safety of operators. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).
QTY
  • Product Description
  • Features
  • Specifications
This Schneider Electric Harmony 9001K emergency stop / shutdown 30mm mushroom head modular red push-button has 2 positions, operates with a latched turn to release mechanism. It has a chromium-plated metal bezel and has 2 x NO + 2 x NC contacts. It is supplied with contact block and uses screw-clamp terminals. It fits in a 30mm hole. It has a chromium-plated metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Latched emergency stop mechanism for maximum safety of operators. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Standards : IEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN || ISO 13850, for emergency stop devices if used with emergency stop legend plate type 9001KN || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C 4520 || JIS C 852 || UL 60947-5-5 || CSA C22.2 No 14
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : ae0c4eb9-0bfb-40a4-851f-5c619fbe777d
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Mounting Diameter : 30 mm
    • Operator Profile : mushroom Ø 40 mm
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : red
    • Head Material : plastic
    • Net Weight : 0.141 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • Size : 30 mm
    • Cad Overall Height : 40 mm
    • Device Presentation : complete product
    • Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Contacts Type And Composition : 2 C/O
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Bezel Material : metal
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Operator Position Information : 2 positions
    • Mechanical Durability : 5000000 cycles
    • Type Of Operator : turn to release
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Cad Overall Width : 40 mm
    • Cad Overall Depth : 116 mm
    • Shape Of Screw Head : cross slotted
  • Specifications
    • Country of Origin : Mexico
    • Width : 40 mm
    • Height : 40 mm
    • Weight : 0.141 kg
    • Range Of Product : Harmony 9001K
    • Type Of Operator : turn to release trigger action
    • Product Or Component Type : emergency stop push-button
    • Operator Profile : red mushroom Ø 40 mm, unmarked
    • Device Short Name : 9001K
