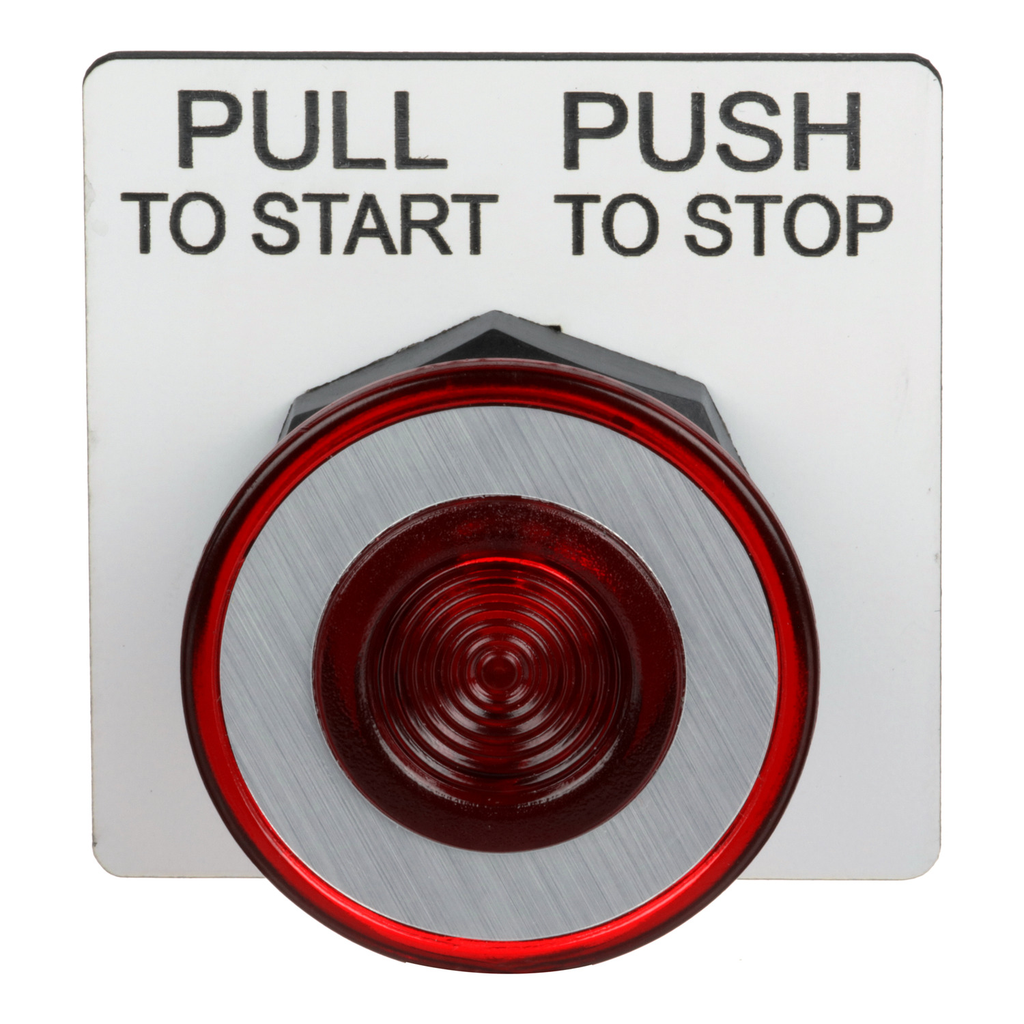

30mm Push Button, Type SK, push pull operator, red mushroom cap

30mm Push Button, Type SK, push pull operator, red mushroom cap

SQD9001SKR9R 9001SKR9R 785901546610
135.14 / EACH
  • Bezel Material: Plastic
  • Certifications: CSA LR25490 Class 3211 03, NEMA, UL 508, UL Listed File E78403 CCN NKCR
  • Country of Origin: Mexico
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.095 kg, 0.21 lb
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Its protection index is IP66. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
  • Product Description
  • Specifications
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Its protection index is IP66. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
  • Environment
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Product Certifications : UL 508 || NEMA || CSA LR25490 class 3211 03 || UL listed file E78403 CCN NKCR
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • IP Degree Of Protection : IP66 IEC 60529
    • Electrical Shock Protect Class : Class II IEC 61140
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Protective Treatment : TC
  • Main
    • Device Short Name : 9001SK
    • Bezel Material : Black plastic
    • Product Or Component Type : Non-illuminated mushroom head push-button
    • Range Of Product : Harmony 9001SK
  • Complementary
    • Operator Profile : mushroom Ø 41 mm, unmarked
    • Mechanical Durability : 5000000 cycles
    • Type Of Operator : maintained
    • Product Weight : 0.21 lb(US) (0.095 kg)
    • Mounting Diameter : 1.18 in (30 mm)
    • Cad Overall Width : 1.81 in (46 mm)
    • Cad Overall Height : 1.77 in (45 mm)
    • Shape Of Signaling Unit Head : Round
    • Cad Overall Depth : 2.72 in (69 mm)
    • Operating Position : Any position
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
  • Ordering And Shipping Details
    • GTIN : 00785901546610
    • Nbr. Of Units In Pkg. : 1
    • Category : 21429 - 9001 SK,SKY
    • Country Of Origin : MX
    • Returnability : Yes
    • Discount Schedule : CS1
  • Contractual Warranty
    • Warranty : 18 months
