30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features spring return flush push. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 56 mm
• Cad Overall Height : 45 mm
• Cad Overall Width : 48 mm
• Complementary Attributes
• Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13
• ICM Rated Short Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13
• IE Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
• UI Rated Insulation Voltage : 250 V 3)IEC 60947-1, 250 V 3)IEC 60947-1, 250 V 3)IEC 60947-1
• UIMP Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1, 2.5 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Shock Protection Class : class II conforming to IEC 61140, class II conforming to IEC 61140
• Operator Profile : black flush, unmarked, black flush, unmarked, black flush, unmarked
• Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
• Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1, 10 A cartridge fuse IEC 60947-5-1, 10 A cartridge fuse IEC 60947-5-1
• Tightening Torque : 0.8-0.8 N.m IEC 60947-1, 0.8-0.8 N.m IEC 60947-1
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• ICM Rated Short Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13
• IE Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
• Connections Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1, screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1, screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25

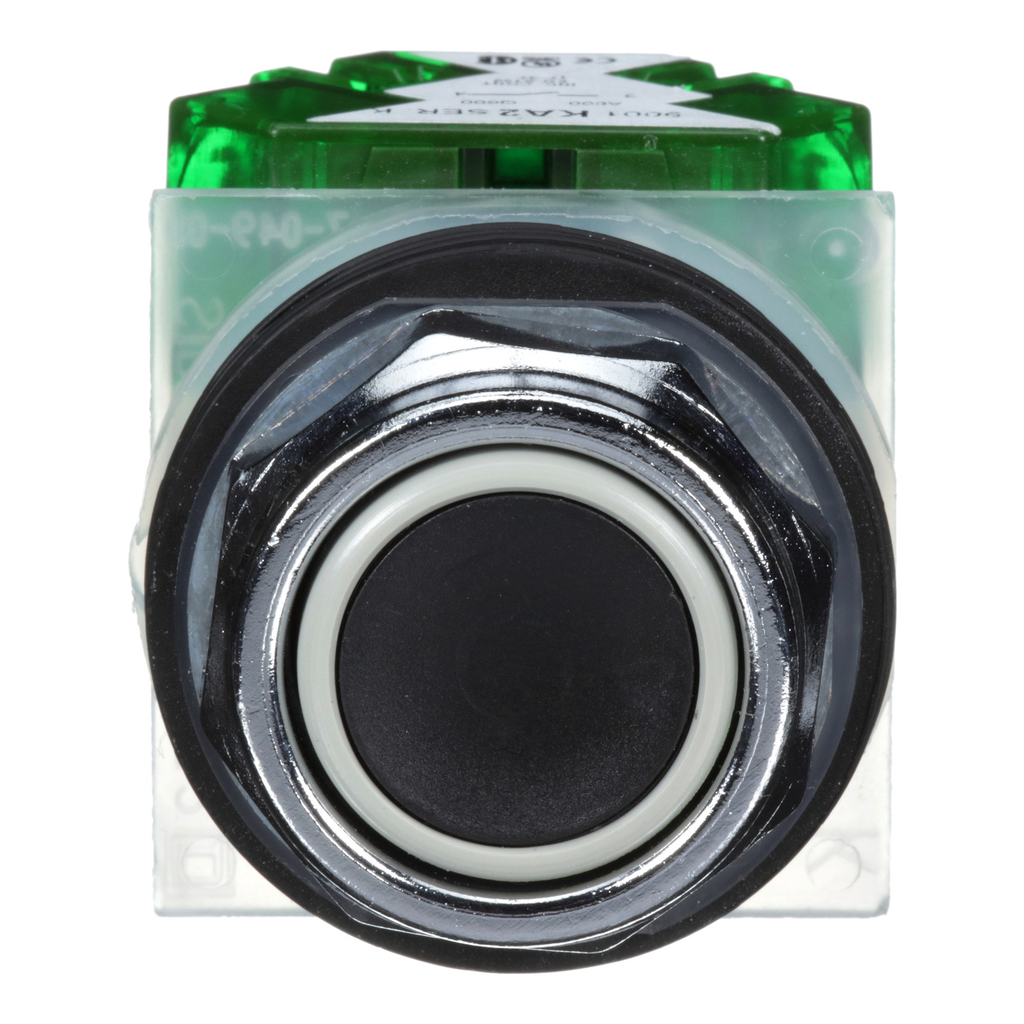

• HTML Description : Black Pushbutton 30mm - Flush Spring Return - 1NO
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : metal
• Compatibility Code : 9001K
• Device Short Name : 9001K
• Mounting Diameter : 30 mm
• Package Weight Lbs : 123.0 g
• Positive Opening : without
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : push-button
• Range Of Product : Harmony 9001K
• Returnability : Yes
• Shape Of Signaling Unit Head : octagonal
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (13-14)NO
• Type Of Operator : spring return
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITH Conventional Free Air Thermal Current : 10 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503027EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
• Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : push-button
• Range Of Product : Harmony 9001K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
