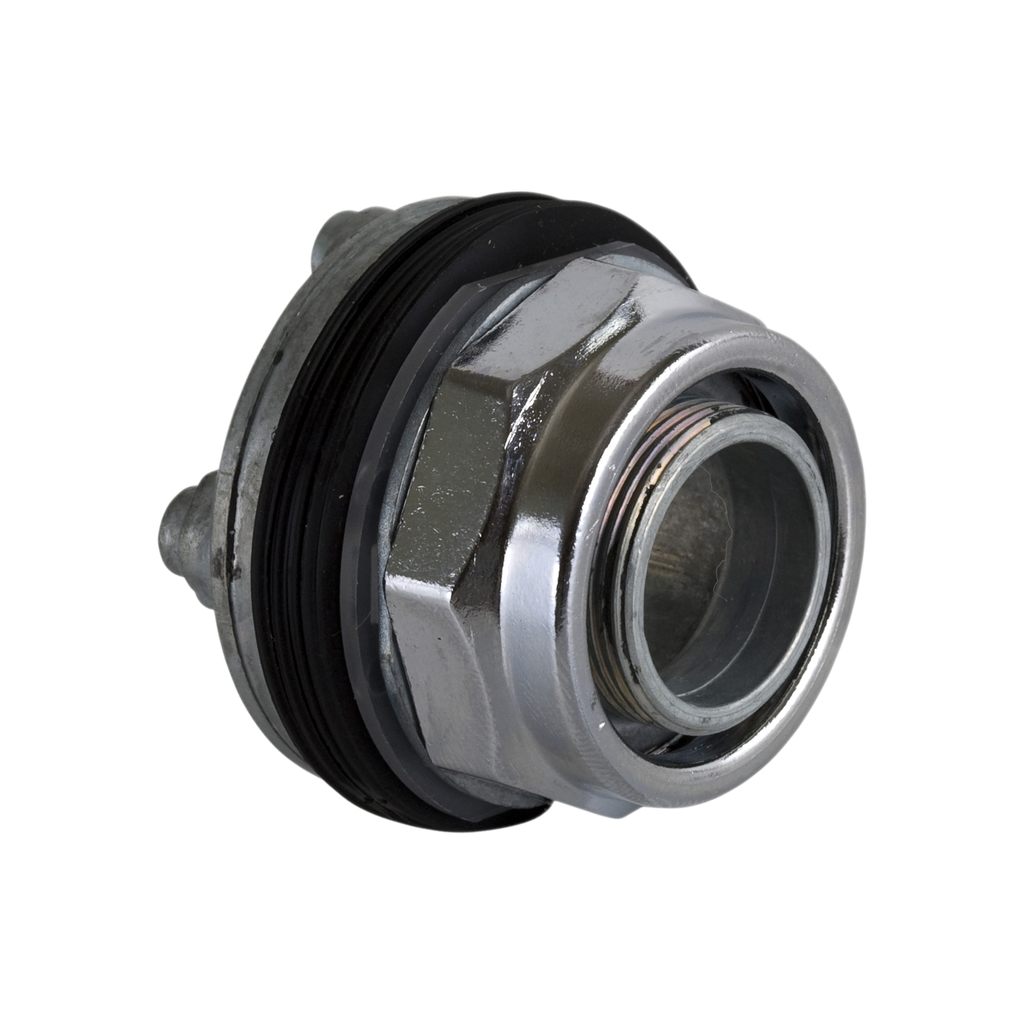

This Harmony 9001KP is a pilot light without light module, without lens. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.

• Features
• Improved security thanks to finger-safe contact blocks and light modules
• Robustness to withstand the harshest environments
• Easy, secure mounting system
• Automatic self-grounding operators without additional wiring
• A large metal set of accessories to customize your product
• Single screw Contact Block Fastening
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : without cap
• Size : 30 mm
• Conformance Attributes
• Product Certifications : CSA LR25490 class 3211 03, CE, UL listed file E42259 CCN NKCR
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Light Source : bulb not included, without
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : metal
• Bulb Base : BA 9s
• Cap Operator Or Lens Color : without cap
• Device Short Name : K
• Light Block Supply : without supply
• Mounting Diameter : 30 mm
• Operating Mode : normal
• Package Weight Lbs : 99.79 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony 9001K
• Returnability : Yes
• Shape Of Screw Head : round
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Connections Terminals : screw clamp terminals
• Medium Desc : Head for pilot light, Harmony 9001K, metal, without cap, 30mm, without bulb
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2503027EN
• Global Commercial Status : Commercialised
• Connections Terminals3 : screw clamp terminals
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• IP Degree Of Protection : IP65/IP66
• Nema Degree Of Protection : NEMA 3R/6/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony 9001K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
