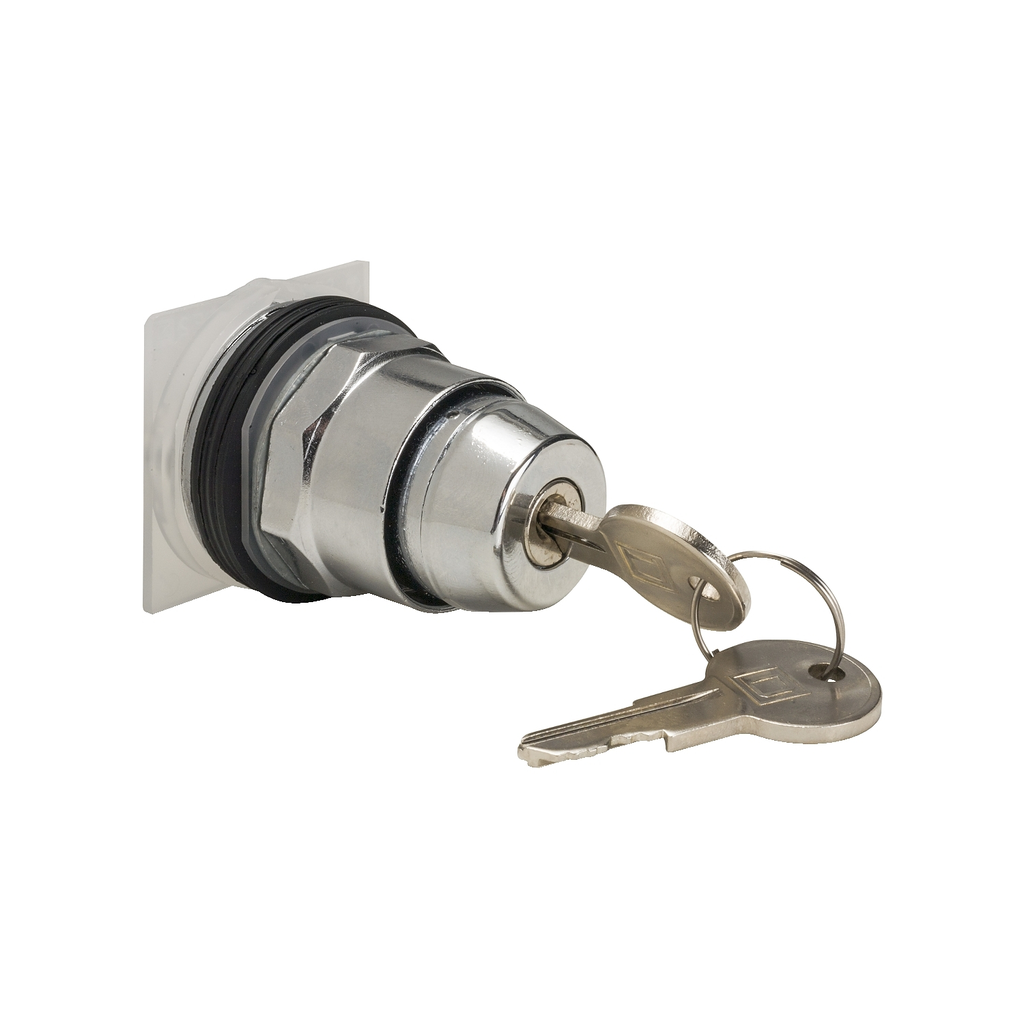

Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 2 positions, spring return right to left

30MM KEY SELECTOR SWITCH 2-POS

SQD9001KS34K1 9001KS34K1 785901913726
200.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 2 positions, spring return right to left-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
This key selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black key operated knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions spring return operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
QTY
  • Product Description
  • Features
  • Specifications
This key selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black key operated knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions spring return operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_CAD&p_File_name=9001KS34K1_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_CAD&p_File_name=9001KS34K1_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_CAD&p_File_name=9001KS34K1_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_CAD&p_File_name=9001KS34K1_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_CAD&p_File_name=9001KS34K1_2D Right Side View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_2D&p_File_name=9001KS34K1_2D.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KS34K1_2D&p_File_name=9001KS34K1_2D.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Accessories
    • 9001KN201
    • 9001KN202
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • black key operated knob
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Cam Profile : 4
    • Device Short Name : K
    • Key Number : E10
    • Key Withdrawal Position : left
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 195.045 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for key selector switch
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : head for key selector switch
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680222&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : basic element
