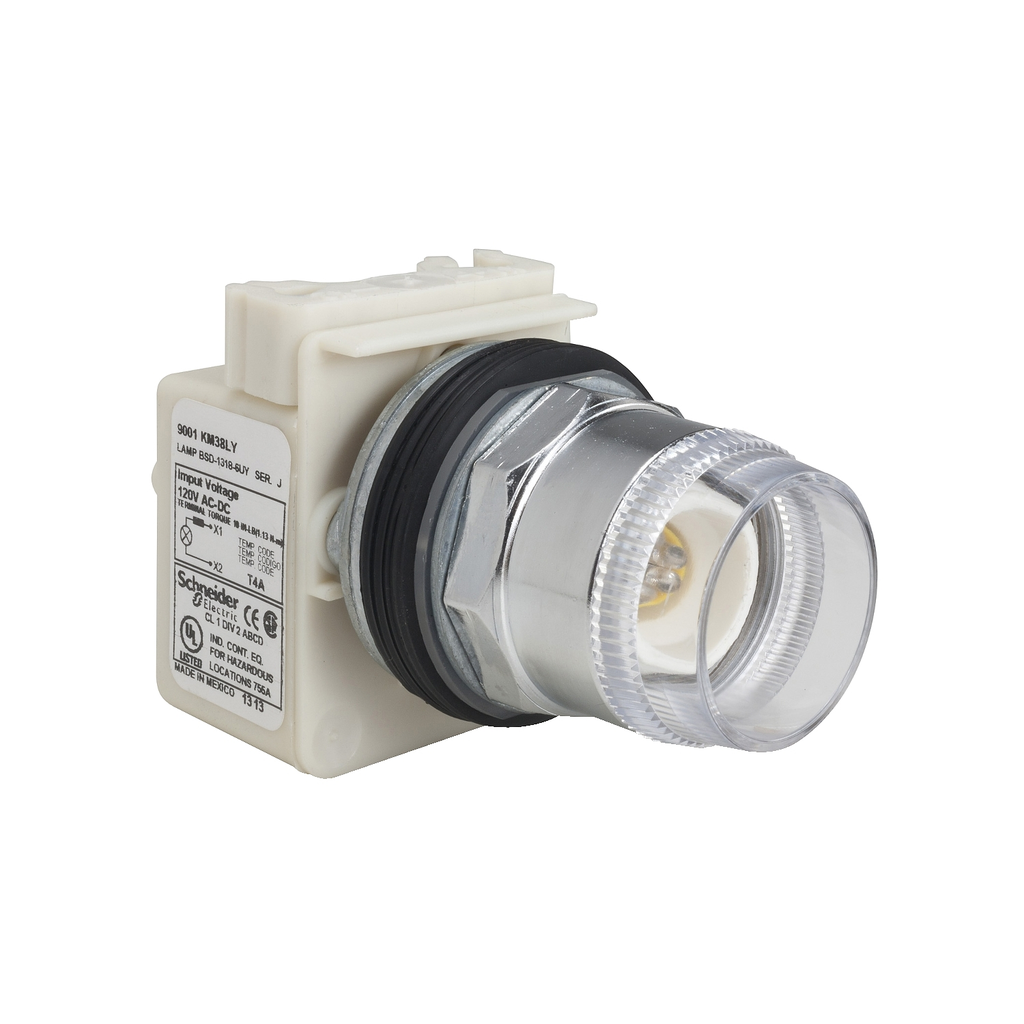

Head for illuminated push button, Harmony 9001K, metal, projecting, without cap, 30mm, spring return, 110...120V

30MM ILLUM PUSH BUTTON

SQD9001K2L1 9001K2L1 785901178545
171.42 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony 9001K, metal, projecting, without cap, 30mm, spring return, 110...120V-1
  • Bezel Material: Metal
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This illuminated push-button with transformer provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits
QTY
  • Product Description
  • Features
  • Specifications
This illuminated push-button with transformer provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : without cap
  • Complementary Attributes
    • Ie Rated Operational Current : 10 A, AC-15, 10 A, DC-13
    • Us Rated Supply Voltage : 110...120 V
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Block Supply : via transformer, via integral transformer
    • Ie Rated Operational Current : 10 A, AC-15, 10 A, DC-13
    • Certificate Agency : NEMA, UL listed file E42259 CCN NKCR, CE, CSA LR 25490 class 3211 03
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Contacts Type And Composition : without contact block
    • Device Short Name : K
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Operator Additional Information : without guard
    • Operator Profile : projecting
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Supply Frequency : 50...60 Hz
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Cap Operator Or Lens Color : without cap
    • Warranty In Months : 18
    • Pep Code : ENVPEP2503027EN
    • Offer Owner Code : 190786
    • Pn : 1
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC001028
    • ETIM 9 : EC001028
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, Mexico, United States
  • Overview Attributes
    • Device Presentation : basic element
