Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V

30MM ILLUM PUSH BUTTON TRANSFO

SQD9001K1L1 9001K1L1 785901005605
189.40 / EACH
http://schema.org/OutOfStock

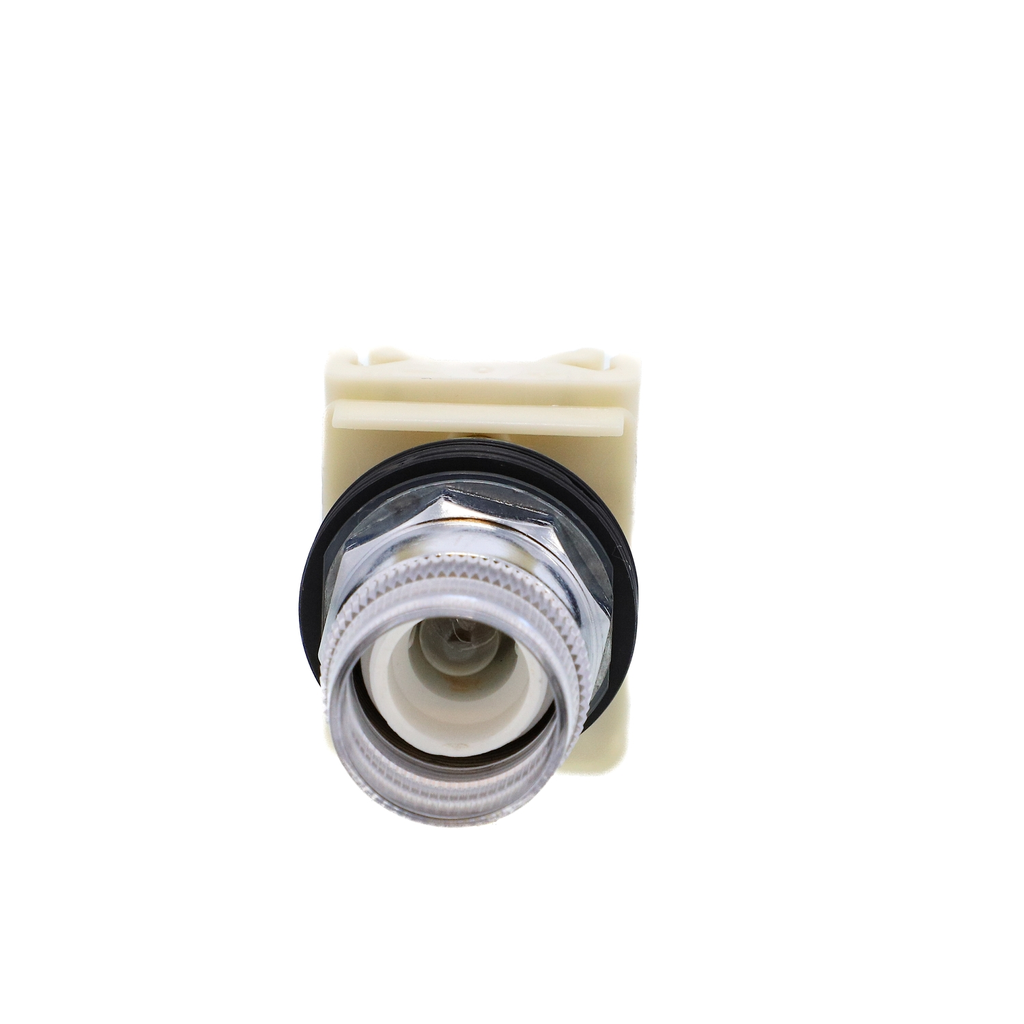

Mayer-DDS-Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V-1
  • Bezel Material: Metal
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This illuminated push-button with transformer and full plastic guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This illuminated push-button with transformer and full plastic guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • Improved security thanks to finger-safe contact blocks and light modules
    • Robustness to withstand the harshest environments
    • Easy, secure mounting system
    • Automatic self-grounding operators without additional wiring
    • A large metal set of accessories to customize your product
    • Single screw Contact Block Fastening
  • Physical Attributes
    • Cap Operator Or Lens Color : without cap
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : CSA LR 25490 class 3211 03, NEMA, UL listed file E42259 CCN NKCR, CE
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Block Supply : via transformer, via integral transformer
    • Ie Rated Operational Current2 : 10 A, AC-15, 10 A, DC-13
    • Ie Rated Operational Current5 : 10 A, AC-15, 10 A, DC-13
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : without cap
    • Contacts Type And Composition : without contact block
    • Device Short Name : K
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Operator Additional Information : plastic guard
    • Operator Profile : flush
    • Package Weight Lbs : 235.868 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Supply Frequency : 50...60 Hz
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Us Rated Supply Voltage2 : 110...120 V
    • Medium Desc : Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic element
