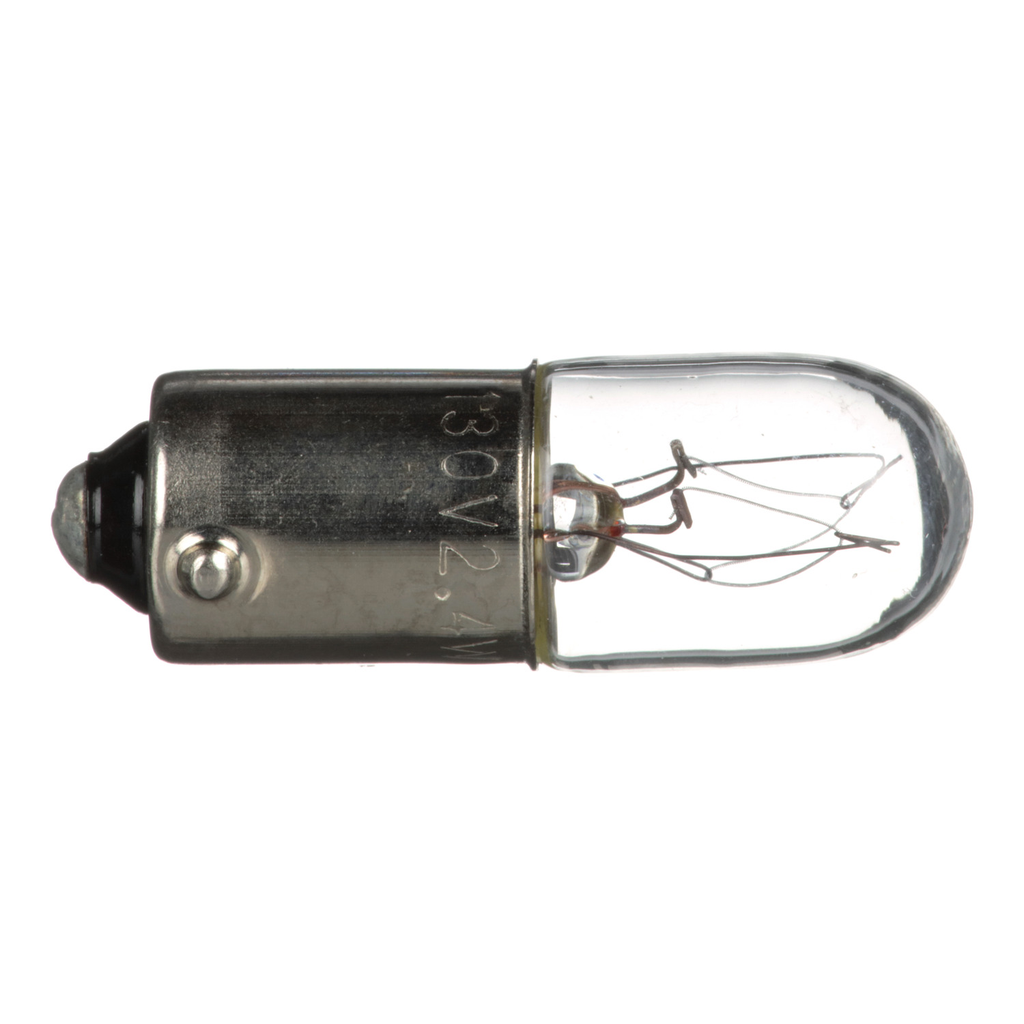

22mm Push Buttons, clear incandescent bulb, with BA9s base, 120 to 130 V, 2.4 W

22mm Push Buttons, clear incandescent bulb, with BA9s base, 120 to 130 V, 2.4 W

SQDDL1CE130 DL1CE130 3389110300345
10.54 / EA
http://schema.org/OutOfStock
  • Diameter: 10 mm
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. It is compatible with Harmony XB4, XB5, XB7. It is sold in lots of 10.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Signalling Color : clear
  • Complementary Attributes
    • Us Rated Supply Voltage : 130 V, 130 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Product Or Component Type : incandescent bulb
    • Supply Voltage : 130 V
    • Signalling Color : clear
    • Carbon Footprint Of The Distribution Phase A4 : 0.000319922, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0033319688
    • Carbon Footprint Of The Installation Phase A5 : 0.0002940351, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0 kg CO2 eq., 0.0150520468
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 25 kg CO2 eq., 24.9276392299
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : In
    • Weee Product Category : 3
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bulb Base : BA 9s
    • Diameter : 10 mm
    • Power Dissipation In W : 2.4 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 10
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 25 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category : lighting accessory
    • Accessory Separate Part Destination : illuminated push-button
    • Accessory Separate Part Type : incandescent bulb
    • Warranty In Months : 18
    • Sale Per Indivisible Qty : 10
    • Pep Code : ENVPEP1808008_V2-EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    • Functional-unit Quantity : 1
    • Functional-unit Unit : Unit
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 52.56
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Offer Owner Code : 190786
    • Pn : 1
    • Length Total : 28 mm
  • Environment Attributes Main
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Carbon Footprint : 24.9466372026
    • Environmental Disclosure : ENVPEP1808008_V2-EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1808008_V2-EN
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : incandescent bulb
  • ETIM
    • ETIM 8 : EC000399
    • ETIM 9 : EC000399
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, China, France, United States
