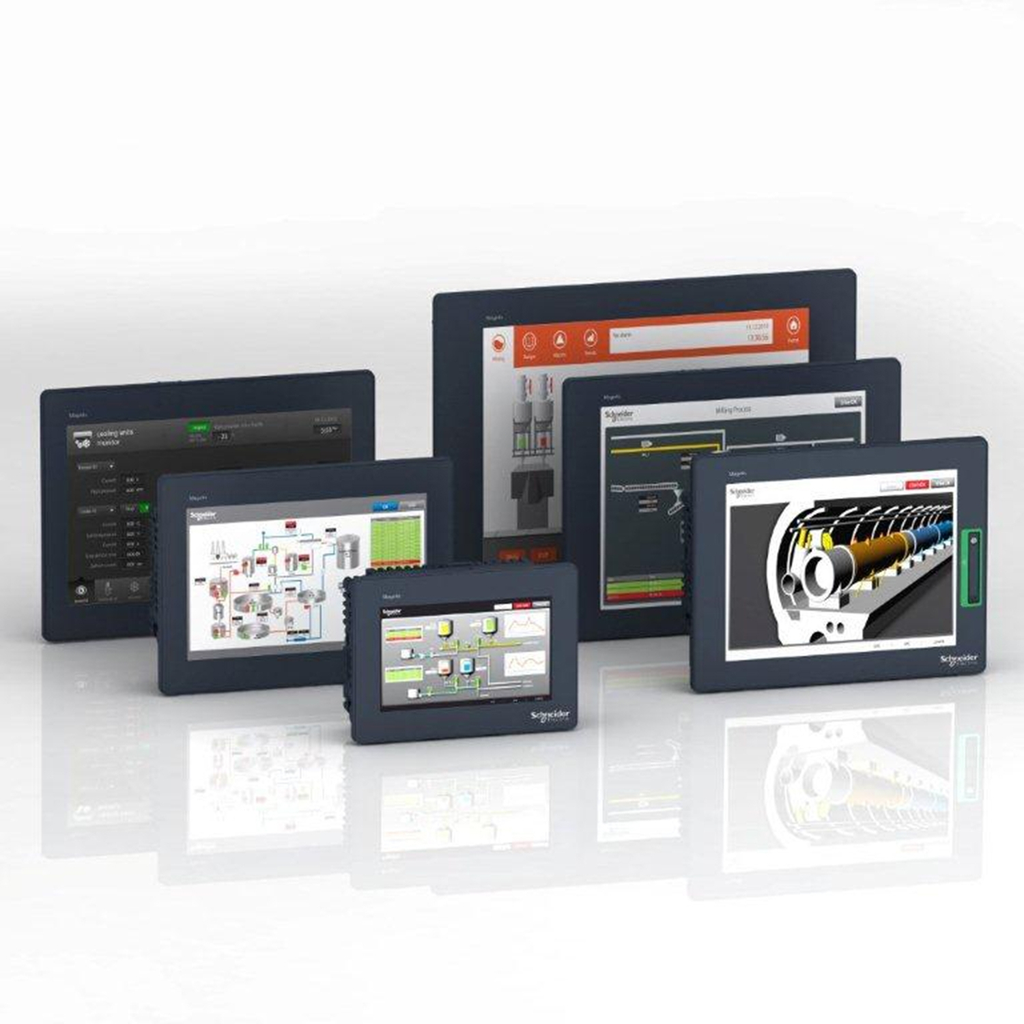

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 15" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 15 inch
• Display Color : 16 million colours
• Complementary Attributes
• Integrated Connection Type : USB 2.0 type A, USB 2.0 type mini B
• Us Rated Supply Voltage : 12...24 V DC power supply
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Vibration Resistance : 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2, 9.8 m/s² 9-150 Hz) IEC 61131-2
• Carbon Footprint Of The Distribution Phase A4 : 0.66874, 0.7 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4.9041, 5 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 1 kg CO2 eq., 1.0269
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 257 kg CO2 eq., 256.52
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 903 kg CO2 eq., 902.94
• Certificate Agency : cULus, RCM, KC, CE, UKCA, UKEX
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Manufacturing Carbon Footprint : 256.52
• Installation Carbon Footprint : 1.0269
• Use Carbon Footprint : 902.94
• End Of Life Carbon Footprint : 4.9041
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1402016EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2514
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Aspect Ratio : 4:3
• Cut Out Dimensions : 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
• Display Resolution : 1024 x 768 pixels XGA
• Display Type : colour TFT LCD
• Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Function Available : brightness sensor
• Halogen Free Status : Product contains halogen above thresholds
• Inrush Current : 30 A
• Pixel Resolution : 1024 x 768
• Power Consumption In W : 22 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : flat screen
• Range Of Product : Harmony GTU
• Returnability : Yes
• Shock Resistance : 147 m/s²IEC 61131-2
• Software Version : v5.9.4
• Supply Voltage Limits : 10.8-28.8 V
• Sustainable Packaging : No
• Terminal Type : touchscreen display
• Total Lifecycle Carbon Footprint : 1 166 kg CO2 eq.
• Touch Panel : multi touch analogue resistive
• Touchscreen Resolution : 1024 x 1024
• Type Of Cooling : natural convection
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Display Color : 16 million colours
• Silicone Free : No
• Warranty In Months : 18
• Pep Code : ENVPEP1402016EN
• Database Version : 2022-01
• Pep Verification Date : 2024-03-13
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional-unit Description : To provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 1927.2
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; ID
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential, In % : 55
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 296 mm
• Width Nominal : 397 mm
• Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3] : 1.2767
• Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6] : 5.6184
• Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3] : 1.0029
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 255.52
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] : 902.27
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4] : 4.9042
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -26.395
• Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 256.52
• Climate Change - Total ( Kg Co2 Eq.) Installation [A5] : 1.0269
• Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] : 902.94
• Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4] : 4.9041
• Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -27.096
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 3458.1
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 9.3169
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] : 10.685
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 23926
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 204.24
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] : -383.34
• Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 3626.9
• Ecotoxicity (Fresh Water) (Ctue) Installation [A5] : 7.0635
• Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] : 12966
• Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 671.46
• Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] : -1718.9
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 279.89
• Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 6.1165
• Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -86.904
• Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] : 8.7041
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 215.93
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] : 1470.7
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] : -10.257
• Marine Aquatic Eutrophication (Kg Of N Equiv) Manufacturing [A1-a3] : 0.3445
• Materials For Recycling (Kg) Installation [A5] : 0.566
• Materials For Recycling (Kg) End Of Life [C1-c4] : 2.4565
• Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 1.0722
• Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 0.8512
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 73.581
• Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 3.3392
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 139.57
• Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 0.2938
• Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -54.502
• Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Manufacturing [A1-a3] : 1.3108
• Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6] : 2.109
• Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3] : 3.6875
• Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] : 7.4925
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 20.26
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 20.26
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] : -0.094
• Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 30172.4334
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 3508.4
• Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 9.3294
• Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 11.454
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 26439
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 204.25
• Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -401.99
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 50.295
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] : 0.7689
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 2512.9
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] : -18.646
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 20.166
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 20.26
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -0.094
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 27588.0419
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 3437.8
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 9.3169
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 10.685
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 23926
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 204.24
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -383.25
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 11.141
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 11.141
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -10.152
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 39.154
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 0.7689
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 2512.9
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -8.4938
• Water Use (M3 Eq) Manufacturing [A1-a3] : 46.017
• Water Use (M3 Eq) Operational Energy Use [B6] : 36.559
• Water Use (M3 Eq) End Of Life [C1-c4] : 1.0532
• Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D] : -6.3517
• Environment Attributes Main
• Ip Degree Of Protection : front panel IP66, front panel IP67
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 1166.05974
• Ambient Air Temperature For Operation : 0-60 °C IEC 61131-2
• Ambient Air Temperature For Storage : -20-60 °C-20-60 °C
• Circularity Profile : ENVEOLI1402016EN
• Environmental Disclosure : ENVPEP1402016EN
• Eu Rohs Directive : Compliant By Exemption
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Nema Degree Of Protection : NEMA 4X front panel
• Operating Altitude : 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 10-90 % non-condensing
• Pep Code : ENVPEP1402016EN
• Pep Verification Date : 2024-03-13
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : flat screen
• Range Of Product : Harmony GTU
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : China, Costa Rica, Spain, France, United Kingdom, Indonesia, United States
• Depth : 67 mm
