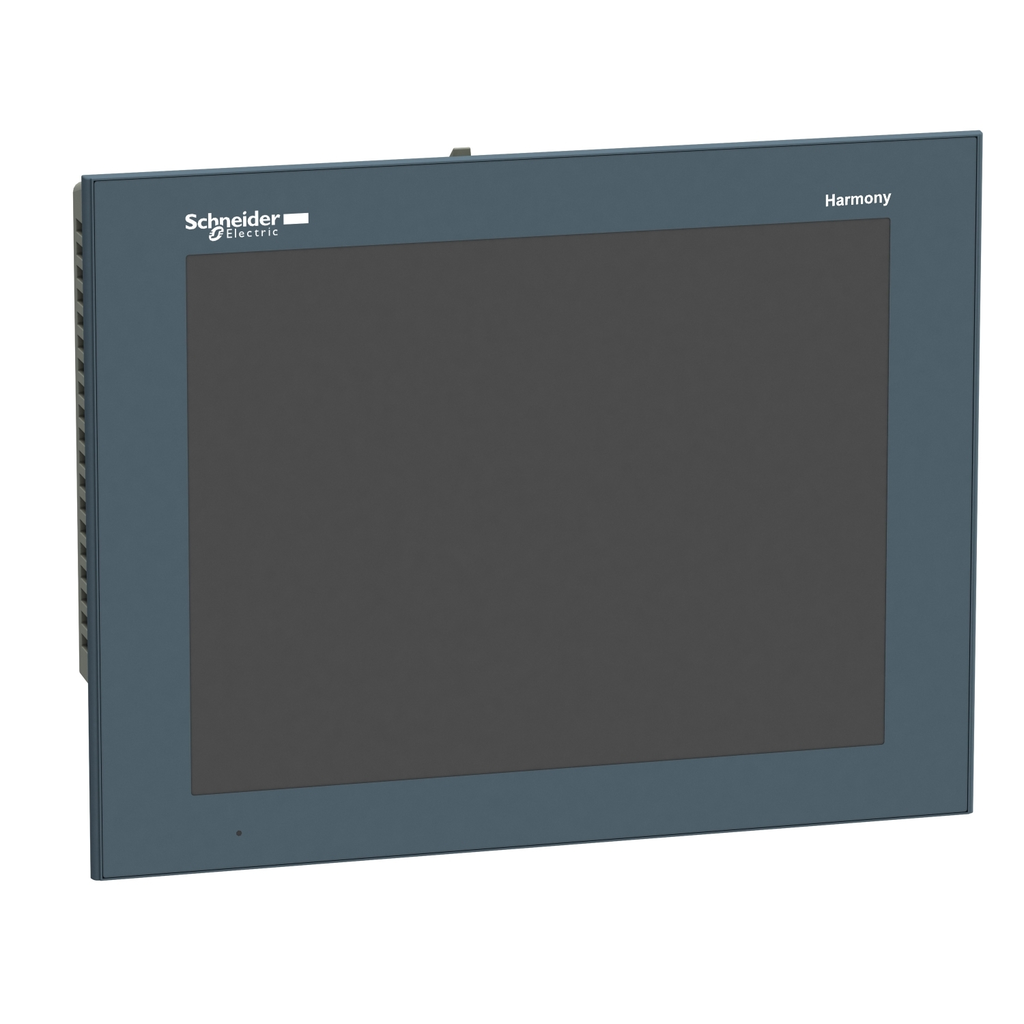

This HMI product belongs to Schneider Electric's Harmony GTO range. This advanced touchscreen panel is made of an aluminum front panel with higher resolution and more color. It comes with a coated 12.1" color TFT LCD display, 800 x 600 pixels (SVGA) and 96MB EPROM. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. It also has 1x SD card slot, 1x host + 1x mini-B USB ports, 1x RS232C port, 1x RS485 port and 1x Ethernet TCP/IP port. This product works at a power consumption of 12 W and a rated voltage from 19.2V to 28.8V DC. Its dimensions are 315mm (width) x 241mm (height) x 56mm (depth) and weighs 2.5 kg. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. It is easily programmable with Vijeo Designer, with almost not coding needed. It can be flush mounted and fixed by 4 screw clamps.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Display Size : 12.1 inch
• Display Color : 65536 colours
• Complementary Attributes
• Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
• Maximum Power Consumption In W : 12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W
• Us Rated Supply Voltage : 24 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Brightness : 16 levels by touch panel, 16 levels by software
• Character Font : Japanese (ANK, Kanji), Taiwanese (traditional Chinese), Korean, Chinese (simplified Chinese), ASCII (European characters)
• Data Backed Up : 512 KB internal RAM SRAM)
• Data Storage Equipment : SD card, <= 32 GB, SDHC card, <= 32 GB
• Downloadable Protocols : Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
• Fixing Mode : by 4 screw clamps
• Local Signalling : status LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
• Resistance To Electrostatic Discharge : 6 kV contact discharge IEC 61000-4-2 level 3
• Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
• Touch Panel : resistive film, 1000000 cycles
• Vibration Resistance : 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
• Carbon Footprint Of The Distribution Phase A4 : 0.3923, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 3.1312
• Carbon Footprint Of The Installation Phase A5 : 0.73658, 0.7 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 205 kg CO2 eq., 204.77
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 698 kg CO2 eq., 697.73
• Certificate Agency : KCC, CE, cULus, C-tick, UKCA, UKEX
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : HMI - Graphical display unit
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Manufacturing Carbon Footprint : 204.77
• Distribution Carbon Footprint : 0.3923
• Use Carbon Footprint : 697.73
• End Of Life Carbon Footprint : 3.1312
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1402026EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2514
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Display Resolution : 800 x 600 pixels SVGA
• Display Type : backlit colour TFT LCD
• Enclosure Material : PPT
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Front Material : PPT
• Halogen Free Status : Product contains halogen above thresholds
• Inrush Current : 30 A
• Memory Description : flash EPROM, 96 MB
• Processor Name : ARM926EJ-S
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Mounting : flush mounting
• Product Or Component Type : advanced touchscreen panel
• Range Of Product : Harmony GTO
• Returnability : No
• Software Package : Vijeo Designer
• Software Version : v5.9.4
• Supply : external source
• Supply Voltage Limits : 19.2-28.8 V
• Sustainable Packaging : No
• Terminal Type : touchscreen display
• Total Lifecycle Carbon Footprint : 907 kg CO2 eq.
• Touch Sensitive Zone : 1024 x 1024
• Type Of Cooling : natural convection
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Display Color : 65536 colours
• Silicone Free : No
• Warranty In Months : 18
• Pep Code : ENVPEP1402026EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-02
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To provide 12.1" TFT Smart Display during 10 years and maximum use rate at 17W, based on below function:& 10- 12.1-inch Touchscreen panel.& 10- SD Card Interface& 10- Serial comunication interface (RS-422/485, RS-232C)& 10- USB Interface (Tyepe-A, minir-B)& 10- Ethernet interface
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 1489.2
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; ID
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US
• Recyclability Potential, In % : 26
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 241 mm
• Width Nominal : 315 mm
• Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3] : 1.0771
• Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6] : 4.3415
• Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3] : 0.3255
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle : 905.8861
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 204.45
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Distribution [A4] : 0.3923
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5] : 0.7039
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] : 697.21
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4] : 3.1299
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -3.6557
• Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 204.77
• Climate Change - Total ( Kg Co2 Eq.) Distribution [A4] : 0.3923
• Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] : 697.73
• Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4] : 3.1312
• Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] : -3.6931
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 2649.6
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 5.4656
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] : 7.6718
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 18488
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 149.39
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] : -70.42
• Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 1900.5
• Ecotoxicity (Fresh Water) (Ctue) Installation [A5] : 5.0182
• Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] : 10019
• Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 578.45
• Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] : -57.808
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 347.2
• Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 4.111
• Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -67.207
• Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] : 6.7259
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 142.8
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] : 1136.4
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] : -2.3023
• Materials For Recycling (Kg) Installation [A5] : 0.404
• Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 1.0798
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 34.697
• Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 2.3917
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 107.85
• Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -12.704
• Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6] : 1.6297
• Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3] : 2.56
• Terrestrial Eutrophication (Mole Of N Equiv) Distribution [A4] : 0.013
• Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] : 5.7897
• Terrestrial Eutrophication (Mole Of N Equiv) End Of Life [C1-c4] : 0.0189
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 24.045
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 24.045
• Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 23293.1238
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 2700
• Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 5.4728
• Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 8.221
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 20430
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 149.43
• Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -73.854
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 50.366
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 1941.8
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] : -3.4331
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 24.045
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 24.045
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 2625.6
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 5.4656
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 7.6718
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 18488
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 149.39
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -70.42
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 7.8742
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 7.8742
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -7.272
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 42.492
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 1941.8
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : 3.8389
• Water Use (M3 Eq) Manufacturing [A1-a3] : 46.348
• Water Use (M3 Eq) Operational Energy Use [B6] : 28.25
• Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D] : -1.7379
• Environment Attributes Main
• Ip Degree Of Protection : IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
• Nema Degree Of Protection : NEMA 4X front panel (indoor use)
• Relative Humidity : 10-90 % without condensation
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 906.76008
• Ambient Air Temperature For Operation : 0-55 °C
• Ambient Air Temperature For Storage : -20-60 °C-20-60 °C
• Circularity Profile : ENVEOLI1402026EN
• Environmental Disclosure : ENVPEP1402026EN
• Eu Rohs Directive : Compliant By Exemption
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Operating Altitude : < 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1402026EN
• Pep Verification Date : 2023-11-02
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : advanced touchscreen panel
• Range Of Product : Harmony GTO
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• Specifications
• Country of Origin : China
• Depth : 56 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Battery Type : lithium internal RAM 100 days 5 day(s) 10 year(s)
