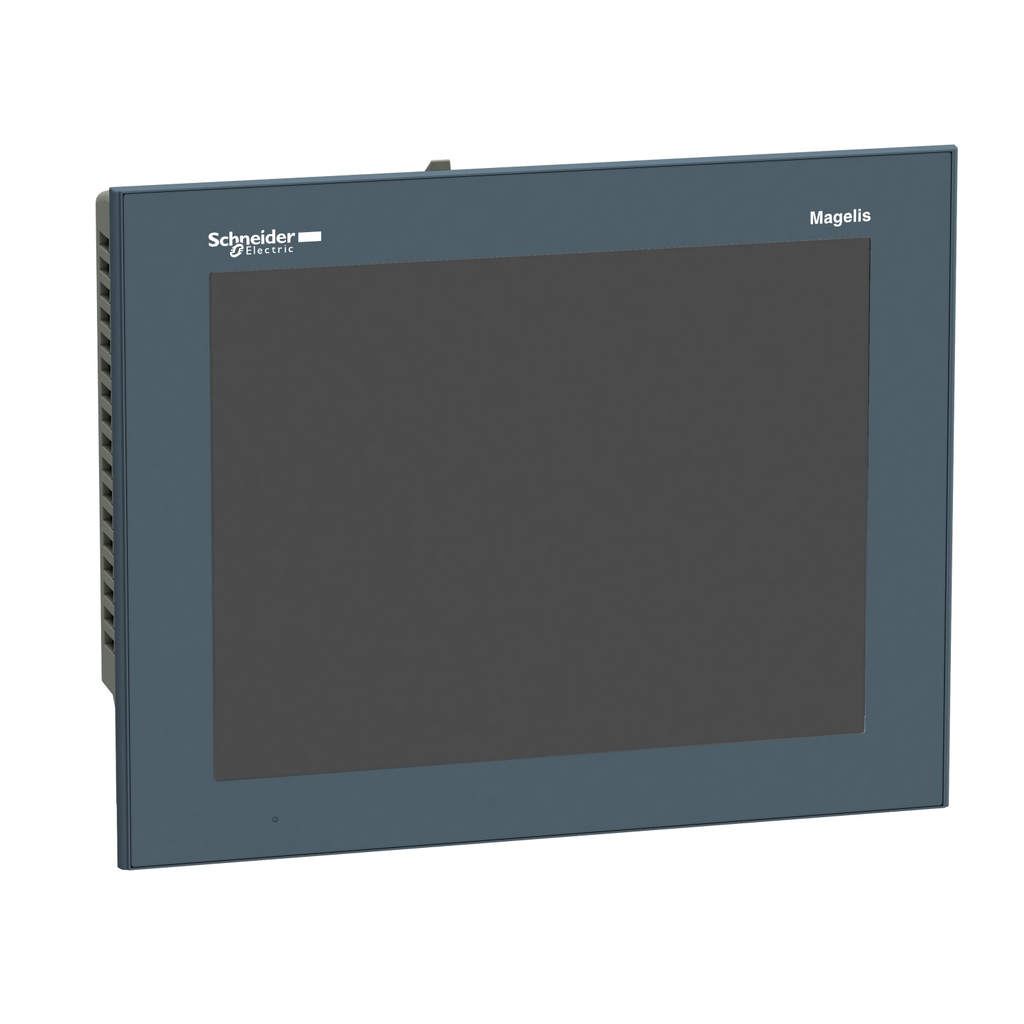

10.4 Color Touch Panel VGA-TFT - coated display

10.4 Color Touch Panel VGA-TFT - coated display

SQDHMIGTO5310FC HMIGTO5310FC 360648084182
0.00 / EA
  • Certifications: CE, C-tick, CULus, KCC
  • Depth: 2.24 in, 57 mm
  • Enclosure Material: PPT
  • Height: 214.5 mm, 8.44 in
  • Monitor Size: 10.4 in
  • Standard: EN 61131-2, IEC 61000-6-2, UL 508
  • Weight: 2 kg, 4.41 lb
  • Width: 10.73 in, 272.5 mm
  • Specifications
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : CN
    • GTIN : 03606480841828
    • Discount Schedule : MC2
    • Category : 22569 - MAGELIS XBT-GT (AND XBT-G)
    • Returnability : No
  • Main
    • Display Colour : 65536 colours
    • Product Or Component Type : Advanced touchscreen panel
    • Range Of Product : Harmony GTO
    • Battery Type : Lithium internal RAM 100 days 5 day(s) 10 year(s)
    • Supply : External source
    • Display Size : 10.4 inch
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Touch Panel : Resistive film, 1000000 cycles
    • Character Font : Taiwanese (traditional Chinese) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Korean
    • Data Storage Equipment : SD card, <= 32 GB || SDHC card, <= 32 GB
    • Terminal Type : Touchscreen display
    • Data Backed Up : 512 kB internal RAM SRAM)
    • Fixing Mode : by 4 screw clamps
    • Inrush Current : 30 A
    • Touch Sensitive Zone : 1024 x 1024
    • Enclosure Material : PPT
    • Integrated Connection Type : COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
    • Type Of Cooling : Natural convection
    • Power Consumption In W : 12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W
    • Memory Description : Flash EPROM, 96 MB
    • Depth : 2.24 in (57 mm)
    • Product Mounting : Flush mounting
    • Height : 8.44 in (214.5 mm)
    • Brightness : 16 levels by touch panel || 16 levels by software
    • Local Signalling : Status LED green, steady offline || Status LED green, steady operating || Status LED orange, flashing software starting up || Status LED red, steady power supply (ON) || Status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
    • Backlight Lifespan : 50000 hours white 77 °F (25 °C)
    • Supply Voltage Limits : 19.2…28.8 V
    • Product Weight : 4.41 lb(US) (2 kg)
    • Software Designation : Vijeo Designer configuration software >= V6.1
    • Downloadable Protocols : Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
    • Display Resolution : 640 x 480 pixels VGA
    • Us Rated Supply Voltage : 24 V DC
    • Display Type : Backlit colour TFT LCD
    • Front Material : PPT
    • Width : 10.73 in (272.5 mm)
  • Environment
    • Nema Degree Of Protection : NEMA 4X front panel (indoor use)
    • Product Certifications : C-tick || CE || CULus || KCC
    • Relative Humidity : 10…90 % without condensation
    • Ambient Air Temp For Op : 32…131 °F (0…55 °C)
    • IP Degree Of Protection : IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
    • Operating Altitude : < 6561.68 ft (2000 m)
    • Resist Electrostatic Dischrg : 6 kV contact discharge IEC 61000-4-2 level 3
    • Shock Resistance : 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
    • Vibration Resistance : 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
    • Standards : IEC 61000-6-2 || UL 508 || EN 61131-2
    • Ambient Air Temp For Storage : -4…140 °F (-20…60 °C)
