PASS & SEYMOUR

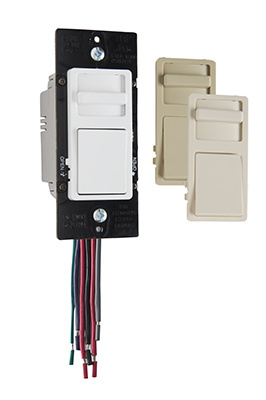

Wide Slide Series 0-10V Fluorescent/LED Single Pole/3-Way Slide Dimmer, Preset, Tri-Color

Wide Slide Series 0-10V Fluorescent/LED Single Pole/3-Way Slide Dimmer, Preset, Tri-Color

PSSWS4FBL3PTC WS4FBL3PTC 785007047721
0.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Wide Slide Series 0-10V Fluorescent/LED Single Pole/3-Way Slide Dimmer, Preset, Tri-Color-1
  • Applications: Commercial, Hospitality, Residential
  • Color: Ivory, Light Almond, White
  • Country of Origin: China
  • Depth: 1.25 in
  • Finish: Matte
  • Frequency: 60 Hz
  • Height: 4.25 in
  • Indoor/Outdoor: Indoor
  • Load Type: Fluorescent, LED
  • Material: Steel,Thermoplastic
  • Mounting Type: Wall Box
  • Number of Poles: 3
  • Number of Switches: 1
  • Product Series: Decorator
  • Switch Type: Rocker, Slider
  • Voltage: 120 V, 277 V
  • Warranty Length: Limited Lifetime
  • Width: 1.75 in
  • Wire Size: 10 AWG, 14 AWG
For use on 0-10V, 4-wire, 120V & 277V fluorescent dimming ballasts and LED fixtures.
QTY
  • Product Description
  • Features
  • Specifications
For use on 0-10V, 4-wire, 120V & 277V fluorescent dimming ballasts and LED fixtures.
  • Features
    • For use with 0-10V, 4 wire, 120V 10A/277V 5A LED and fluorescent dimming drivers/ballasts
    • Convenient operation combines ON/OFF Decorator switch with separate slider for dimming control
    • Low voltage pig tails labeled separately
    • Preset, Single Pole and 3-Way Operation
    • Green LED glows when OFF to make dimmer easy to find in the dark
    • Sleek, ergonomic Pass and Seymour Decorator style matches other Decorator devices
    • Wider slide control for easier dimming operation
    • Built-in power pack included
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.25 in
    • Height : 4.25 in
    • Preset : Yes
    • Width : 1.75 in
    • Load Type : LED
    • Country of Origin : China
    • Standard : RoHS
    • Standard : cULus
    • Switch Type : Rocker
    • Switch Type : Slider
    • Voltage : 120/277 VAC
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Frequency Rating : 60 Hz
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Special Features : Preset
    • Wire Size : #14 - #10 AWG
    • Color : Ivory,Light Almond,White
    • Finish : Matte
    • Material : Steel,Thermoplastic
    • Product Line : Pass & Seymour
    • Product Series : Decorator
    • Requires Neutral Wire : No
    • Features : Color Change Kit
    • Load Rating : 277V 5A (LED)
    • Load Rating : 120V 10A (LED)
    • Dimming Compatibility : 0-10 V
    • Application Sector : Commercial
    • Application Sector : Hospitality
    • Application Sector : Residential
    • Features : Low-End Trim (Dim Range)
    • Load Rating : 277V 5A (Fluorescent)
    • Number of Poles : Single Pole 3-Way
    • Wire Connection Type : Flying Leads
    • Load Rating : 120V 10A (Fluorescent)
    • Warranty Type : Limited Lifetime Warranty
    • Maximum Humidity : 95% (relative humidity, non-condensing)
    • Environmental Conditions : Humidity: Less than 95% non condensing
