PASS & SEYMOUR

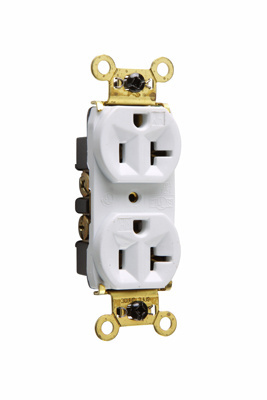

Weather-Resistant Heavy Duty Spec Grade Receptacles, Back and Side Wire, 20A, 125V, White

WR DUP RECP B+S WIRE 20A/125V

PSSWR5362W WR5362-W 785007242508
22.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Weather-Resistant Heavy Duty Spec Grade Receptacles, Back and Side Wire, 20A, 125V, White-1
  • Amperage: 20 A
  • Applications: Commercial
  • Country of Origin: USA
  • Depth: 0.78 in
  • Dielectric Strength: 2000 V
  • Height: 2.635 in
  • Indoor/Outdoor: Outdoor
  • IsSustainable: No
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Straight Blade, Weather-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.322 in
  • Wire Size: 10 AWG
Weather-Resistant Heavy-Duty Spec Grade Duplex Receptacle Back and Side-Wire 20A 125V
QTY
  • Product Description
  • Features
  • Specifications
Weather-Resistant Heavy-Duty Spec Grade Duplex Receptacle Back and Side-Wire 20A 125V
  • Features
    • Auto-ground clip assures positive ground.
    • WR marking on face as required by UL Standard.
    • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
    • Strap tabs wrap around face to prevent strap from separating from face and back body.
    • Tri-drive brass terminal screws.
    • Internal screw-pressure-plate back and side wire capability.
    • Two back wire holes for more wiring flexibility.
    • Heavy-duty, brass strap for added strength and ground conductivity.
    • UV-resistant nylon face for longer life under adverse environmental conditions.
    • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
    • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
    • .032 inch thick brass triple-wipe power contacts for lasting retention.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 0.78 in
    • Color : White
    • Height : 2.635 in
    • Width : 1.322 in
    • Product Line : Pass & Seymour
    • Standard : UL498
    • Country of Origin : United States
    • Amperage : 20.0 A
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Number of Wires : 3.0
    • Features : Weatherproof
    • Wire Size : 14 - 10 AWG
    • Indoor/Outdoor : Outdoor
    • Wall Plate Included : No
    • Number of Receptacles : 2.0
    • Standard : CSA C22.2 No. 42
    • Outlet Type : Straight Blade
    • Number of Poles : Double Pole
    • Application Sector : Commercial
    • Features : Brass Mounting Strap
    • NEMA Configuration Code : 5-20R
    • Outlet Type : Weather-Resistant
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-60°C
    • Dielectric Strength : Withstands 2000V minimum
    • Wire Connection Type : Internal Pressure Plates
    • Environmental Conditions : Flammability: UL94 V2
    • Special Features : Auto-ground clip assures positive ground. WR marking on face as required by UL Standard. Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations. Strap tabs wrap around face to prevent strap from separating from face and back body. Tri-drive brass terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility. Heavy-duty, brass strap for added strength and ground conductivity. UV-resistant nylon face for longer life under adverse environmental conditions. Two drive screws anchor strap to back body and face where abrupt removal torque is strongest. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. .032 inch thick brass triple-wipe power contacts for lasting retention.
