PASS & SEYMOUR

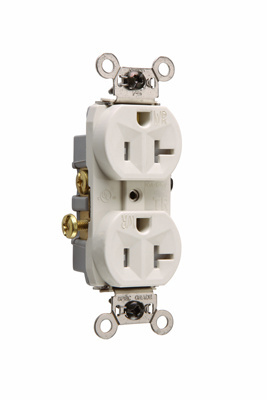

Weather-Resistant Commercial Grade Receptacles, Light Almond

WR DUP RECP TAMP RES 20A/125V

PSSWR20TRLA WR20TRLA 785007242560
0.00 / EACH
http://schema.org/OutOfStock
Mayer-Weather-Resistant Commercial Grade Receptacles, Light Almond-1
  • Amperage: 20 A
  • Connection Type: Side Wire
  • Country of Origin: Mexico
  • Dielectric Strength: 1500 V
  • NEMA: 5-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Temperature Rating: 30 °C, -40 °C, 50 °C
  • Voltage: 125.0 V
  • Wire Size: 10 AWG, 14 AWG
Tamper-Resistant, Weather-Resistant Commercial Grade Receptacles, 20A, 125As, WR20TRI
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant, Weather-Resistant Commercial Grade Receptacles, 20A, 125As, WR20TRI
  • Features
    • Auto-ground clip assures positive ground.
    • WR marking on face as required by UL Standard.
    • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
    • Strap tabs wrap around face to prevent strap from separating from face and back body.
    • Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
    • Heavy-duty, brass strap for added strength and ground conductivity."
    • UV-resistant nylon face for longer life under adverse environmental conditions.
    • Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
    • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring."
    • .032 inch thick brass triple-wipe power contacts for lasting retention.
    • For covering patents, see www.legrand.us/patents."
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Certifications
    • cULus Listed
  • Specifications
    • Country of Origin : MX
    • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
    • Amperage : 20 A
    • NEMA Rating : 5-20R
    • Voltage : 125.0 V
    • Number of Wires : 3.0
    • Wire Size : #14 - #10
    • Connection : Side wire
    • Application Sector : Commercial
    • Number of Poles : Double Pole
    • Standard : UL498, CSA C22.2 No. 42
    • Environmental Conditions : Flammability: UL94 V2
    • Dielectric Strength : Withstands 1500V minimum
    • Special Features : Auto-ground clip assures positive ground. WR marking on face as required by UL Standard. Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations. Strap tabs wrap around face to prevent strap from separating from face and back body. Tri-drive brass terminal screws. Side wire capability. Heavy-duty, brass strap for added strength and ground conductivity. UV-resistant nylon face for longer life under adverse environmental conditions. Two drive screws anchor strap to back body and face where abrupt removal torque is strongest. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Specifications
    • Product Line : Pass & Seymour
