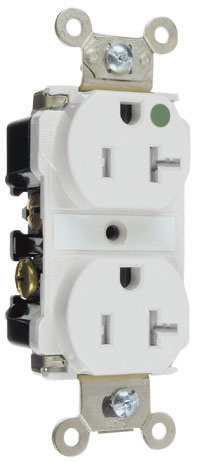

20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White

TAMPR RESIST HOSP RECP 20A 125

PSSTR63HW TR63-HW 785007145182
42.65 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White-1
  • Amperage: 20 A
  • Applications: Commercial, Healthcare
  • Country of Origin: Mexico
  • Depth: 0.9 in
  • Dielectric Strength: 2000 V
  • Finish: Matte
  • Height: 2.75 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Hospital Grade, Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.625 in
  • Wire Size: 10 AWG
Tamper-Resistant Hospital Grade Receptacles, Back and Side Wire, 20A, 125V
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant Hospital Grade Receptacles, Back and Side Wire, 20A, 125V
  • Features
    • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
    • AC receptacles available in 15 and 20 Amp, 125V
    • Extra heavy-duty brass, one-piece mounting strap with integral ground.
    • One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.
    • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
    • Impact-resistant nylon face and back body.
    • Two drive screws anchor strap to back body and face.
    • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
    • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 0.9 in
    • Standard : UL498
    • Height : 2.75 in
    • Width : 1.625 in
    • Amperage : 20.0 A
    • Country of Origin : Mexico
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Is Tamper-Resistant : Yes
    • Number of Receptacles : 2.0
    • Standard : CSA C22.2 No. 42
    • Outlet Type : Hospital Grade
    • Number of Poles : Double Pole
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Features : Brass Mounting Strap
    • NEMA Configuration Code : 5-20R
    • Connection Location : Back and Side
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-60°C
    • Dielectric Strength : Withstands 2000V minimum
